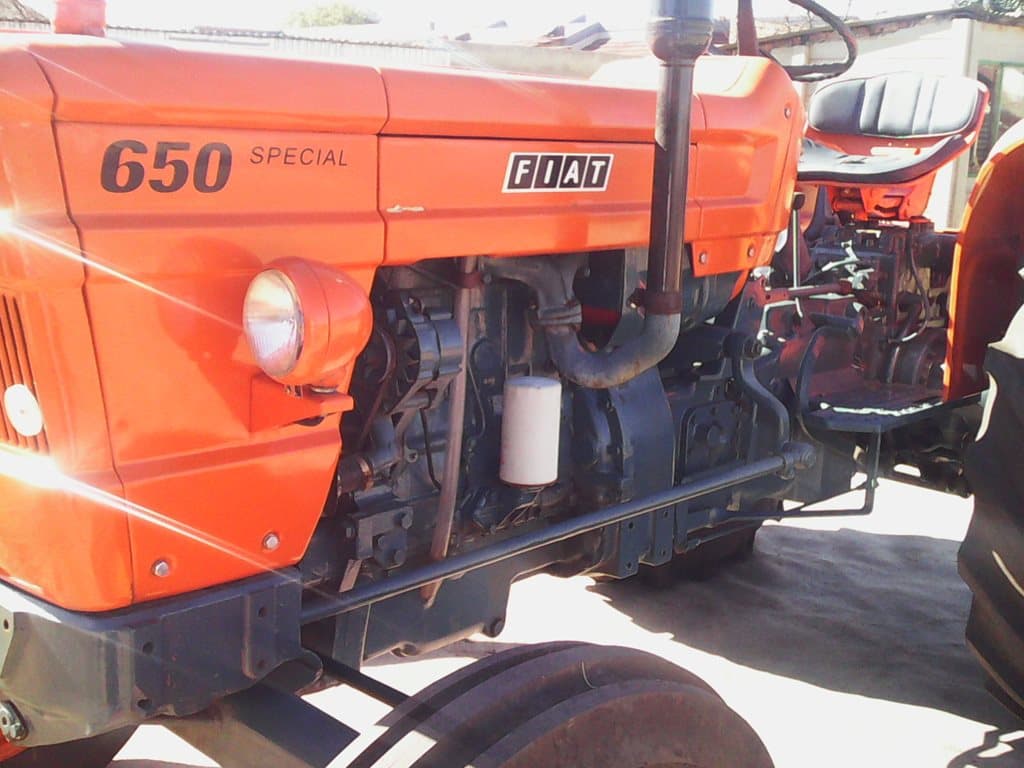

Fiat 650S Special

Last Updated: June 2024

Overview

The Fiat 650S Special is a utility tractor equipped with a 4-wheel drive (4WD) system, well-suited for a range of tasks on a farm or landholding. It features a Fiat OM CN3 3-cylinder, liquid-cooled diesel engine with a displacement of 225.84 cubic inches, capable of outputting 70 horsepower at a rated RPM of 2200. The tractor is available with both manual steering and an optional power steering upgrade. It sports a partially synchronized transmission system with a creeper option, offering up to 14 forward and 4 reverse gears. The tractor has a standard wheelbase of 93.3 inches for a stable and comfortable ride, with a length of 142.3 inches. Heights vary based on the model, with the steering wheel reaching a height of 69.8 inches and the hood standing at 63 inches tall. The weight of the tractor differs between the 2-wheel drive and 4-wheel drive models, starting at 6371 pounds for the 2WD version and increasing to 7165 pounds for the 4WD variant. The 650S Special also incorporates a Category II hitch system and an open center hydraulic system, with further specifications regarding the hitch type, lift capacity, and PTO speed being unspecified.
Show more...

Key Specifications

Category: Utility

Power Output: 70

Transmission: Partially synchronized, Creeper

Drive Type: 4WD

Operating Weight: 6371 lbs (2WD), 7165 lbs (4WD)

Fuel Type: Diesel

Fiat 650S Special vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Operating Weight
Above Average
Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
OM CN3
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Compression
Cylinders
3
Displacement (ci)
225.84
Bore (in)
4.33
Stroke (in)
5.12
Rated RPM
2200
Power Output (hp)
70

Transmission

Type
Partially synchronized, Creeper
Forward Gears
-
Reverse Gears
-
Total Gears
14 forward and 4 reverse

Dimensions

Length (in)
142.3
Width (in)
-
Height (in)
69.8 (steering wheel), 63 (hood)
Operating Weight (lb)
6371 lbs (2WD), 7165 lbs (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
Manual, Power Optional
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag), Optional tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
