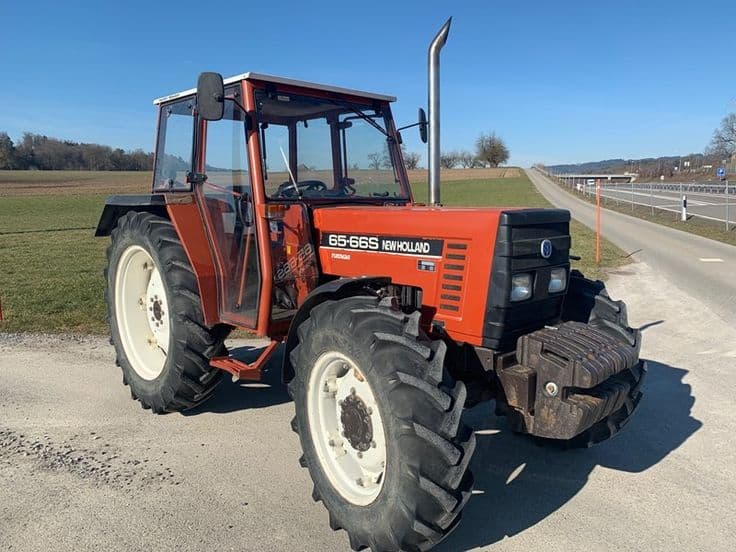

Fiat 65-66S

Last Updated: June 2024

Overview

The Fiat 65-66S is a 2WD utility tractor that was tailored to meet the needs of small-scale farms and various utility works. It is powered by an Iveco 8045.05 diesel engine, which is liquid-cooled and naturally aspirated, boasting an output of 64.3 hp and a displacement of 220.5 cubic inches. With a power steering system, the tractor offers ease of operation and maneuverability. It comes with a multi-gear transmission setup, including 12 speeds with sync shuttle and a creep option that expands it to 20 forward and 12 reverse gears, accommodating various working conditions. The tractor's versatile wheelbase measures 90.2 inches for the standard 2WD variant and 88.5 inches for optional 4WD models. The tractor's length ranges slightly between the 2WD (134.5 inches) and 4WD (134.3 inches) configurations, demonstrating a compact and nimble design. While it doesn't offer a four-wheel drive, this model provides adequate weight and balance for effective traction in various farm tasks. Details regarding the hydraulic system, PTO speeds, and hitch capabilities were not provided, but as a utility tractor, it can be expected to feature standard components suitable for common agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 64.3

Transmission: Gear with sync shuttle and creeper options

Drive Type: 2WD

Operating Weight: 5159 (2WD), 5644 (4WD)

Fuel Type: Diesel

Fiat 65-66S vs. Similar Tractors

Power Output
Average
Greater than 60% of similar tractors.
Operating Weight
Above Average
Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
8045.05
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
220.5
Bore (in)
3.94
Stroke (in)
4.53
Rated RPM
2500
Power Output (hp)
64.3

Transmission

Type
Gear with sync shuttle and creeper options
Forward Gears
20 (12 regular + 8 creeper)
Reverse Gears
12 (4 regular + 8 creeper)
Total Gears
-

Dimensions

Length (in)
134.3 (4WD), 134.5 (2WD)
Width (in)
-
Height (in)
95.1 (ROPS), 91.7 (Cab)
Operating Weight (lb)
5159 (2WD), 5644 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
Unknown (but standardized size 14.9/13-28 suggested)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
