Fiat 65-66

Last Updated: June 2024

Overview

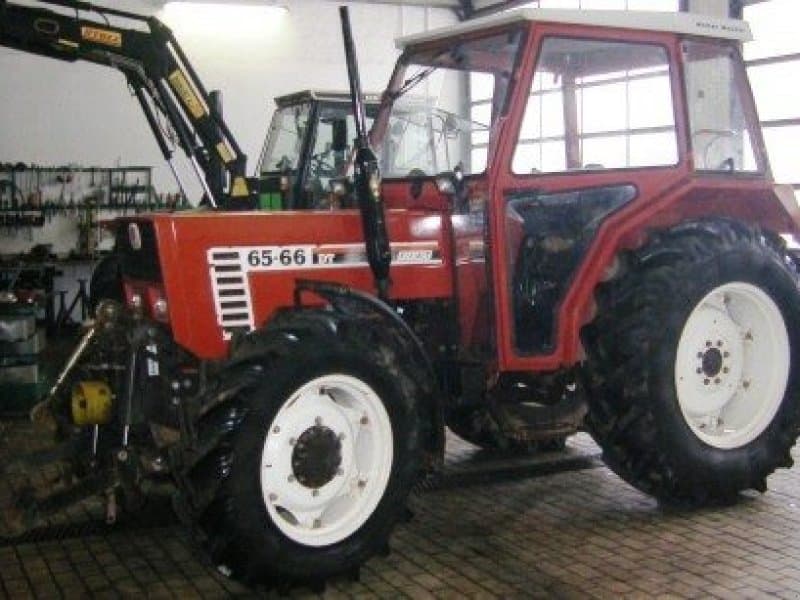

The Fiat 65-66 is a utility tractor which was manufactured featuring a 4x2 2WD chassis configuration. It is powered by an Iveco 8045.06 diesel engine rated at 64.1 horsepower and 215.0 Nm of torque at 1400 RPM. The tractor operates with a 12-speed transmission that provides 12 forward gears and 4 reverse gears, and it has a wheelbase of 90.55 inches. The engine's displacement stands at 220.5 cubic inches, with a bore and stroke of 3.94x4.53 inches. Steering is made easier with a power steering system. Rolling on a set of agricultural tires, 7.50-16 in the front and 14.9R30 in the rear, the Fiat 65-66 is designed to handle a variety of tasks common to utility tractors. The tractor has dimensions of 158 inches in length, 99 inches in height, and a weight of 6,692 pounds. However, specific information such as the type of transmission, PTO details, hydraulic system, hitch specifications, and additional features were not provided.
Show more...

Key Specifications

Category: Utility

Power Output: 64.1

Drive Type: 2WD

Operating Weight: 6692

Fuel Type: Diesel

Fiat 65-66 vs. Similar Tractors

Power Output
Average
Greater than 60% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
8045.06
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
220.5
Bore (in)
3.94
Stroke (in)
4.53
Rated RPM
2500
Power Output (hp)
64.1

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
158
Width (in)
-
Height (in)
99
Operating Weight (lb)
6692

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
30
Rear Tire Width (in)
14.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
