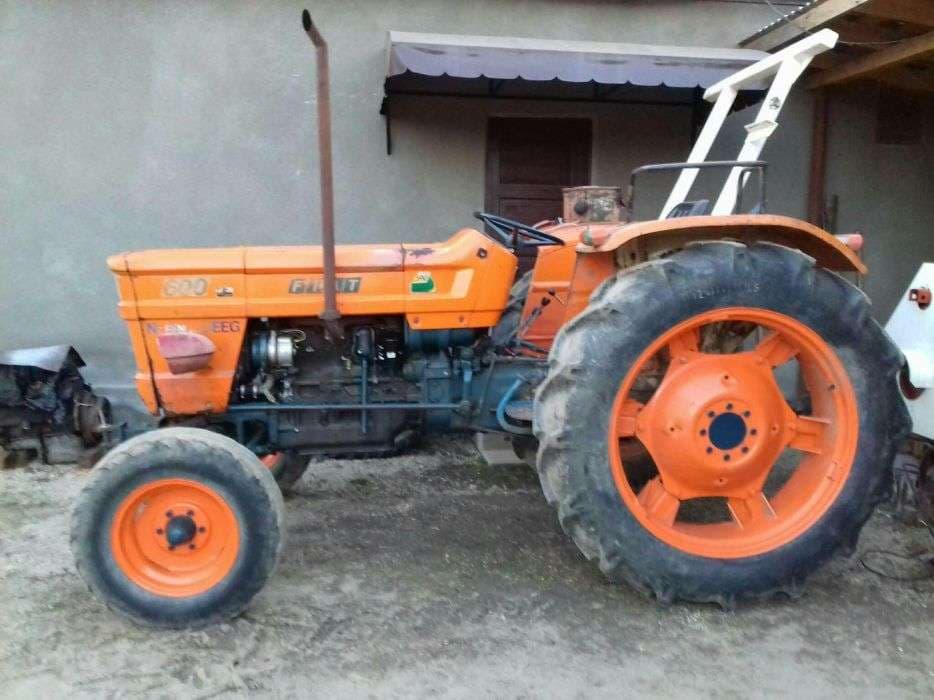

Fiat 600

Last Updated: June 2024

Overview

The Fiat 600 is a utility tractor known for its functionality and simplicity. It comes with the option of 2WD or 4WD configurations, with standard manual steering and an option for power steering. The Fiat 600 is designed with an operator-friendly open station and features the Fiat 8045 engine with 4 cylinders, a liquid cooling system, and diesel fuel type with direct injection and thermostart pre-heating for improved cold starts. The 60 hp engine is robust and operates at 2400 RPM, designed to handle a variety of tasks on the farm. Available transmissions include a standard gear type with 8 forward and 2 reverse gears and an optional creeper giving it 12 forward and 3 reverse gears, the latter providing slow speeds for specialized tasks. The tractor's weight varies from 4620 pounds in its 2WD form to 5137 pounds when equipped with 4WD, aiding in traction and stability. The ground clearance of 20 inches allows for maneuverability over uneven terrain, and the standard tire configurations offer flexibility for different working conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: Gear, Creeper Optional

Drive Type: 4WD Optional, 2WD Standard

Operating Weight: 4620 2WD, 5137 4WD

Fuel Type: Diesel

Fiat 600 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
8045
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
210.8
Bore (in)
3.94
Stroke (in)
4.33
Rated RPM
2400
Power Output (hp)
60

Transmission

Type
Gear, Creeper Optional
Forward Gears
8 Standard, 12 with Creeper
Reverse Gears
2 Standard, 3 with Creeper
Total Gears
-

Dimensions

Length (in)
125 2WD, 128 4WD
Width (in)
-
Height (in)
-
Operating Weight (lb)
4620 2WD, 5137 4WD

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD Optional, 2WD Standard
Steering Type
Manual, Power Optional
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
12 Volts
Brake Type
-
Hydraulic System Type
Open Center
