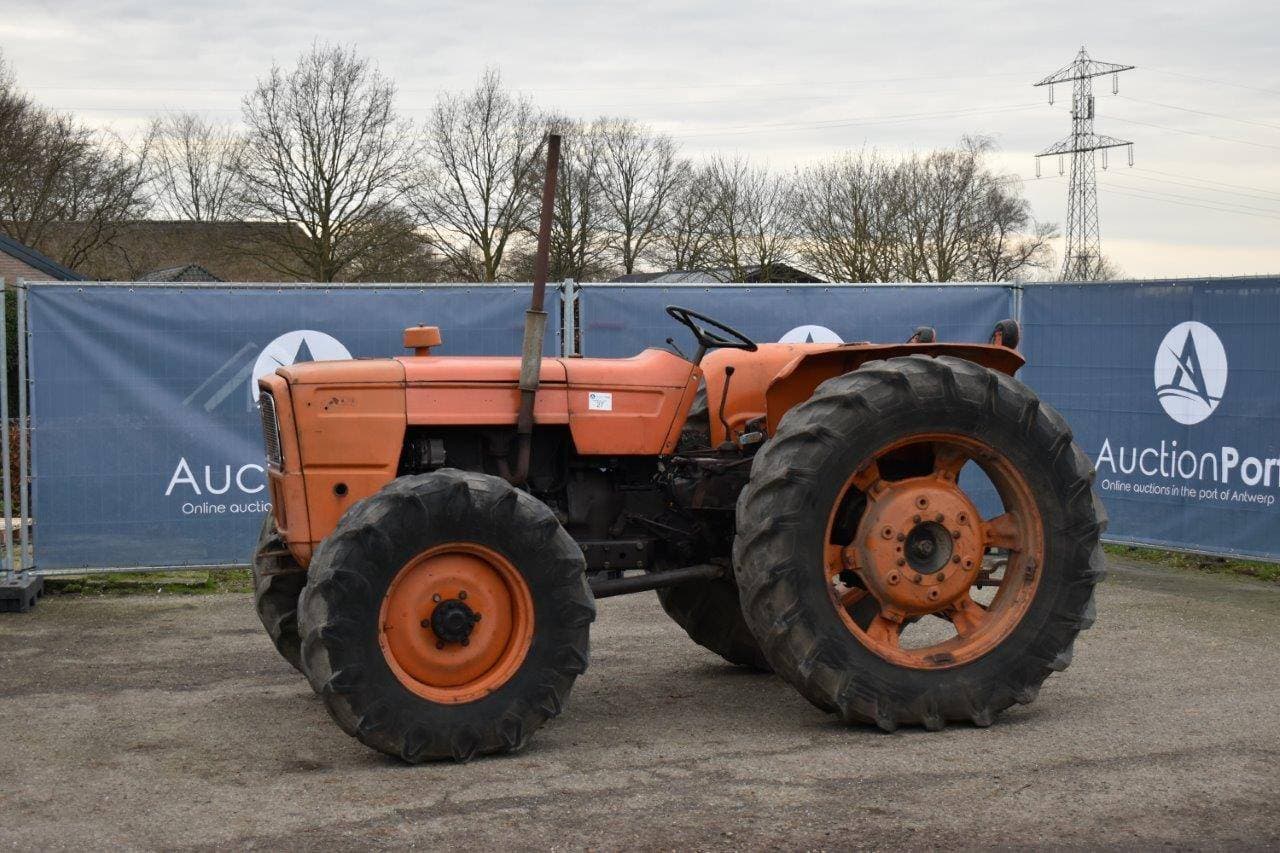

Fiat 586

Last Updated: June 2024

Overview

The Fiat 586 is a utility tractor that was designed for an array of agricultural tasks. It features a 4x4 MFWD 4WD chassis which provides enhanced traction and stability, making it suitable for varied terrain. At the heart of this tractor is a Fiat diesel engine with 3 cylinders that ensures reliability and efficiency. The engine's cooling system is liquid-based, allowing for optimal thermal regulation during heavy operation. It has a displacement of 168 cubic inches providing a balance between power and fuel economy. The transmission system supports 12 forward gears and 4 reverse gears, which allows for versatility in speed and power delivery for different tasks. The tractor operates on agriculture-type tires with the front tires measuring 11.2 inches in width and 24 inches in diameter, and the rear tires measuring 16.9 inches wide and 30 inches in diameter, augmenting its ability to work well in soft, uneven, or plowed fields. The weight of the tractor is 5,450 lbs, highlighting its robust build and capability to handle substantial loads. The hitch system is categorized as I/II; however, specific details about the hitch types and capacities are not provided in the data. The hydraulic system follows an open-center type, which is typically responsive and simple to maintain. Key operational features such as steering type, engine power output, and PTO details are not provided in the data. The narrative omits any discussion of optional features or additional specifications that were not provided or remain unidentified.
Show more...

Key Specifications

Category: Utility

Drive Type: 4WD

Operating Weight: 5450

Fuel Type: Diesel

Fiat 586 vs. Similar Tractors

Operating Weight
Average
Greater than 45% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
168
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
-

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
5450

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
11.2
Rear Tire Diameter (in)
30
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculture
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I/II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open center
