Fiat 580

Last Updated: June 2024

Overview

The Fiat 580 is a utility tractor known for its versatility and ability to perform well under different agricultural roles. The tractor is equipped with a Fiat 8035 diesel engine with an engine displacement of 167.8 cubic inches and engine power of 57.2 horsepower, operating at 2700 RPM. It has a 4x2 2WD chassis and offers a range of transmission options including 8-speeds partially synchronized as well as creeper and shuttle mechanisms, facilitating up to 16 forward and 4 reverse gears. In terms of body specifications, the Fiat 580 has a 2WD wheelbase of 85.5 inches and a length of 130.8 inches. These dimensions, coupled with a base operating weight ranging from 5149 to 5766 pounds, make the tractor a robust and substantial piece of machinery suitable for a variety of tasks in the agricultural sector.

Key Specifications

Category: Utility

Power Output: 57.2

Transmission: Partially synchronized, mechanical shuttle, creeper

Drive Type: 2WD

Operating Weight: 5149 to 5766

Fuel Type: Diesel

Image Gallery

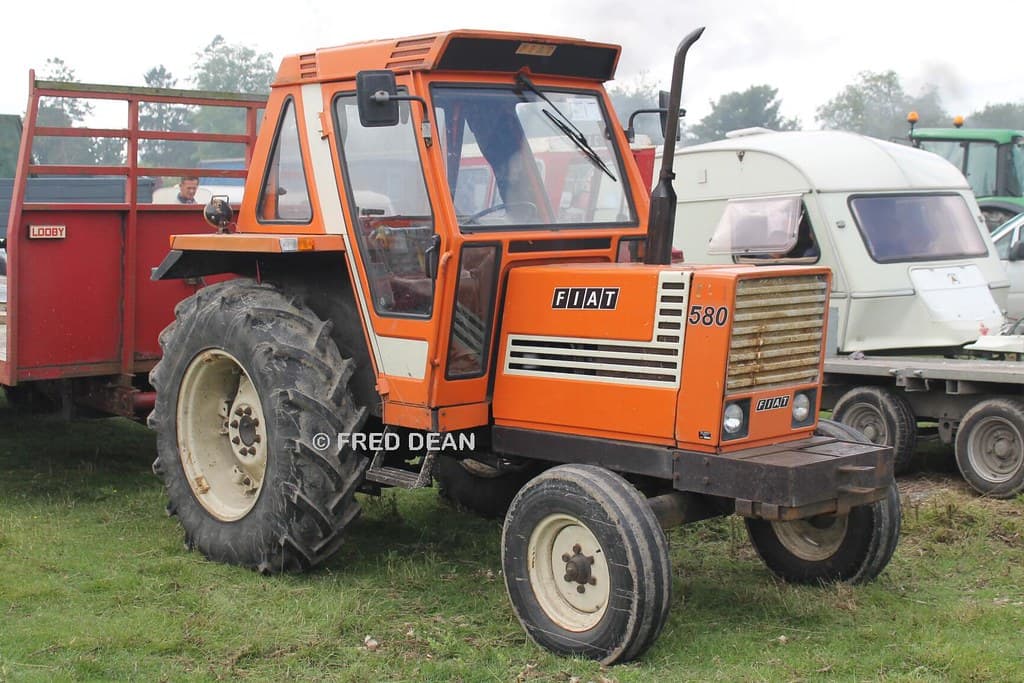

Fiat 580 Tractor

Fiat 580 vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Operating Weight

Above Average

Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer: Fiat
Model: 8035
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural
Cylinders: 3
Displacement (ci): 167.8
Bore (in): 4.06
Stroke (in): 4.33
Rated RPM: 2700
Power Output (hp): 57.2

Transmission

Type: Partially synchronized, mechanical shuttle, creeper
Forward Gears: 16
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 130.8
Width (in): -
Height (in): -
Operating Weight (lb): 5149 to 5766

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
