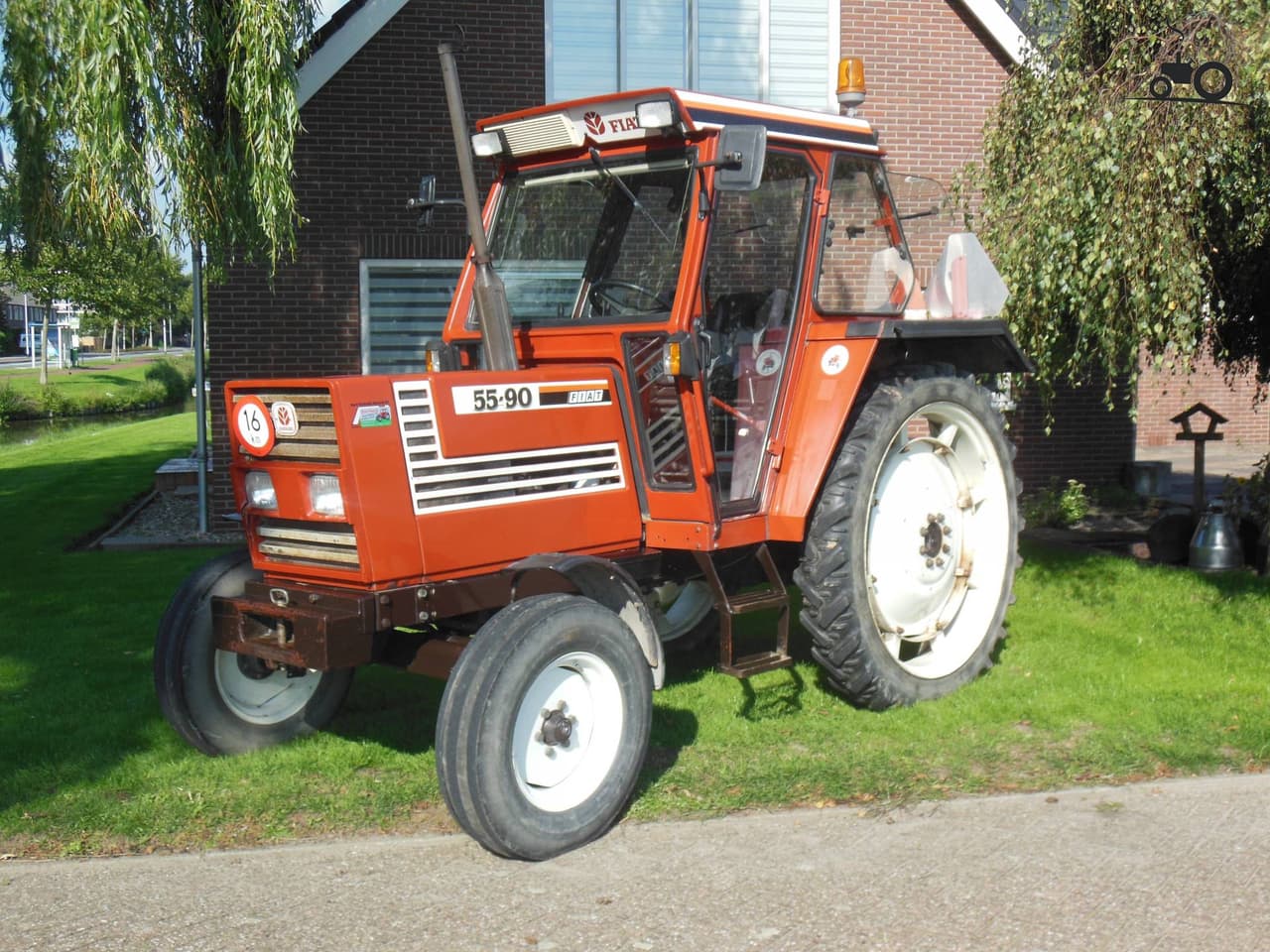

Fiat 55-90

Last Updated: June 2024

Overview

The Fiat 55-90 is a utility tractor, designed for a variety of tasks on the farm. Its chassis configuration reflects its 2WD design, involving a four-wheel structure with two wheels driven. Power steering is installed to aid in handling and maneuverability. This tractor is equipped with a Fiat 8035.06 diesel engine which is liquid-cooled and can deliver 55 horsepower. The engine operates at a rated speed of 2500 RPM, with a 165.4 cubic inch displacement. The Fiat 55-90's transmission offers versatility through its 12 forward and 4 reverse speeds in its shuttle and creeper configurations, summing up to 20 forward and 8 reverse gears when considering all the configurations mentioned. It sports a cab operator station, ensuring protection and comfort for the operator. As a utility tractor, it's well-suited for various farming duties, including but not limited to cultivation, towing, and lifting operations.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Transmission: Shuttle, Creeper

Drive Type: 2WD

Operating Weight: 6526 (2WD), 6923 (4WD)

Fuel Type: Diesel

Fiat 55-90 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Above Average
Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
8035.06
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
165.4
Bore (in)
3.94
Stroke (in)
4.53
Rated RPM
2500
Power Output (hp)
55

Transmission

Type
Shuttle, Creeper
Forward Gears
12
Reverse Gears
4
Total Gears
20

Dimensions

Length (in)
132.3
Width (in)
-
Height (in)
98.4 (2WD cab), 99.6 (4WD cab)
Operating Weight (lb)
6526 (2WD), 6923 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
