Fiat 540

Last Updated: June 2024

Overview

The Fiat 540 is a tractor designed for versatile agricultural tasks. Depending on its configuration, it can either be in a 2WD or 4WD chassis, catering to different terrain and usage scenarios. With a Fiat-manufactured diesel engine, this model offers 54 horsepower with a displacement size of 158.16 cubic inches. The engine operates at a rated RPM of 2600 and features liquid cooling to manage temperatures during prolonged work periods. The transmission is a basic gear system with 8 forward and 2 reverse gears. Agricultural tires come as standard with widths of 7.50 inches in the front and 12.4 inches in the rear, supporting typical farming operations. With a wheelbase of 76.8 inches, the Fiat 540 has a length of 121.7 inches. The operating weights for the 2WD and 4WD versions are 4630 pounds and 5181 pounds, respectively. It also includes a rear three-point hitch, presumably in Category 2/1. Details regarding the tractor's exact dimensions, hydraulic system, breaks, and additional features remain unspecified. Designed for practicality, this model serves as a reliable and straightforward machine for various agricultural needs.

Key Specifications

Power Output: 54

Transmission: Gear

Drive Type: Either 2WD or 4WD (both options available)

Operating Weight: 4630 (2WD) or 5181 (4WD)

Fuel Type: Diesel

Image Gallery

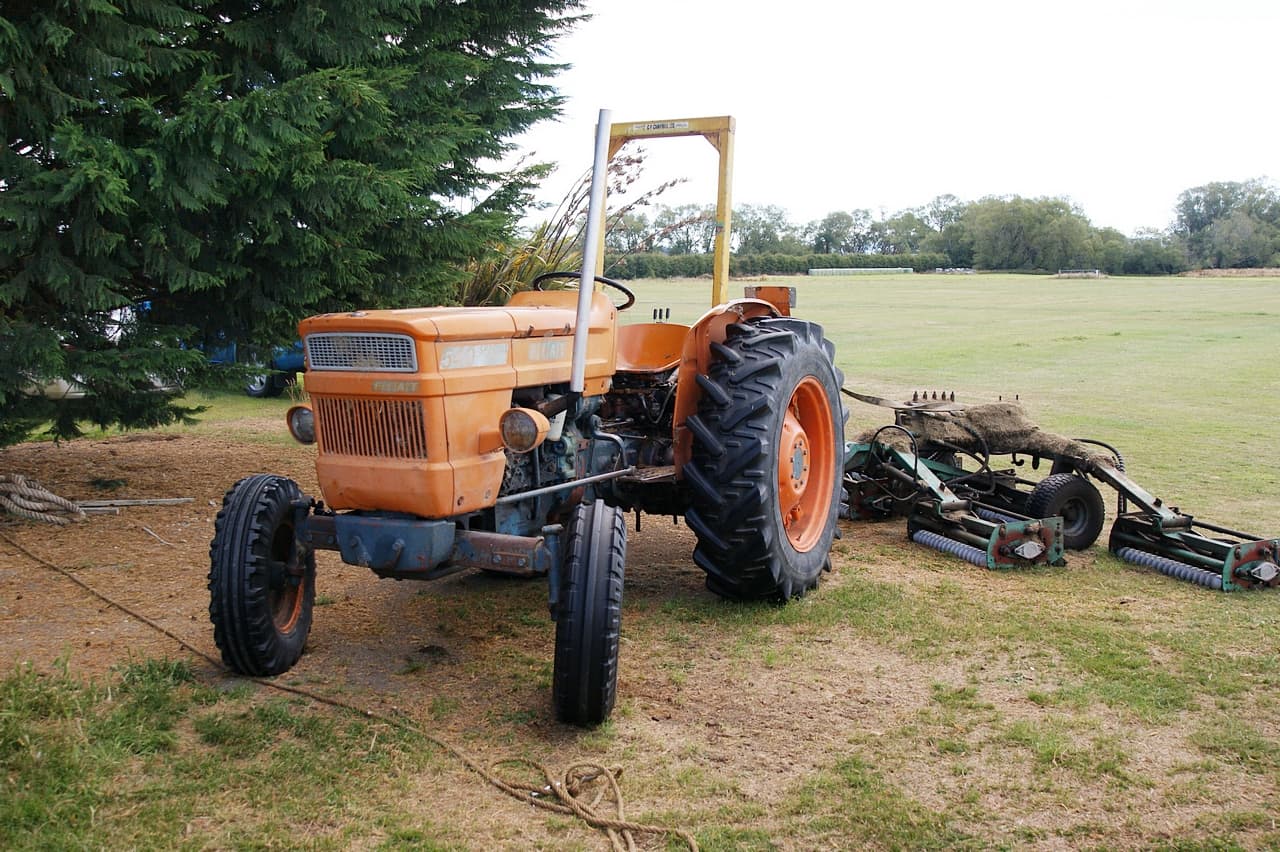

Fiat 540 Tractor

Technical Specifications

Engine

Manufacturer: Fiat
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (assuming because turbocharged or supercharged was not specified)
Cylinders: 3
Displacement (ci): 158.16
Bore (in): 3.94
Stroke (in): 4.33
Rated RPM: 2600
Power Output (hp): 54

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 121.7
Width (in): -
Height (in): -
Operating Weight (lb): 4630 (2WD) or 5181 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 (assuming based on the weight difference provided for 2WD and 4WD options)
Drive Type: Either 2WD or 4WD (both options available)
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 7.5
Rear Tire Diameter (in): -
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): Unknown (assumed to be the standard sizes for the provided tire sizes if not explicitly stated)
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (assuming based on the Rear Type II/I designation)
Hitch Category: Category 2/1 (interpreting "II/I" from "Rear Type")
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
