Fiat 500

Last Updated: June 2024

Overview

The Fiat 500 is a utility tractor that was likely produced with both 2WD and 4WD variants. It is powered by a Fiat 8035 3-cylinder diesel engine with a 158.16 cubic inch displacement and a 50 hp output. The liquid-cooled engine operates at 2600 rated RPM and exhibits a compression ratio of 17:1. Transmission comprises 8 forward and 2 reverse gears. This tractor's manual steering can be optionally upgraded to power steering. The variation in wheelbases, with 75.6 inches for 2WD and 76.8 inches for 4WD, as well as the weight range from 4023 to 4961 pounds, suggest different configurations to suit various farming needs. The tractor's dimensions include a length of 119 inches (2WD) or 120.7 inches (4WD), and a height of either 56.3 inches for the hood or 92.3 inches for the cab version. The tires provided on this model are agricultural, with standard sizes indicated for different configurations. However, details regarding tire diameters and widths are not specified. The Fiat 500 seems to accommodate varied farming tasks and appears to be a versatile workhorse for its time.

Key Specifications

Category: Utility

Power Output: 50

Drive Type: Optional 4WD and 2WD

Operating Weight: 4023 to 4961

Fuel Type: Diesel

Image Gallery

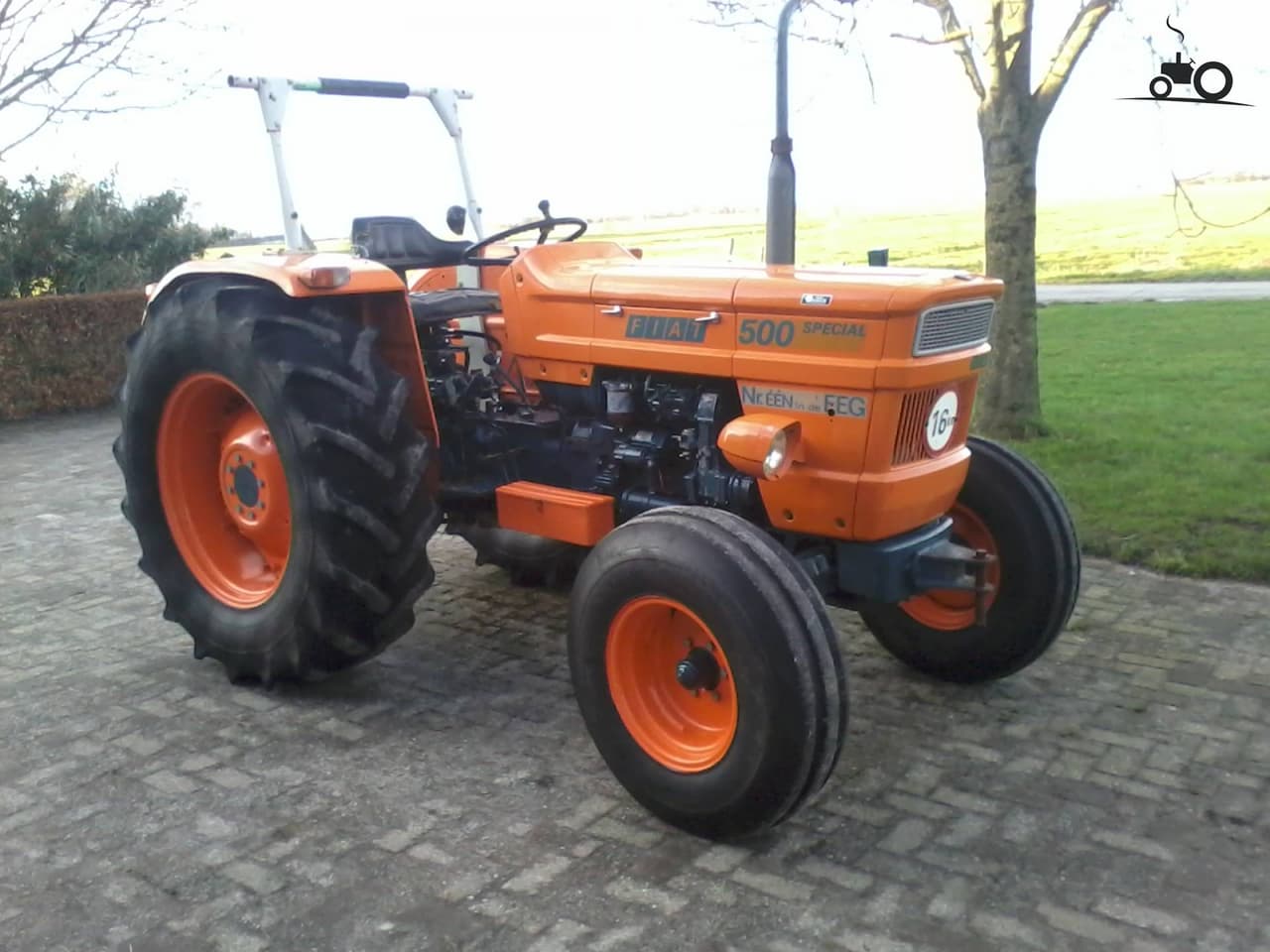

Fiat 500 Tractor

Fiat 500 vs. Similar Tractors

Power Output

Average

Greater than 49% of similar tractors.

Operating Weight

Above Average

Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer: Fiat
Model: 8035
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 158.16
Bore (in): 3.94
Stroke (in): 4.33
Rated RPM: 2600
Power Output (hp): 50

Transmission

Type: -
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 119 (2WD), 120.7 (4WD)
Width (in): -
Height (in): 56.3 (Hood), 92.3 (Cab)
Operating Weight (lb): 4023 to 4961

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: Optional 4WD and 2WD
Steering Type: Manual with Power as an Option
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Three-Point Hitch Categories II/I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
