Fiat 50-66S

Last Updated: June 2024

Overview

The Fiat 50-66S is a utility tractor powered by an Iveco 3-cylinder diesel engine with a displacement of 165.4 cubic inches and a power output of 49.4 horsepower. It operates at a rated RPM of 2500 and offers a 12-speed gear transmission system aided by power steering for efficient maneuverability. This tractor is available in a 4x2 2WD chassis, with a wheelbase of 78.7 inches for the 2WD version and 74.9 inches for the 4WD version. Despite the discrepancies in wheels and weight between the 2-wheel-drive and 4-wheel-drive models, both versions possess the ruggedness expected of utility tractors and can accommodate a variety of agricultural tasks. Specific details about the PTO speeds, hydraulic system, and brake type are not stated, but these components contribute to the tractor's functionality in diverse farm operations.

Key Specifications

Category: Utility

Power Output: 49.4

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4685 (2WD) / 5236 (4WD)

Fuel Type: Diesel

Image Gallery

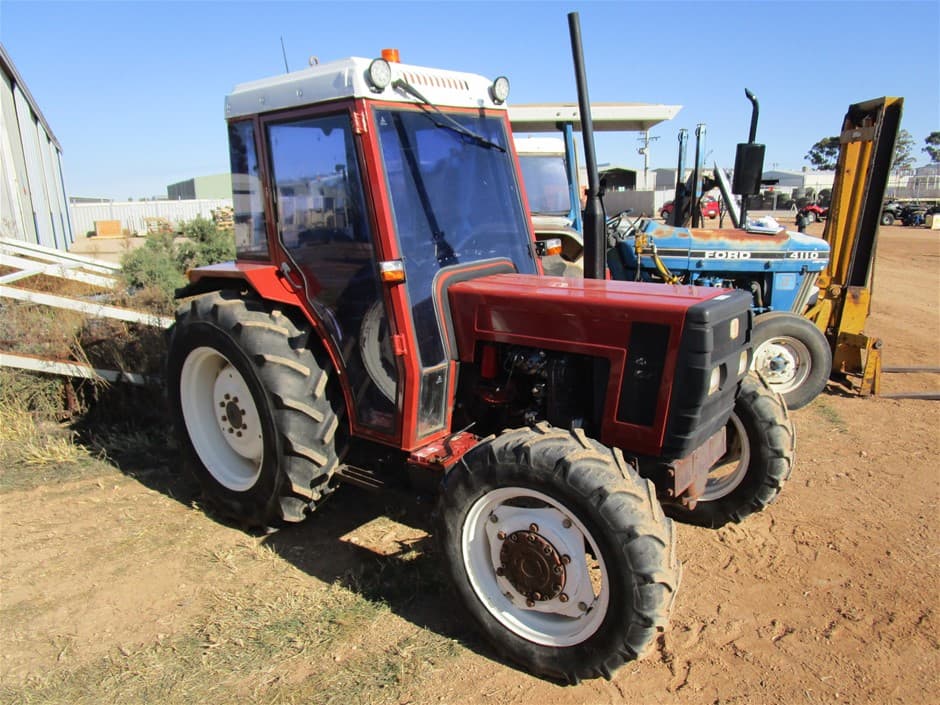

Fiat 50-66S Tractor

Fiat 50-66S vs. Similar Tractors

Power Output

Average

Greater than 47% of similar tractors.

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: 8035.06
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 165.4
Bore (in): 3.94
Stroke (in): 4.53
Rated RPM: 2500
Power Output (hp): 49.4

Transmission

Type: Gear
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 117.1 (2WD) / 116.9 (4WD)
Width (in): -
Height (in): -
Operating Weight (lb): 4685 (2WD) / 5236 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
