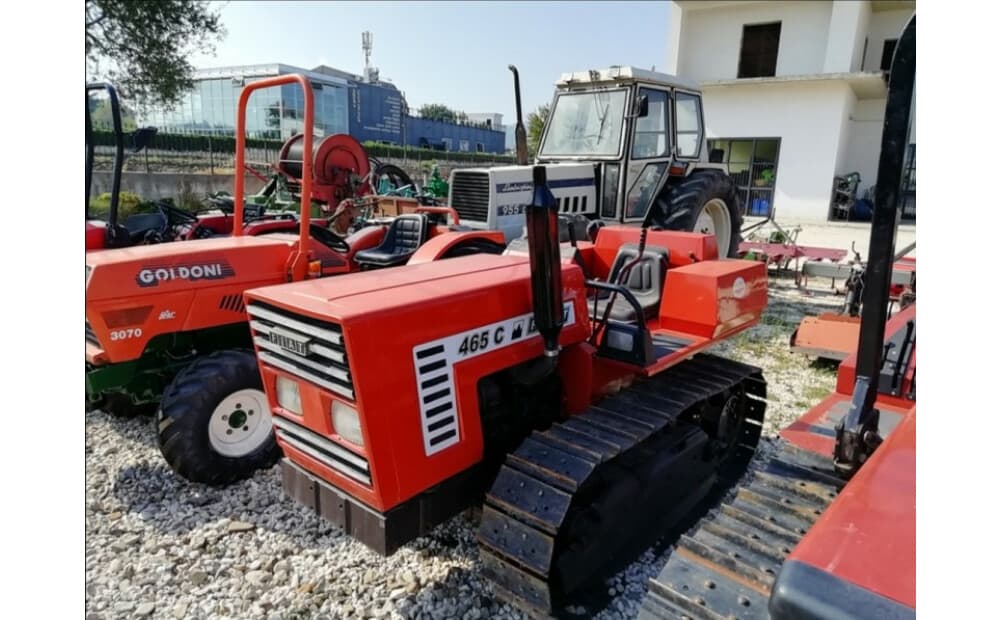

Fiat 465C

Last Updated: June 2024

Overview

The Fiat 465C is a durable agricultural crawler tractor designed for heavy-duty farming tasks. This model, well-known for its robust construction and reliable performance, features a Fiat 8035.02 diesel engine with 3 cylinders and a liquid-cooling system, ensuring efficient operation under various conditions. With a displacement of 158.2 cubic inches and a bore and stroke measurement of 3.94x4.33 inches, it generates a power output of 54 horsepower. The 465C has an 8-speed manual transmission, providing 16 forward and 8 reverse gears to handle the most demanding work. The tractor has a track chassis for exceptional stability and traction across uneven terrains and a wheelbase of 52.8 inches for good maneuverability. It measures 119.7 inches in length, 55.1 inches in width, and peaks at 86.6 inches high at the exhaust. Fully operational, it weighs 6349 pounds and maintains a ground clearance of 10 inches, with a gauge width of 43.3 inches, allowing for versatile use in various farming applications.
Show more...

Key Specifications

Category: Agricultural, Crawler

Power Output: 54

Transmission: Manual

Drive Type: Track

Operating Weight: 6349

Fuel Type: Diesel

Fiat 465C vs. Similar Tractors

Power Output
Below Average
Greater than 26% of similar tractors.
Operating Weight
Average
Greater than 41% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
8035.02
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
158.2
Bore (in)
3.94
Stroke (in)
4.33
Rated RPM
-
Power Output (hp)
54

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
119.7
Width (in)
55.1
Height (in)
86.6 (assuming this is the height to the top of the exhaust since it's the highest point provided)
Operating Weight (lb)
6349

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
Track
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
