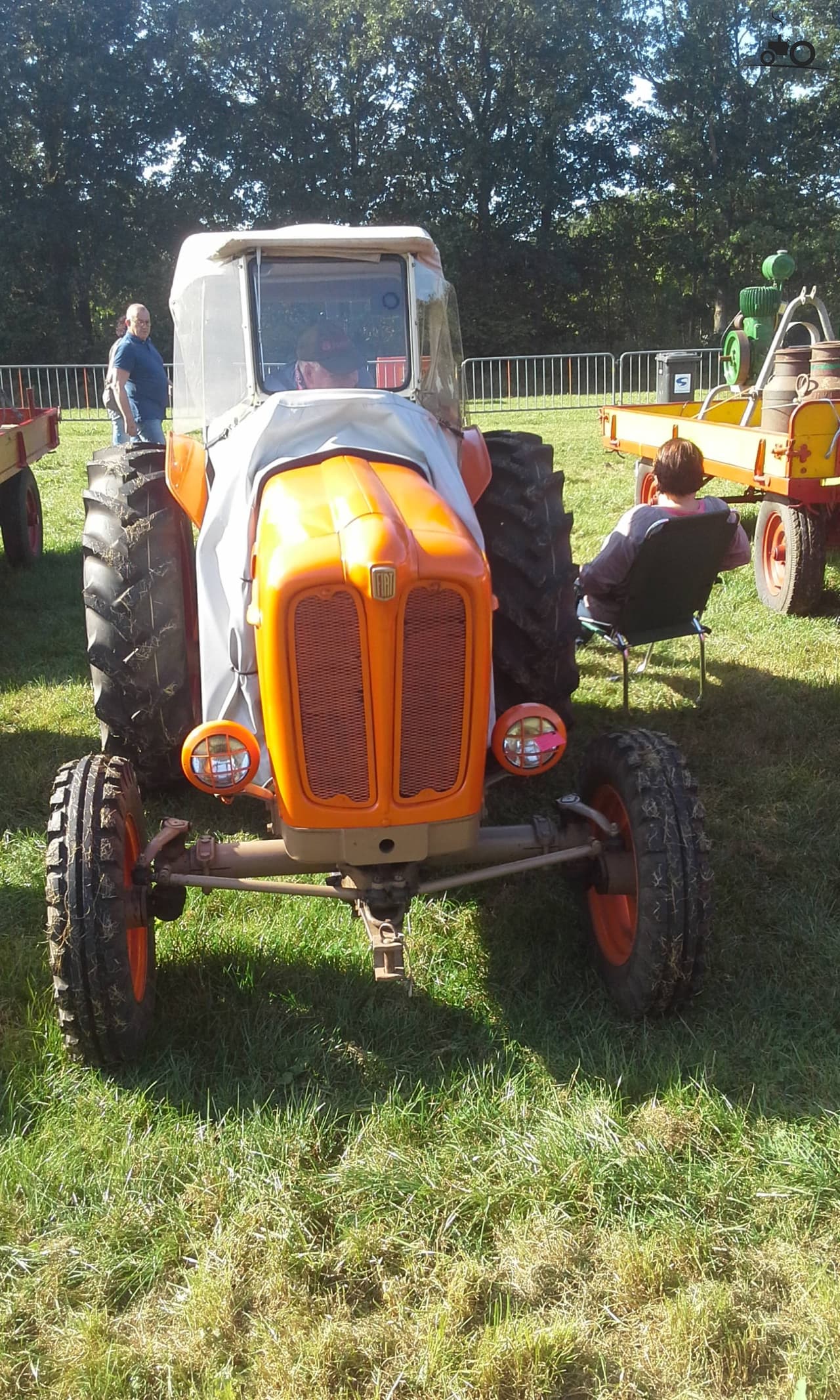

Fiat 421R

Last Updated: June 2024

Overview

The Fiat 421R is an Orchard/Vineyard tractor, noted for being particularly well-suited for use in narrow and confined spaces, common in orchards and vineyards. With a 2-wheel drive (2WD) configuration and manual steering, it offers simple, yet reliable control over the vehicle. This model comes equipped with a 6-speed gear transmission allowing for adroit management of speed and torque to navigate variable terrain. The tractor's robust Fiat engine is a liquid-cooled, 4-cylinder diesel that boasts a displacement of 138.5 cubic inches and generates a horsepower of 40 at 2300 RPM. Designed to be compact, the Fiat 421R has a length of 114.2 inches, a width of 59.1 inches, and a height of 53.2 inches, which enables easy maneuverability between rows of crops. Weighing in at 3087 lbs, this tractor was built to sustain substantial operating demands while maintaining a lighter footprint which helps to prevent soil compaction.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 40

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3087

Fuel Type: Diesel

Fiat 421R vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Operating Weight
Below Average
Greater than 14% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
138.5
Bore (in)
3.35
Stroke (in)
3.94
Rated RPM
2300
Power Output (hp)
40

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
114.2
Width (in)
59.1
Height (in)
53.2
Operating Weight (lb)
3087

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculture
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (24 volts based on starter volts data)
Brake Type
-
Hydraulic System Type
-
