Fiat 211Rb

Last Updated: June 2024

Overview

The Fiat 211Rb is an Italian-manufactured utility tractor by Fiat, primarily used during the 1960s-1970s. It features a gasoline-powered, 1.2-liter, 4-cylinder, inline, liquid-cooled engine with a power output of 20 horsepower at 2,200 RPM, housed within a 4x2 (2WD) chassis. The tractor comes equipped with a gear-type transmission with 6 forward and 2 reverse gears, manual steering, and an open operator station. It has a 15-inch front tire and a larger 24-inch rear tire, both designed for agricultural use. The Fiat 211Rb's compact design results in a length of 101.33 inches, a width of 54.5 inches, and a height of 51.24 inches, with a manageable operational weight of 1,920 lbs. It provides a rear PTO rated at 540 rpm and has a hitch lift capacity of 1,213 lbs.
Show more...

Key Specifications

Category: Utility

Power Output: 20

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1,920

Fuel Type: Gasoline

Image Gallery

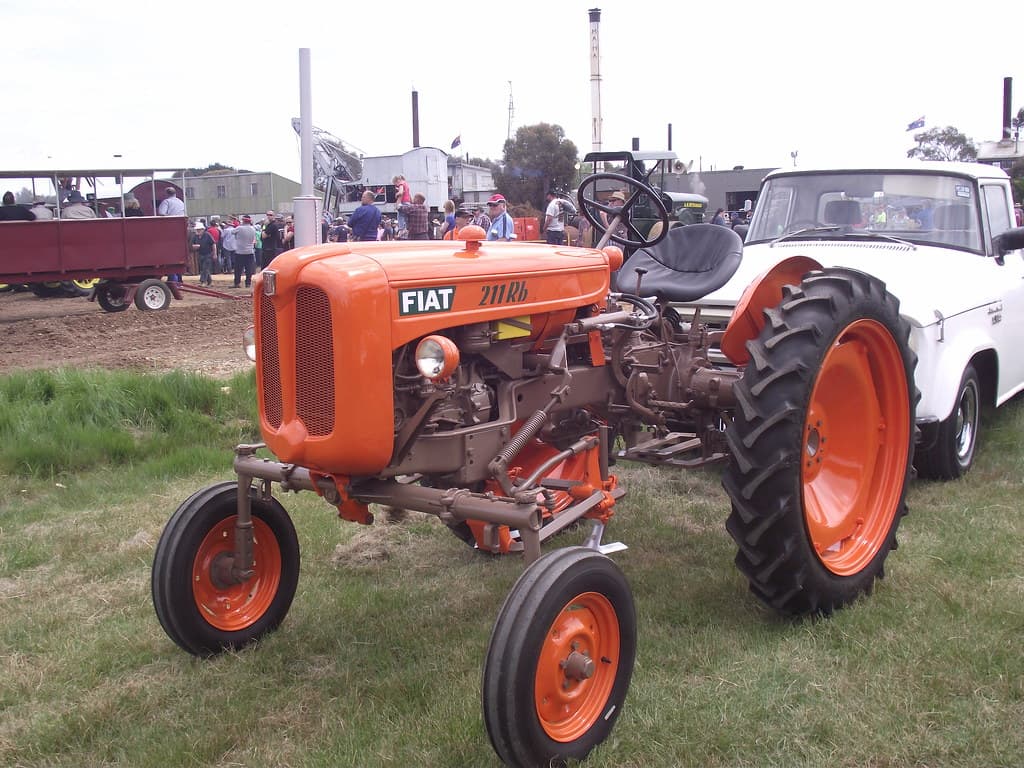

Fiat 211Rb Tractor Fiat 211Rb Tractor Fiat 211Rb Tractor Fiat 211Rb Tractor Fiat 211Rb Tractor Fiat 211Rb Tractor Fiat 211Rb Tractor Fiat 211Rb Tractor

Fiat 211Rb vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Hitch Capacity
Poor
Greater than 1% of similar tractors.
Operating Weight
Poor
Greater than 1% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
Fiat
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
74 ci
Bore (in)
2.835
Stroke (in)
2.953
Rated RPM
2200
Power Output (hp)
20

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
101.33
Width (in)
54.5
Height (in)
51.24
Operating Weight (lb)
1,920

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
15
Front Tire Width (in)
4
Rear Tire Diameter (in)
24
Rear Tire Width (in)
8
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 1
Hitch Position
-
Hitch Capacity (lb)
1,213
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
