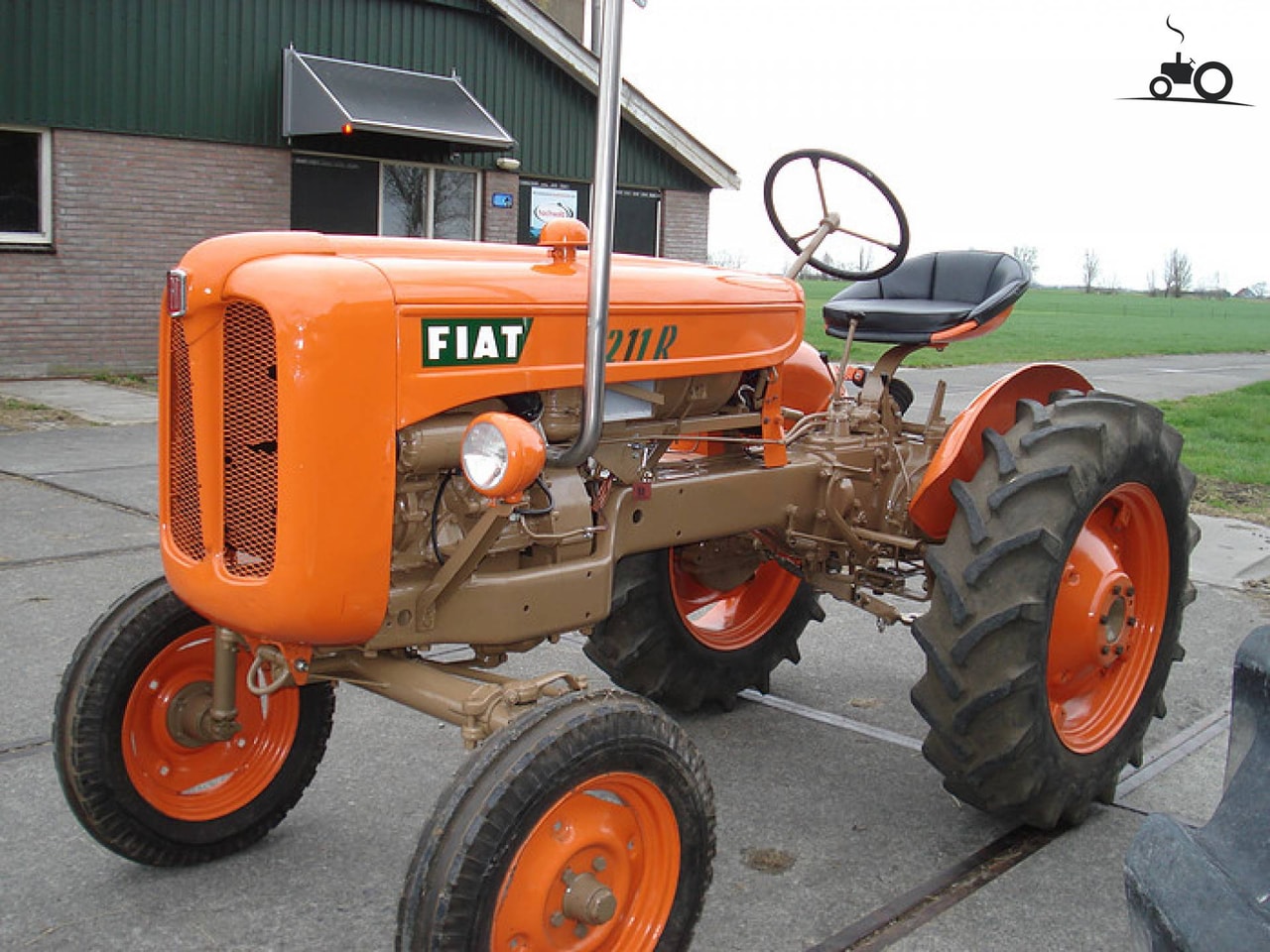

Fiat 211R

Last Updated: June 2024

Overview

The Fiat 211R is a classical utility tractor manufactured by Fiat in Argentina from the 1960s to the 1970s. It features a two-cylinder diesel engine with a displacement of 69.5 cubic inches, delivering 21.2 horsepower at a rated RPM of 2300. Equipped with a manual steering and a manual transmission offering six forward and two reverse gears, the Fiat 211R is designed with a 4x2 2WD chassis, suitable for various agricultural tasks. The tractor has a liquid cooling system but details like the valve configuration are not specified. With an electric starter, the 211R provides ease of operation, featuring an open operator station. It can accommodate agricultural tires and has standard dimensions with a length of 102.4 inches and a height of 61 inches. The manufacture years of the 211R spanned from the early 1960s until the 1970s, offering a reliable piece of machinery for its time.
Show more...

Key Specifications

Category: Utility

Power Output: 21.2

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1984

Fuel Type: Diesel

Fiat 211R vs. Similar Tractors

Power Output
Below Average
Greater than 11% of similar tractors.
Operating Weight
Below Average
Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
2
Displacement (ci)
69.5
Bore (in)
3.35
Stroke (in)
3.94
Rated RPM
2300
Power Output (hp)
21.2

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
102.4
Width (in)
-
Height (in)
61
Operating Weight (lb)
1984

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1970s
Hitch Type
-
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
