Fiat 1300

Last Updated: September 2024

Overview

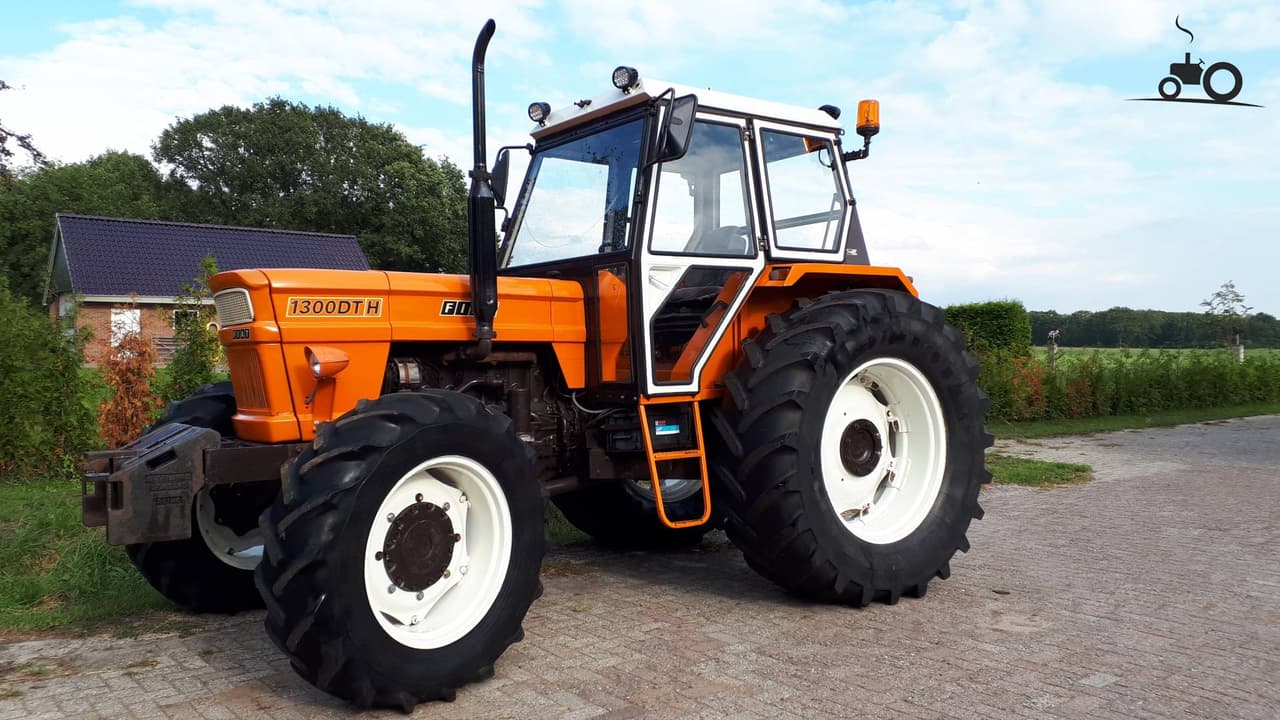

The Fiat 1300 is a powerful tractor made from 1973 to 1976. It has a 2WD drive system and power steering, making it easy to handle. The tractor comes with a manual transmission that has 12 forward gears and 4 reverse gears, giving the driver lots of options for different tasks.

Under the hood, the Fiat 1300 has a strong 6-cylinder diesel engine made by Fiat. This engine is liquid-cooled and can produce 130 horsepower at 2100 rpm. It has a displacement of 452.28 cubic inches, which is quite large for a tractor of its time. The tractor weighs 11,686 pounds, making it sturdy for heavy farm work. It has big agricultural tires, with 12.4-28 in the front and 18.4-38 in the rear.

The Fiat 1300 is built for serious farm work. It has a three-point hitch at the back that can lift up to 7,390 pounds. The tractor also has a versatile PTO system with two speeds: 540 rpm and 1000 rpm. Farmers can choose between an open operator station or a cab for comfort. With its electric starter and wet disc brakes, the Fiat 1300 is both easy to use and safe to operate.
Show more...

Key Specifications

Power Output: 130 hp (96.9 kW)

Transmission: Manual

Drive Type: 2WD

Operating Weight: 11686 lb (5301 kg)

Fuel Type: Diesel

Fiat 1300 vs. Similar Tractors

Power Output

The Power Output for the Fiat 1300 is Above Average. It is greater than 87% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 0.2K+ tractors in our database)

Operating Weight

The Operating Weight for the Fiat 1300 is Above Average. It is greater than 82% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 0.2K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Fiat 1300 is Above Average. It is greater than 88% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Fiat 1300 is Below Average. It is greater than 21% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Fiat
Model
OM CP3/100
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
6
Displacement
452 ci (7.4 L)
Bore
4.33 in (110.0 mm)
Stroke
5.12 in (130.0 mm)
Rated RPM
2100
Power Output
130 hp (96.9 kW)

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power Steering
Brake Type
Wet disc
