Ferguson TEF-20

Last Updated: June 2024

Overview

The Ferguson TEF-20 is a classic utility tractor, which was manufactured in Coventry, England from 1951 to 1956. This tractor features a 4x2 2WD chassis, is powered by a naturally aspirated four-cylinder diesel engine from Standard Motor, and utilizes a liquid cooling system. With a displacement of 127.7 cubic inches and outputting 26 horsepower at 2000 RPM, it fits well into the utility tractor category. Its unsynchronized gear transmission includes 4 forward gears and 1 reverse gear. The TEF-20 is equipped with manual steering, features differential mechanical shoe brakes, and an open operator station. It runs on 19-inch front and 38-inch rear agricultural tires. The tractor has a starting system powered by a 12-volt electric starter. Built to last and handle various tasks, the TEF-20 remains a reliable choice for farming and utility work.

Key Specifications

Category: Utility

Power Output: 26

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 2701

Fuel Type: Diesel

Image Gallery

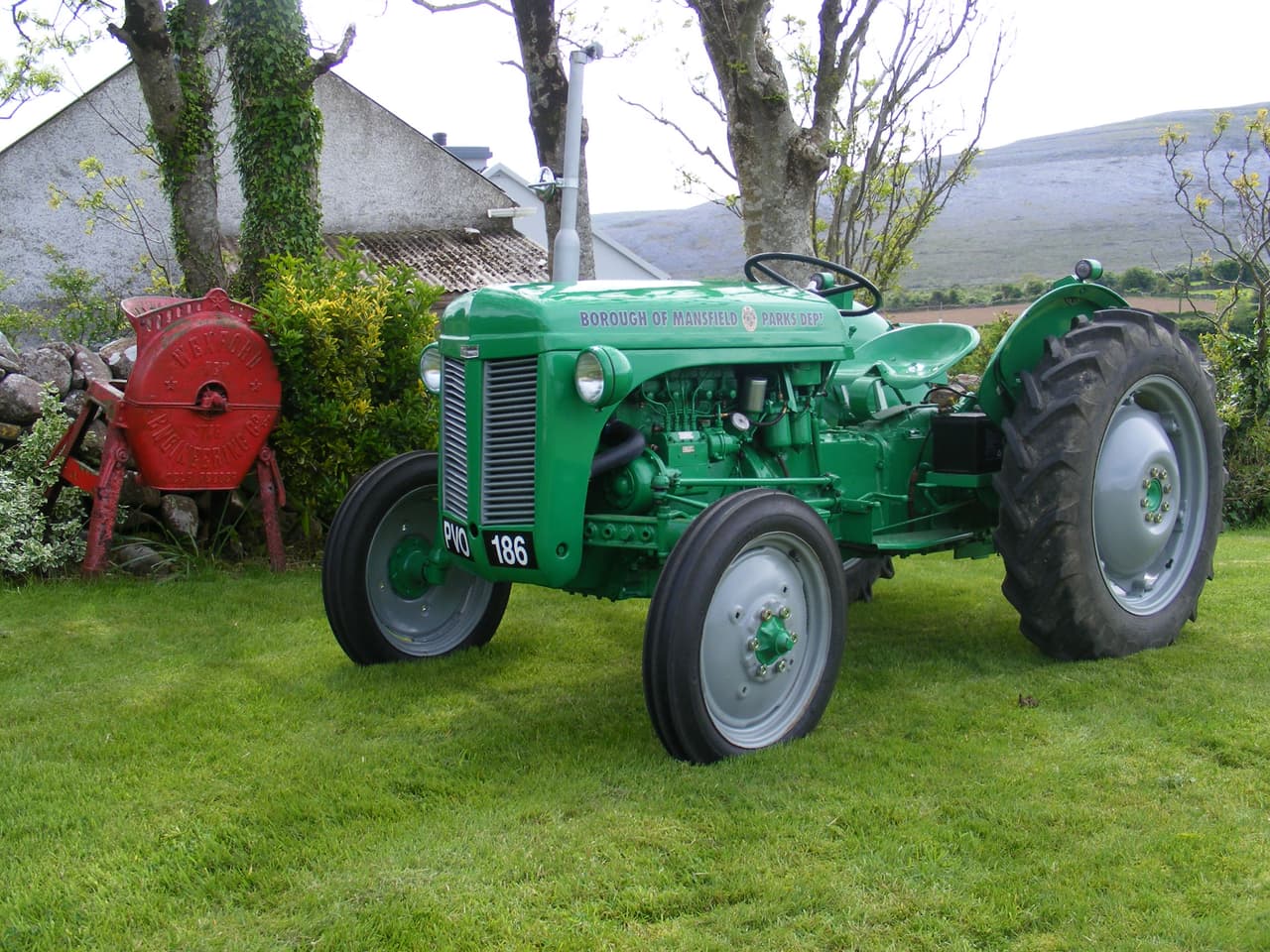

Ferguson TEF-20 Tractor

Ferguson TEF-20 vs. Similar Tractors

Power Output

Below Average

Greater than 20% of similar tractors.

Operating Weight

Below Average

Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer: Standard Motor
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 4
Displacement (ci): 127.7
Bore (in): 3.19
Stroke (in): 4
Rated RPM: 2000
Power Output (hp): 26

Transmission

Type: Unsynchronized gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 115
Width (in): 64
Height (in): 52
Operating Weight (lb): 2701

Power Take-Off (PTO)

PTO Type: Transmission
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 9
Front Tire Diameter (in): 19
Front Tire Width (in): -
Rear Tire Diameter (in): 38
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1956
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Differential mechanical shoe
Hydraulic System Type: -
