Ferguson FF 30

Last Updated: June 2024

Overview

The Ferguson FF 30 is a utility tractor with a stripped-back design focused on versatility and functionality. Equipped with a 4x2 2WD chassis, it features a manual steering system and an unsynchronized gear transmission with 4 forward and 1 reverse gears. The FF 30 is powered by a Standard-Hotchkiss gasoline engine, which is a 4-cylinder, liquid-cooled unit with a displacement of 127.4 cubic inches. Known for its straightforward, no-frills approach to agricultural tasks, the FF 30 has a power output of 30 horsepower. The tractor was designed with a Category I hitch system, making it apt for a range of attachments and implements for various farm tasks.

Key Specifications

Category: Utility

Power Output: 30

Transmission: Unsynchronized gear

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

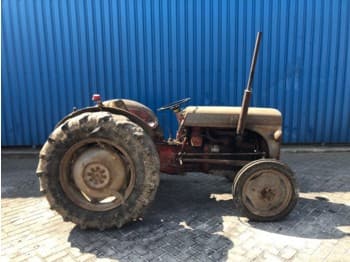

Ferguson FF 30 Tractor

Ferguson FF 30 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Technical Specifications

Engine

Manufacturer: Standard-Hotchkiss
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 127.4
Bore (in): 3.375
Stroke (in): 3.65
Rated RPM: -
Power Output (hp): 30

Transmission

Type: Unsynchronized gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
