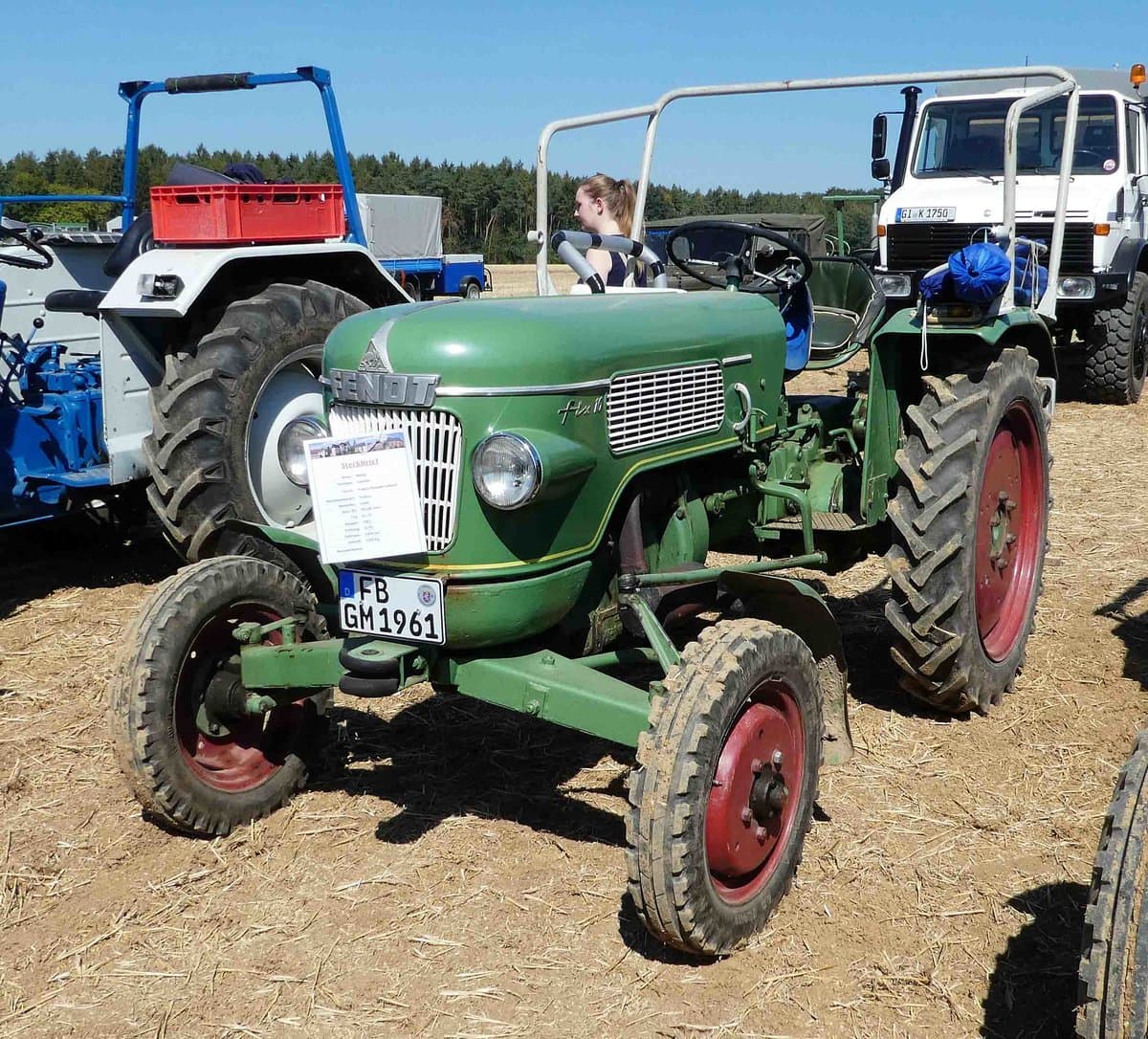

Fendt Fix 16

Last Updated: June 2024

Overview

The Fendt Fix 16 is a utility tractor that features a classic 4x2 2WD chassis and is powered by an MWM KD211Z diesel engine. It boasts a displacement of 76.3 cubic inches and an engine power output of 16 horsepower at 2000 RPM. With a 6-speed gear transmission, operators have six forward and two reverse gears at their disposal. Measuring at 113.8 inches in length and 59.8 inches in width, the Fix 16 has a steering wheel height of 56.3 inches. This tractor has an operating weight of 2789 pounds, riding on front tires that are 5.00-16 in size. Details about the tractor's hydraulic and PTO systems are not specified; however, it comes with standard three-point hitch capabilities (Category 3), suitable for a variety of implements. Additional information about the tractor's features, including steering type, tire width, and rim diameter, was not available or could not be confidently assumed.
Show more...

Key Specifications

Category: Utility

Power Output: 16

Transmission: Gear

Drive Type: 2WD

Operating Weight: 2789

Fuel Type: Diesel

Fendt Fix 16 vs. Similar Tractors

Power Output
Poor
Greater than 4% of similar tractors.
Operating Weight
Below Average
Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
KD211Z
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
2
Displacement (ci)
76.3
Bore (in)
3.35
Stroke (in)
4.33
Rated RPM
2000
Power Output (hp)
16

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
113.8
Width (in)
59.8
Height (in)
56.3 (steering wheel)
Operating Weight (lb)
2789

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
