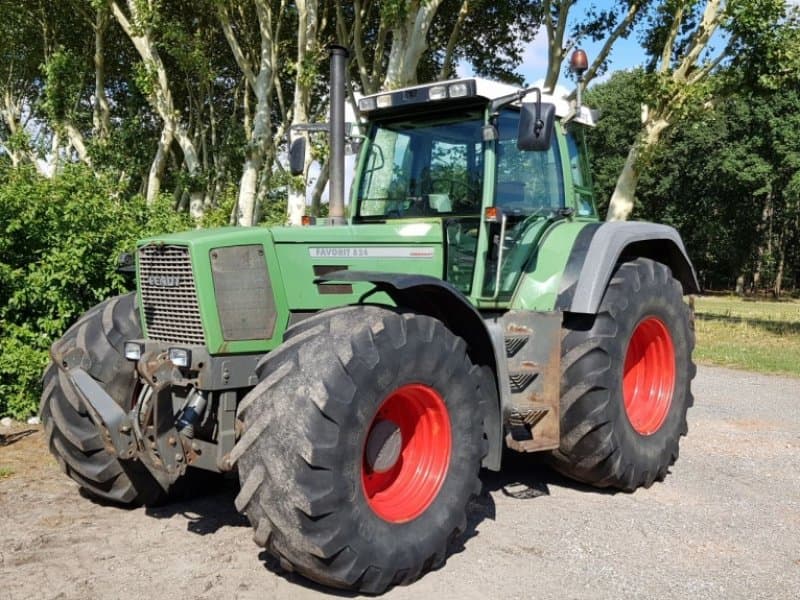

Fendt Favorit 824

Last Updated: June 2024

Overview

The Fendt Favorit 824 is a machine designed to cater to the heavy-duty needs of large scale farming operations. Equipped with a powerful MAN turbocharged 6-cylinder diesel engine, it boasts 230 horsepower and ample torque peaking at 698.5 lb-ft at 1400 RPM. The Favorit 824’s chassis supports a 4x4 MFWD 4WD configuration, ensuring enhanced traction and durability across various terrains. A notable attribute is its 44-speed manual transmission, allowing for precise control and the optimization of engine power. The tractor stands tall at 122.44 inches in height and spans 194.49 inches in length — a sizeable presence that contributes to its robust performance. Supported by large agricultural tires, 480/70R34 in the front and 620/70R42 in the rear, and a wheelbase of 111.81 inches, the tractor demonstrates excellent stability and comfort in operation. With an operating weight of 17397 lbs, the Favorit 824 can handle substantial loads, making it suitable for a variety of heavy tasks around the farm.
Show more...

Key Specifications

Power Output: 230

Transmission: Manual

Drive Type: 4WD

Operating Weight: 17397

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MAN
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
419.21
Bore (in)
4.252
Stroke (in)
4.92
Rated RPM
2300
Power Output (hp)
230

Transmission

Type
Manual
Forward Gears
44
Reverse Gears
44
Total Gears
-

Dimensions

Length (in)
194.49
Width (in)
-
Height (in)
122.44
Operating Weight (lb)
17397

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
34
Front Tire Width (in)
-
Rear Tire Diameter (in)
42
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
