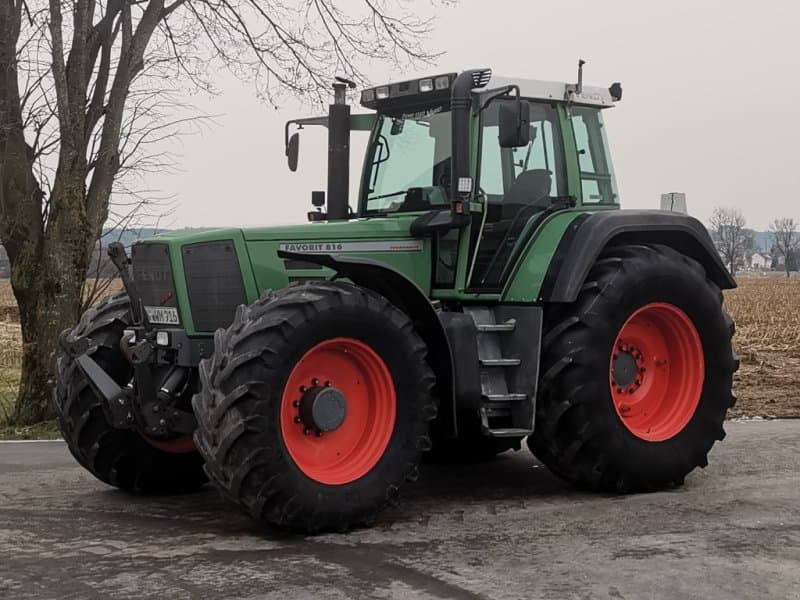

Fendt Favorit 816

Last Updated: June 2024

Overview

The Fendt Favorit 816 is a 4-wheel drive tractor that is designed to handle various agricultural tasks with efficiency and power. It comes equipped with a robust MAN turbocharged diesel engine with 6 cylinders, offering 170 horsepower and an impressive torque of 553.2 lb-ft at 1400 RPM. With a 4x4 MFWD 4WD chassis and a substantial operating weight of 16,691 lbs, the Favorit 816 is well-suited for heavy-duty operations. It features a high number of forward and reverse gears, totaling 44 for each direction, which provides the operator with a wide range of speed options for optimal performance in diverse field conditions. The tractor's large wheelbase, measuring 111.81 inches, aids in its stability and ride comfort. The tractor is designed with a lengthy body at 194.5 inches and a height of 120.1 inches, indicating a sizable and commanding presence in the field. While specific details such as the type of transmission, steering, and hitch systems are not provided, the available specifications demonstrate that the Fendt Favorit 816 is a powerful and capable machine for demanding agricultural tasks.
Show more...

Key Specifications

Power Output: 170

Drive Type: 4WD

Operating Weight: 16691

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
MAN
Model
-
Cooling Type
turbocharged
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
419.21
Bore (in)
4.252
Stroke (in)
4.92
Rated RPM
2200
Power Output (hp)
170

Transmission

Type
-
Forward Gears
44
Reverse Gears
44
Total Gears
-

Dimensions

Length (in)
194.5
Width (in)
-
Height (in)
120.1
Operating Weight (lb)
16691

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
