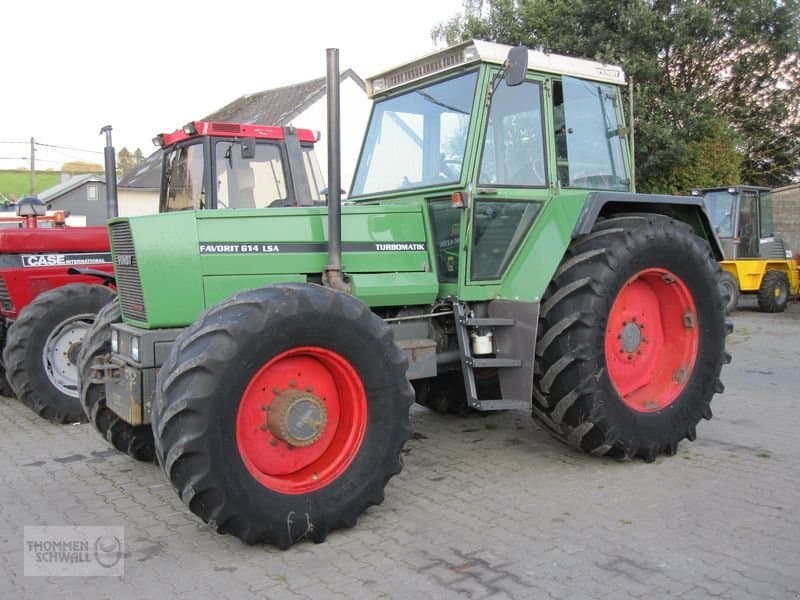

Fendt Favorit 614SL

Last Updated: June 2024

Overview

The Fendt Favorit 614SL is a 4-wheel drive tractor, identifiable by its 4x4 MFWD 4WD chassis configuration. It is powered by an MWM TD226-6 turbocharged diesel engine that offers 135 horsepower and a displacement of 380.8 cubic inches. The engine's power is harnessed through a manual transmission with 16 forward and 7 reverse gears, suitable for a variety of tasks. With a 2400 RPM rated engine speed, the tractor demonstrates a strong balance of efficiency and power. The tractor's dimensions include a length of 182.68 inches and a height of 110.63 inches, with an operating weight of 13119 lbs. Front and rear tire sizes are 13.6-28 and 18.4-38 respectively, which are well-suited for agricultural purposes. Detailed performance specifications like torque are known, 343.7 lb-ft at 1700 RPM, further emphasizing the tractor's capability. Owners of this tractor may value its robust construction and versatility for farm tasks.
Show more...

Key Specifications

Power Output: 135

Transmission: Manual

Drive Type: 4WD

Operating Weight: 13119

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
TD226-6
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
380.8
Bore (in)
4.1338
Stroke (in)
4.72
Rated RPM
2400
Power Output (hp)
135

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
7
Total Gears
-

Dimensions

Length (in)
182.68
Width (in)
-
Height (in)
110.63
Operating Weight (lb)
13119

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
