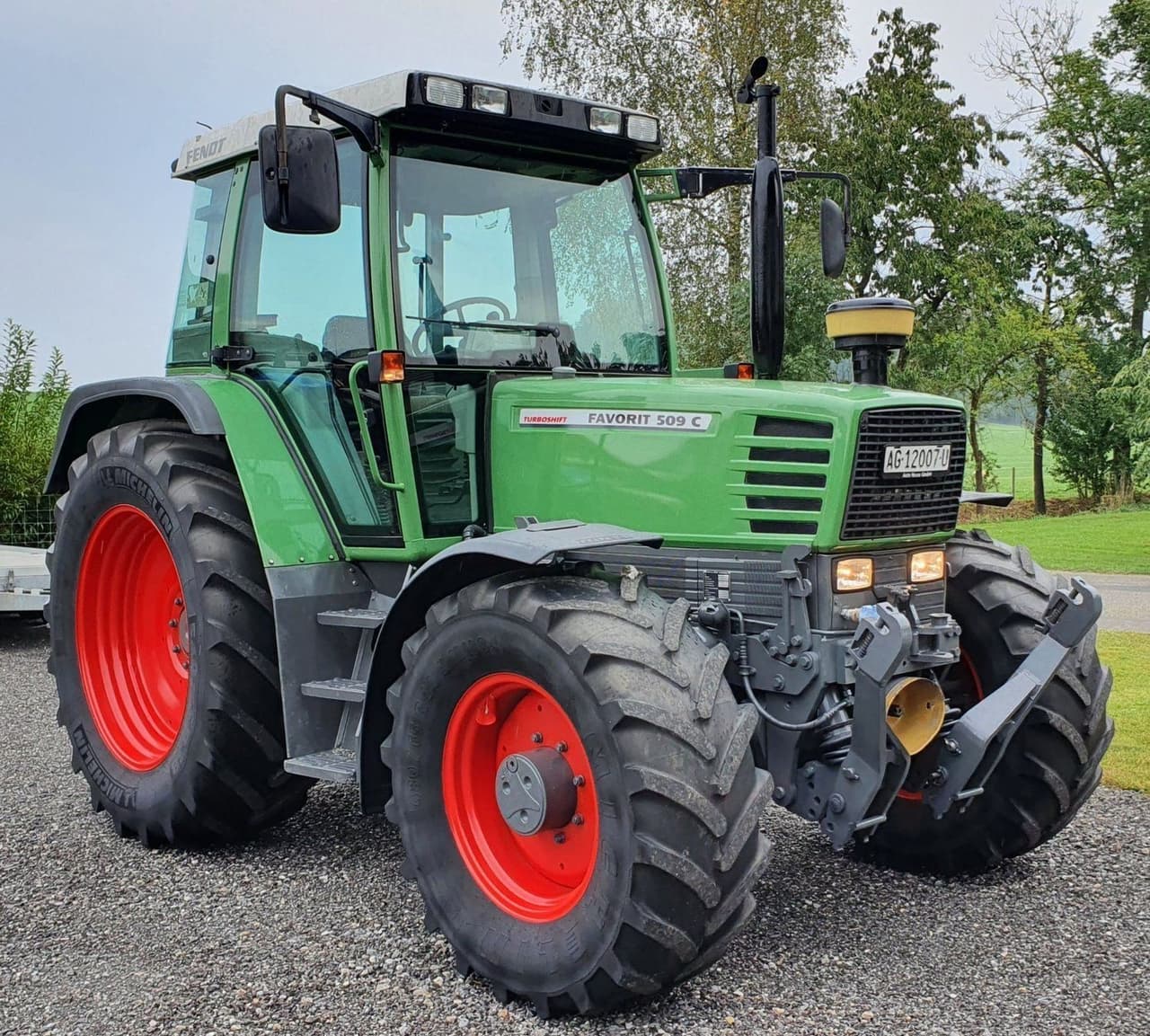

Fendt Favorit 509C

Last Updated: June 2024

Overview

The Fendt Favorit 509C is a 4-wheel drive tractor designed for a range of agricultural applications. Equipped with a liquid-cooled, turbocharged diesel engine manufactured by MWM, the tractor offers substantial pulling power with a rated engine output of 95 horsepower and a peak torque of 281 lb-ft at 1500 RPM. The chassis is a 4x4 MFWD 4WD configuration, ensuring better traction in varied field conditions. The transmission is a four-speed power shift, providing the operator with a total of 44 gears. Steering is power-assisted, enhancing maneuverability, and the tractor's operating weight is 10,957 lbs. The tractor rolls on standard agricultural tires, with sizes 420/70R24 for the front and 480/70R38 for the rear. Additional dimensions include a wheelbase of 91.9 inches, a ground clearance of 21.1 inches, and a length and width of 164.6 inches and 82.3 inches, respectively. The Favorit 509C also features a cab configuration for operator comfort. With a sturdy build and a reliable powertrain, this tractor is designed for efficient performance in a variety of farming tasks.
Show more...

Key Specifications

Power Output: 95

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 10957

Fuel Type: Turbocharged Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
253.5
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
95

Transmission

Type
Four-speed power shift
Forward Gears
-
Reverse Gears
-
Total Gears
44

Dimensions

Length (in)
164.6
Width (in)
82.3
Height (in)
110 (cab height)
Operating Weight (lb)
10957

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard Ag
Manufacture - End Year
-
Hitch Type
Rear Type III/II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
12 volt
Brake Type
-
Hydraulic System Type
-
