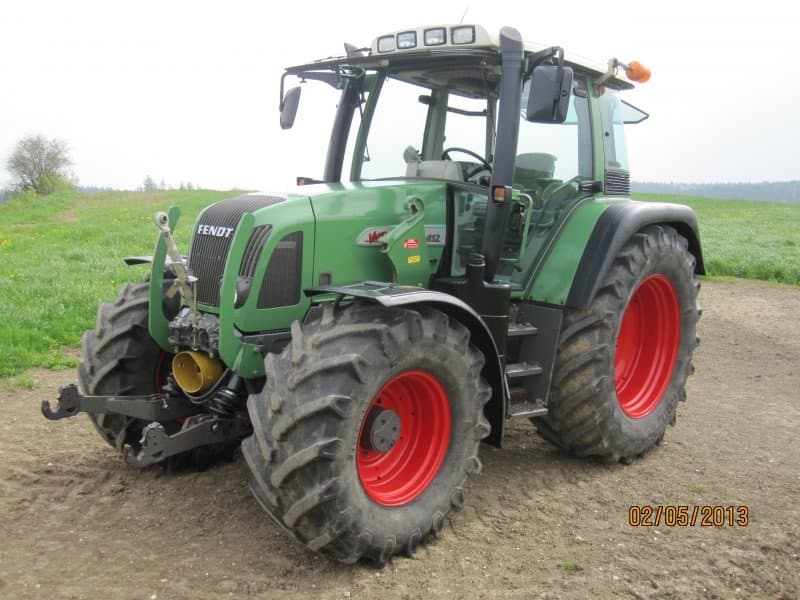

Fendt Farmer 409 Vario

Last Updated: June 2024

Overview

The Fendt Farmer 409 Vario is a versatile row-crop tractor that combines modern technology with robust power. With its 4-cylinder turbocharged Deutz diesel engine, the tractor outputs 86 horsepower and is capable of delivering a torque of 284.7 lb-ft at 1450 RPM. This model is equipped with Fendt's Vario continuously variable transmission, allowing infinite gear ratios within two ranges, which means both precise speed control and efficient power delivery for a variety of tasks. The power is transmitted to all four wheels, as it features a 4x4 MFWD 4WD chassis, providing improved traction and performance in diverse field conditions. Steering is power-assisted, reducing operator effort and enhancing maneuverability. The tractor maintains a liquid-cooling system, ensuring it can perform optimally under heavy workloads. Notably, this model includes a comfortable cab, demonstrating Fendt's commitment to operator comfort. With a weight of 11177 lbs and dimensions that affirm its stability and effectiveness in the field, the Farmer 409 Vario stands as a durable and powerful machine suitable for a wide range of agricultural applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 86

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 11177

Fuel Type: Diesel

Fendt Farmer 409 Vario vs. Similar Tractors

Power Output
Below Average
Greater than 14% of similar tractors.
Operating Weight
Average
Greater than 41% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
231.9
Bore (in)
3.86
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
86

Transmission

Type
Continuously Variable Transmission (CVT)
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
164.8
Width (in)
85.2
Height (in)
110 (cab)
Operating Weight (lb)
11177

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Rear Type III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric (assumed based on the engine starter volts specification)
Brake Type
-
Hydraulic System Type
-
