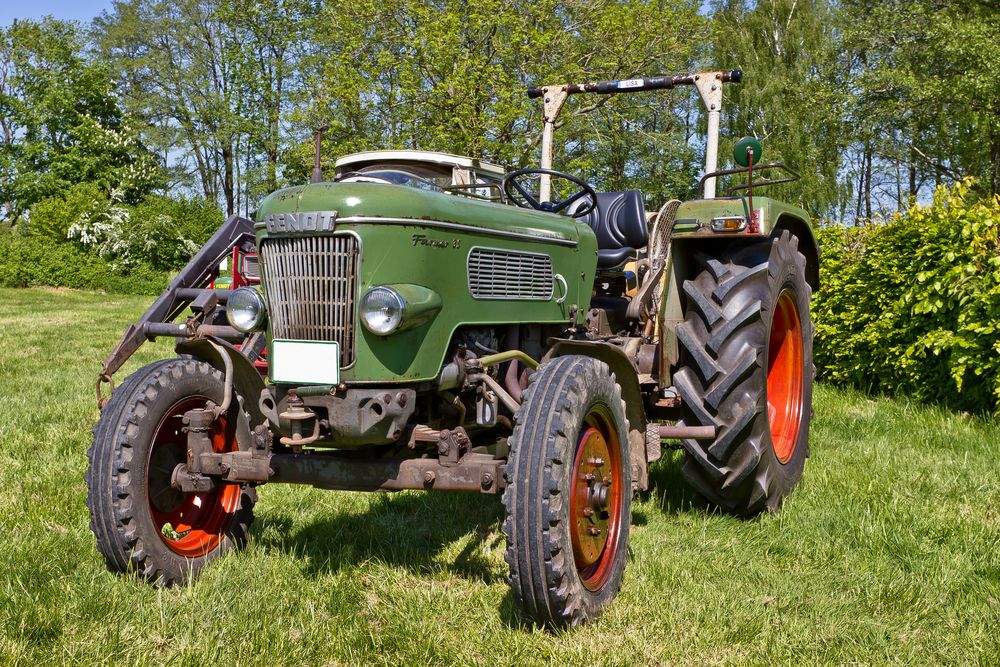

Fendt Farmer 3S

Last Updated: June 2024

Overview

The Fendt Farmer 3S is a utility tractor that exemplifies Fendt's reputation for high-quality engineering and durability. It comes in a 4x2 2WD chassis configuration and is powered by an MWM D208-4 four-cylinder diesel engine, which provides 45 hp and a displacement of 181.6 cubic inches. This tractor operates with a liquid cooling system and is equipped with a manual transmission offering 13 forward and 4 reverse gears, allowing it a broad range of speeds suitable for various farming tasks. Tires are standard agricultural type with a front diameter of 20 inches and a rear diameter of 30 inches. It has a significant length and height, measuring 150 inches long and 93.3 inches high, with a two-wheel-drive operating weight of 5336 pounds. The Fendt Farmer 3S serves as a reliable workhorse for farmers who value simplicity and efficiency in their machinery.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Manual

Drive Type: 2WD

Operating Weight: 5336 (2WD)

Fuel Type: Diesel

Fendt Farmer 3S vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Above Average
Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D208-4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
181.6
Bore (in)
3.74
Stroke (in)
4.13
Rated RPM
2125
Power Output (hp)
45

Transmission

Type
Manual
Forward Gears
13
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
150
Width (in)
-
Height (in)
93.3
Operating Weight (lb)
5336 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
30
Rear Tire Width (in)
13
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
