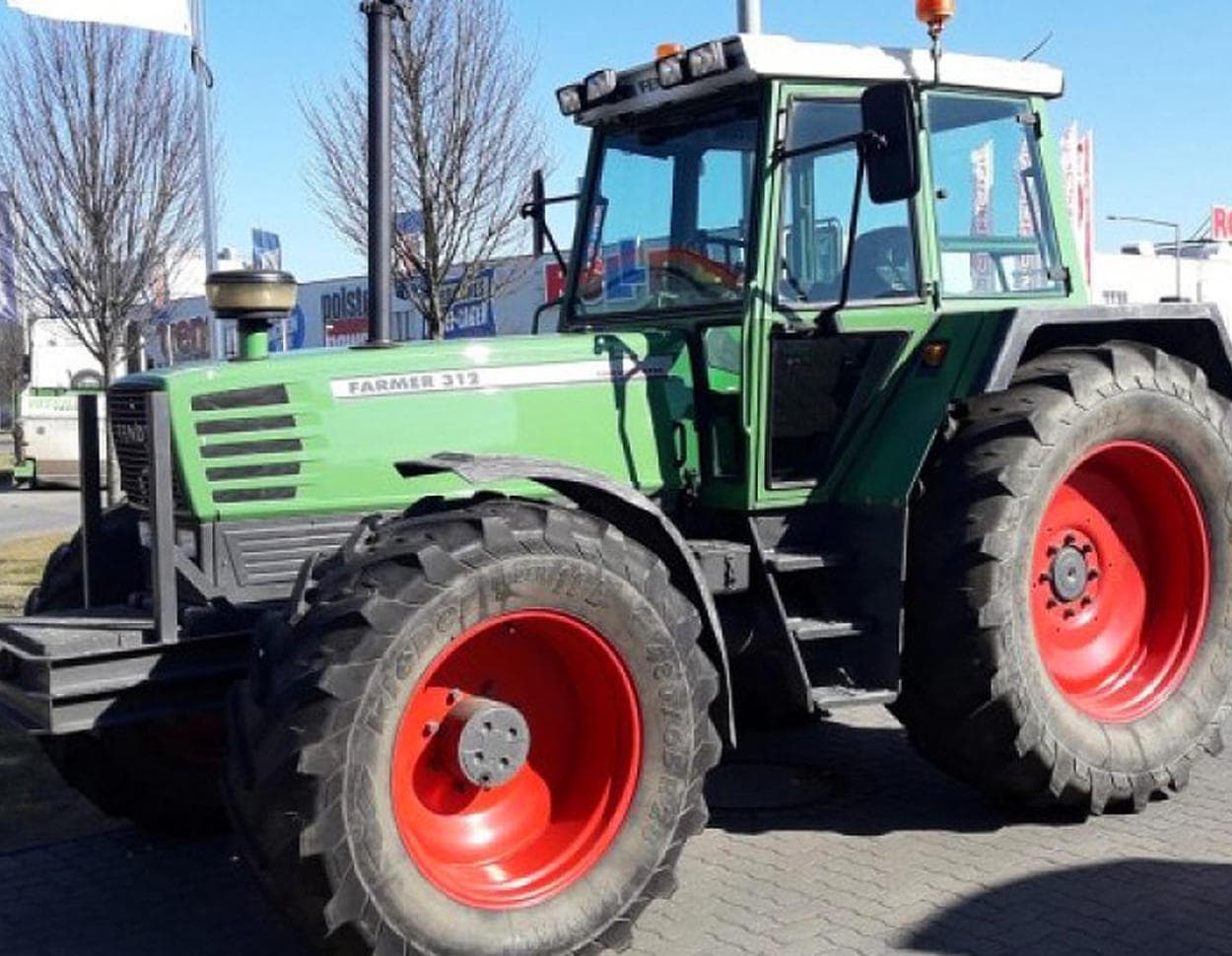

Fendt Farmer 312

Last Updated: June 2024

Overview

The Fendt Farmer 312 is a well-equipped utility tractor, designed to meet the demands of modern farming activities. Its power comes from an MWM TD226.B6 six-cylinder turbocharged diesel engine with a robust 125 horsepower and a displacement of 380.4 cubic inches. The engine reaches its peak torque of 354 lb-ft at 1500 RPM and is optimized for a rated RPM of 2400. It features a liquid cooling system to handle rigorous agricultural tasks. Its power is managed by a three-speed power shift transmission, offering 21 gears for both forward and reverse movement, providing versatility and precision in varying working conditions. The tractor's substantial operating weight of 11,796 pounds can be maximized to 16,535 pounds, ensuring stability and traction. The Fendt Farmer 312 is equipped with a standard ag tire setup, with a larger diameter at the rear (520/70R38) compared to the front (420/70R28), and a cab height of 111 inches provides ample visibility for the operator. The model features an electric starter with a 12-volt system and comes with a PTO that supports multiple speeds: 540, 750, and 1000 rpm, which is also available at the front at 1000 rpm. This model is designed with durability and performance in mind, capable of handling various agricultural tasks with efficiency.
Show more...

Key Specifications

Power Output: 125

Transmission: Three-speed power shift

Operating Weight: 11796

Fuel Type: Turbocharged diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
TD226.B6
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
380.4
Bore (in)
4.134
Stroke (in)
4.72
Rated RPM
2400
Power Output (hp)
125

Transmission

Type
Three-speed power shift
Forward Gears
21
Reverse Gears
21
Total Gears
-

Dimensions

Length (in)
176.4
Width (in)
91.3
Height (in)
111 (for cab only)
Operating Weight (lb)
11796

Power Take-Off (PTO)

PTO Type
Rear: 540/750/1000, Front: 1000
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
750
PTO Speed 3 (rpm)
1000

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28 (from 420/70R28)
Front Tire Width (in)
-
Rear Tire Diameter (in)
38 (from 520/70R38)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
