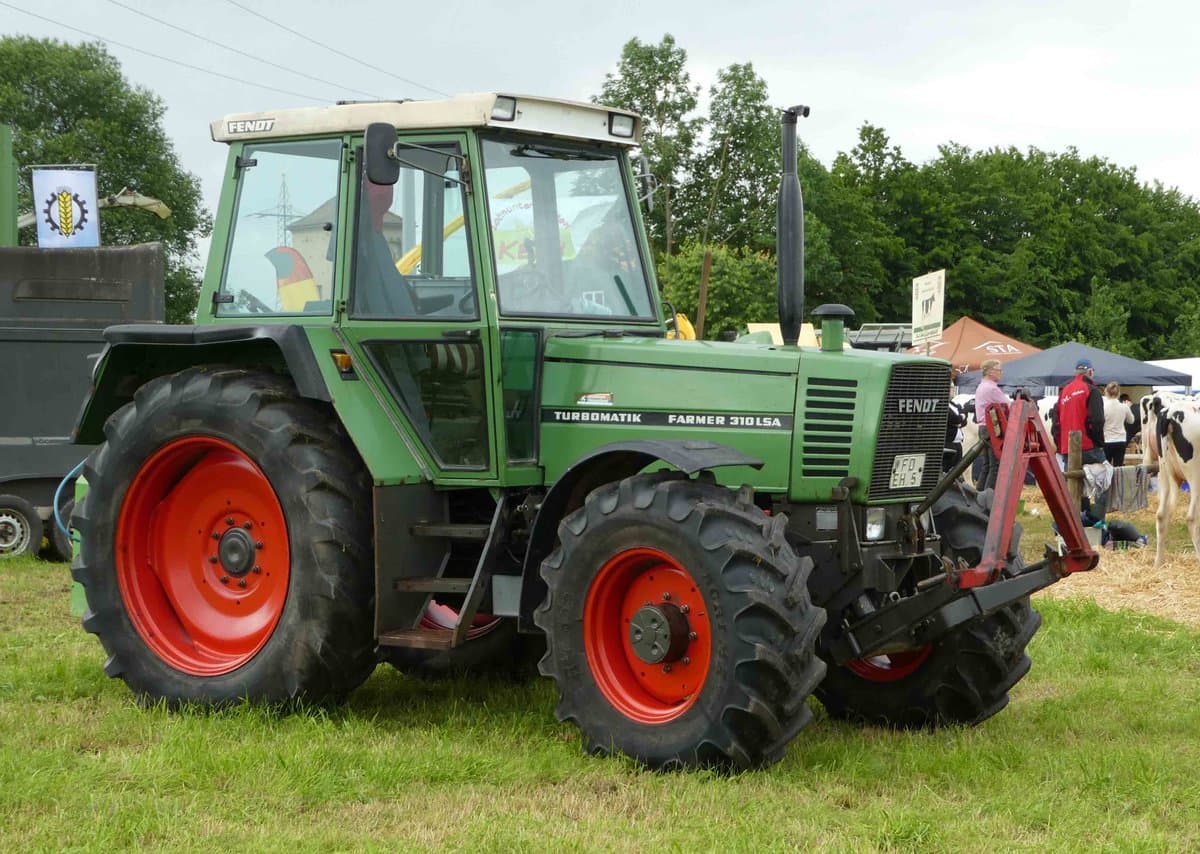

Fendt Farmer 310LS

Last Updated: June 2024

Overview

The Fendt Farmer 310LS is a row-crop tractor known for its robust and powerful performance in agricultural applications. It boasts a 4x2 2WD chassis and a manual 21-speed transmission, including 21 forward gears and 6 reverse gears, providing versatility for various farming tasks. The tractor is equipped with a turbocharged diesel engine by MWM, featuring 4 cylinders with a displacement of 253.48 cubic inches, delivering 92 horsepower and a rated RPM of 2350. The Farmer 310LS has a practical design with a wheelbase of 94.1 inches and dimensions that include a length of 163 inches and a height of 107.1 inches. It comes in two weight variants: 9073 lbs for the 2WD version and 9812 lbs for the 4WD version, addressing different agricultural needs. This tractor’s design focuses on delivering consistent power and reliability for various row-crop farming activities.
Show more...

Key Specifications

Category: Row Crop

Power Output: 92

Transmission: Manual

Drive Type: 2WD

Operating Weight: 9073 (2WD), 9812 (4WD)

Fuel Type: Diesel

Image Gallery

Fendt Farmer 310LS Tractor Fendt Farmer 310LS Tractor Fendt Farmer 310LS Tractor Fendt Farmer 310LS Tractor

Fendt Farmer 310LS vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Above Average
Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
253.48
Bore (in)
4.134
Stroke (in)
4.72
Rated RPM
2350
Power Output (hp)
92

Transmission

Type
Manual
Forward Gears
21
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
163
Width (in)
-
Height (in)
107.1
Operating Weight (lb)
9073 (2WD), 9812 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
