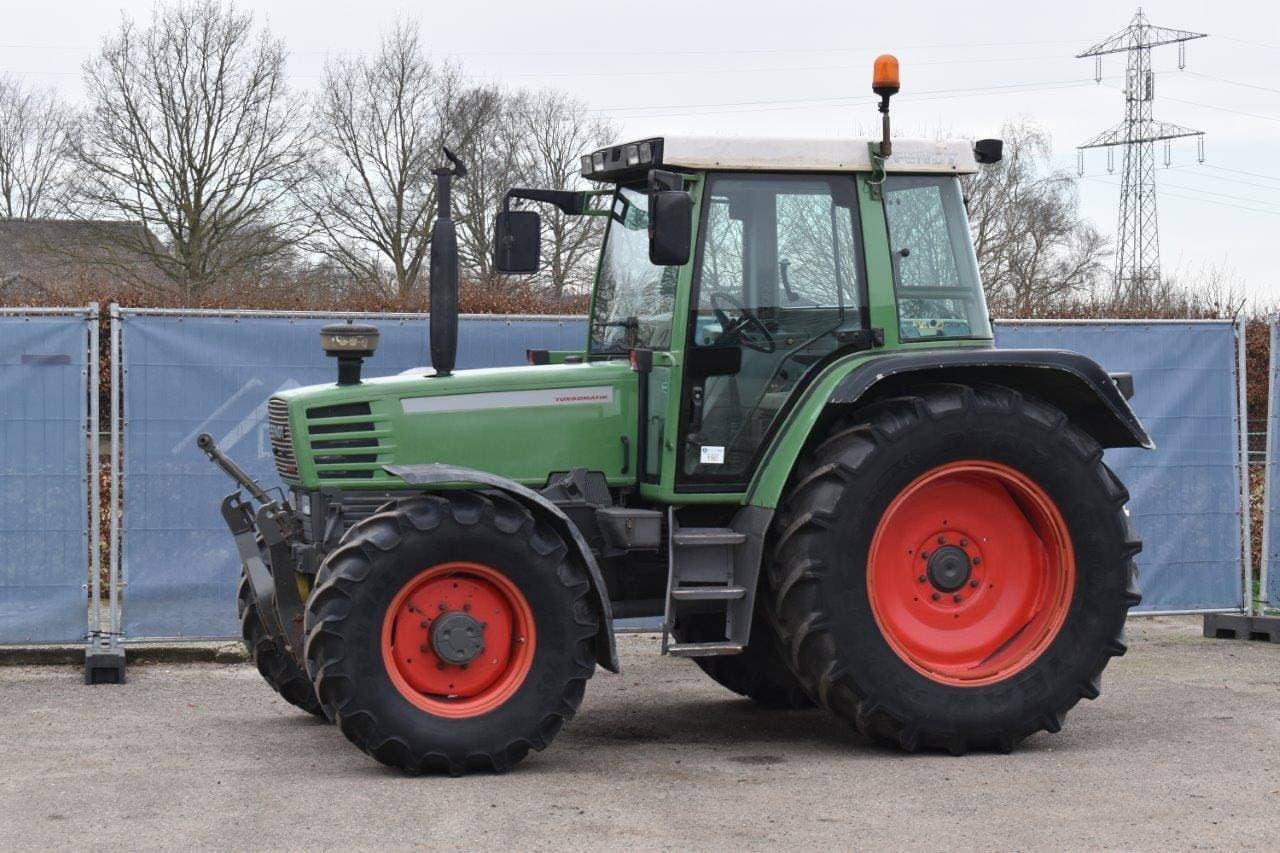

Fendt Farmer 310

Last Updated: September 2024

Overview

The Fendt Farmer 310 is a powerful and versatile tractor designed for modern farming needs. It features a robust MWM TD226.B4 engine, which is a 4-cylinder, turbocharged diesel engine. This engine produces 105 hp at 2300 rpm, providing plenty of power for various farm tasks. The tractor's liquid-cooled system helps keep the engine running smoothly in different weather conditions.

One of the standout features of the Farmer 310 is its transmission. It has a three-speed power shift transmission with 21 forward and 21 reverse gears, giving farmers excellent control and flexibility in the field. The tractor is equipped with both rear and front PTO options, including speeds of 540, 750, and 1000 rpm at the rear, and 1000 rpm at the front. This makes it suitable for a wide range of implements. With a Category 3 hitch, the Farmer 310 can handle heavy-duty attachments. The tractor's size is manageable, measuring 164.6 inches long, 89.8 inches wide, and 110 inches tall, with a wheelbase of 91.9 inches. It has an operating weight of 10,804 lb, making it sturdy and stable for various farm operations.
Show more...

Key Specifications

Power Output: 105 hp (78.3 kW)

Transmission: Three-speed power shift

Operating Weight: 10804 lb (4901 kg)

Fuel Type: Diesel

Fendt Farmer 310 vs. Similar Tractors

Power Output

The Power Output for the Fendt Farmer 310 is Above Average. It is greater than 75% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Fendt Farmer 310 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Fendt Farmer 310 is Average. It is greater than 62% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Fendt Farmer 310 is Average. It is greater than 51% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
MWM
Model
TD226.B4
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
254 ci (4.2 L)
Bore
4.13 in (105.0 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2300
Power Output
105 hp (78.3 kW)

Transmission

Type
Three-speed power shift
Forward Gears
21
Reverse Gears
21
