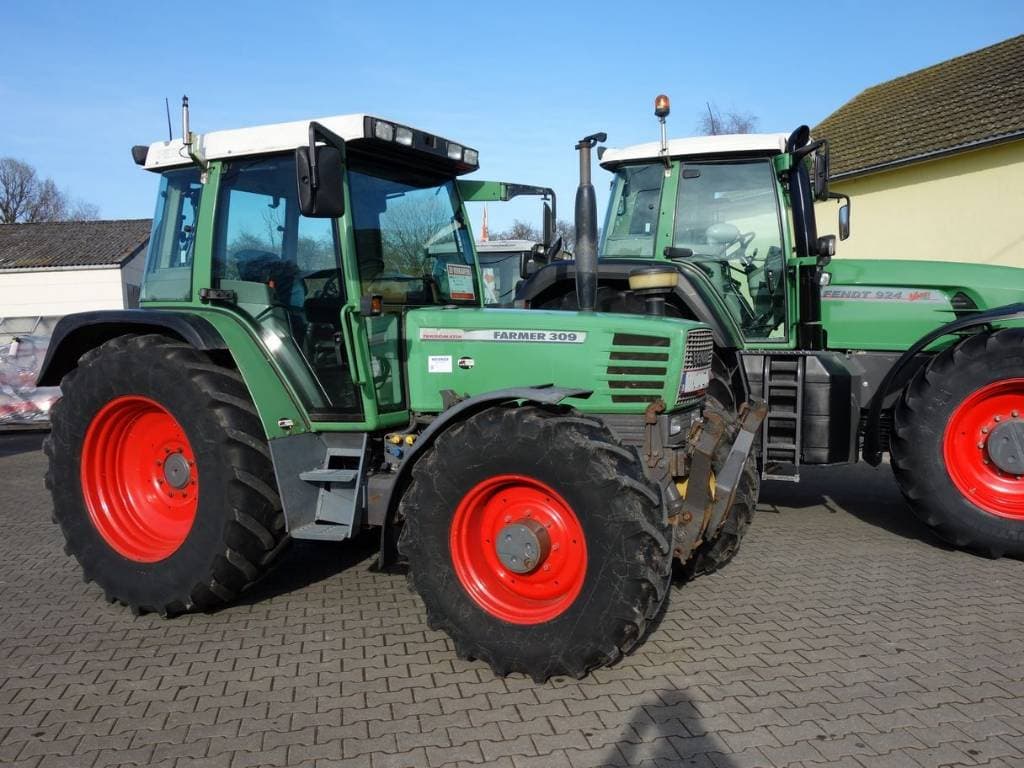

Fendt Farmer 309

Last Updated: June 2024

Overview

The Fendt Farmer 309 is a utility tractor recognized for its dependability and power. Equipped with a liquid-cooled, turbocharged diesel engine manufactured by MWM, designated as model TD226.B4, it has a displacement of 253.5 cubic inches and an engine bore and stroke of 4.134x4.72 inches. The engine is capable of delivering 95 horsepower at a rated RPM of 2350, making it suitable for a variety of farming and agricultural tasks. The tractor features a three-speed power shift transmission with 21 forward and reverse gears. It operates on agricultural tires, standard being front 380/70R24 and rear 480/70R34, and offers a weighty presence in the field with an operating weight of 9591 pounds. The Farmer 309 is designed with operator comfort in mind, sporting a cab structure for an enhanced driving experience.
Show more...

Key Specifications

Category: Utility

Power Output: 95

Transmission: Three-speed power shift

Operating Weight: 9591

Fuel Type: Diesel

Fendt Farmer 309 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
TD226.B4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
253.5
Bore (in)
4.134
Stroke (in)
4.72
Rated RPM
2350
Power Output (hp)
95

Transmission

Type
Three-speed power shift
Forward Gears
21
Reverse Gears
21
Total Gears
-

Dimensions

Length (in)
158.7
Width (in)
84.3
Height (in)
105.1
Operating Weight (lb)
9591

Power Take-Off (PTO)

PTO Type
Front and Rear
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
750
PTO Speed 3 (rpm)
1000

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
