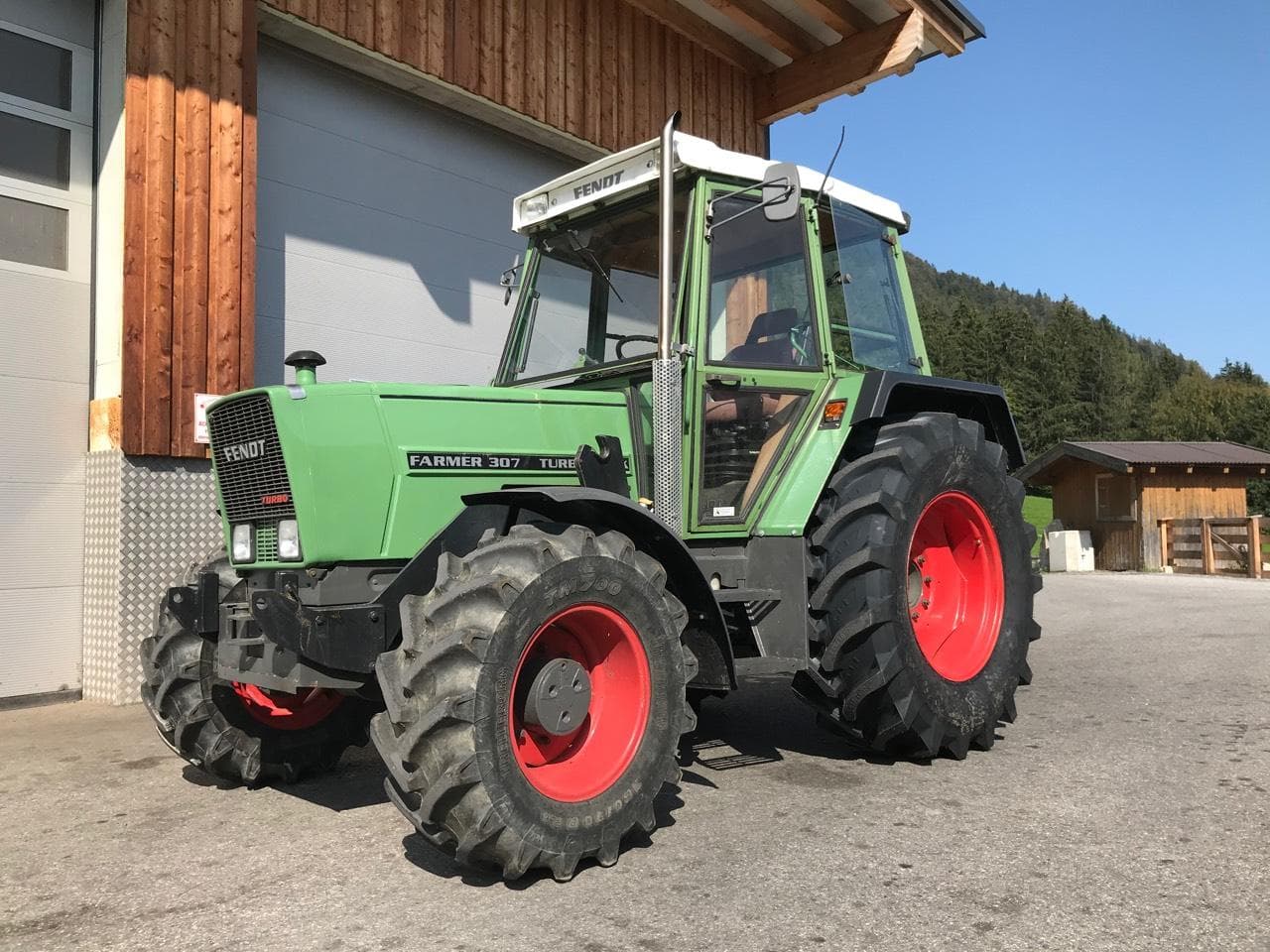

Fendt Farmer 307LS

Last Updated: June 2024

Overview

The Fendt Farmer 307LS is a utility tractor, possibly equipped with a 2WD or 4WD chassis (chassis and drive type are unconfirmed, so this is a speculative categorization). It comes with a robust turbocharged diesel engine from MWM, which is a 3-cylinder, liquid-cooled unit designed to deliver consistent power with a displacement of 190.1 cubic inches. The engine operates at a rated 2200 RPM, providing 70 horsepower or the equivalent of 52.2 kW. This tractor is set to handle various farming tasks with a 21 forward and 6 reverse gear transmission (the exact type of transmission is unspecified, and assumptions about hydraulic or manual shift cannot be made). The tractor's dimensions are 153.5 inches in length and 103.1 inches in height, with a wheelbase of 90.2 inches, which contributes to its stability in varied agricultural applications. The weight of the tractor can vary between 6945 lbs for the 2WD version and 7541 lbs for the 4WD version, if equipped. Although details about tire sizes are only partially known, the tractor uses 10.00-16 front tires and 16.9R34 rear tires, which can be presumed to offer grip suitable for its utility applications. Detailed specifications on PTO type and speeds, starter type, the operator station, hitch, hydraulic system type, and additional features are unknown and could not be reliably inferred from the provided data.
Show more...

Key Specifications

Category: Utility

Power Output: 70

Fuel Type: diesel

Fendt Farmer 307LS vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
3
Displacement (ci)
190.1
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
70

Transmission

Type
-
Forward Gears
21
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
153.5
Width (in)
-
Height (in)
103.1
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
