Fendt Farmer 306LS

Last Updated: June 2024

Overview

The Fendt Farmer 306LS is a 2WD row-crop tractor that was designed to meet the demands of modern agriculture. Its liquid-cooled MWM 4-cylinder diesel engine provides 70 horsepower at 2200 RPM, with a maximum torque of 197.7 lb-ft at 1500 RPM. The tractor features a 15-speed synchromesh transmission, offering a versatile range of speeds suitable for various tasks. It has a power steering system for easier maneuverability. The open-center hydraulic system with a flow of 8.7 gpm supports various implements, while the Category II hitch can lift up to 11023 lbs. With a wheelbase of 91.3 inches for 2WD and 77.6 inches for 4WD models, the Farmer 306LS has a commanding presence in the field. The tractor's cab offers protection and comfort for operators during long working hours.
Show more...

Key Specifications

Category: Row Crop

Power Output: 70

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 7793 to 8168

Fuel Type: Diesel

Image Gallery

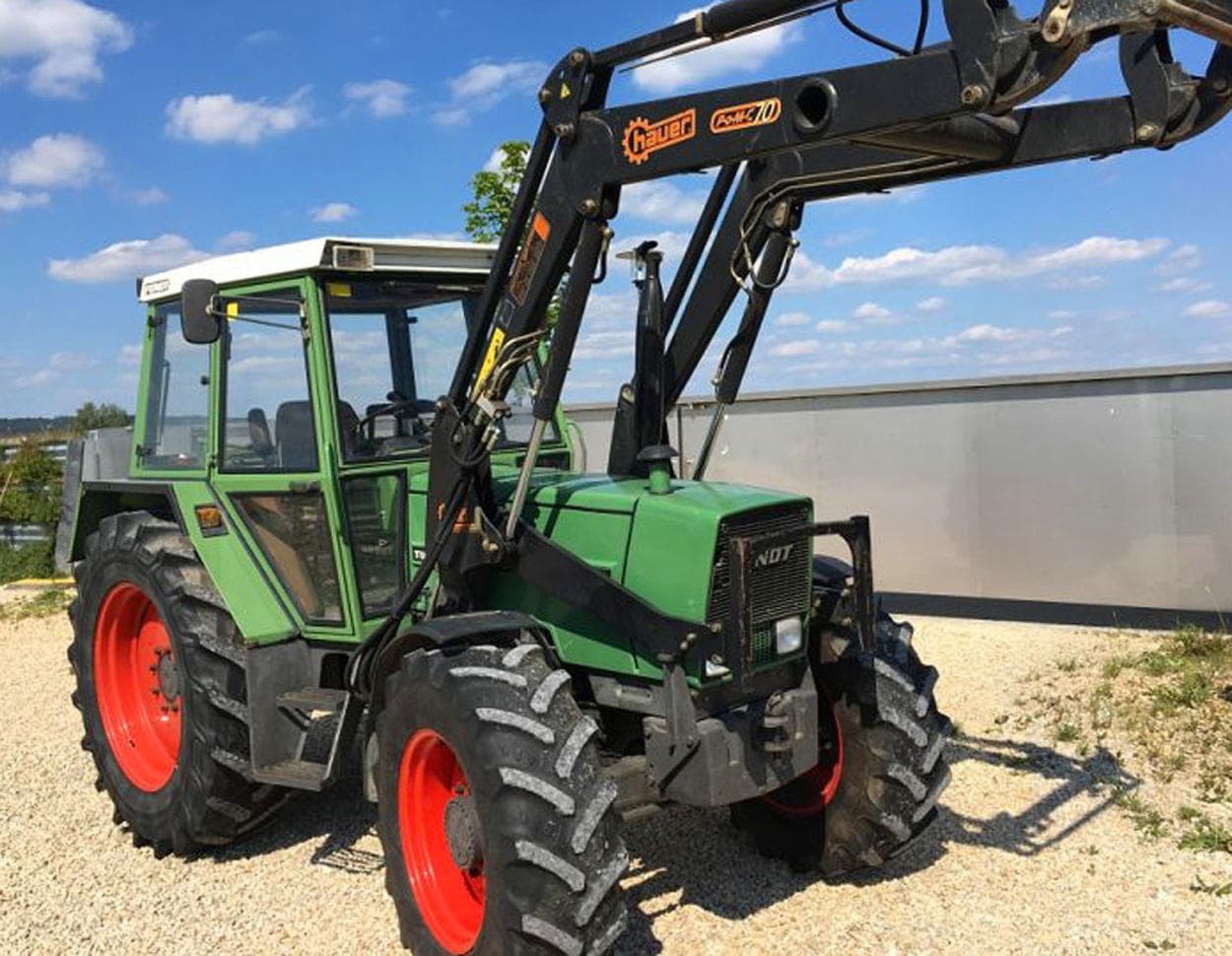

Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor Fendt Farmer 306LS Tractor

Fendt Farmer 306LS vs. Similar Tractors

Power Output
Poor
Greater than 9% of similar tractors.
Hitch Capacity
Average
Greater than 62% of similar tractors.
Operating Weight
Above Average
Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
253.5
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
70

Transmission

Type
Synchromesh
Forward Gears
21
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
153.7 (2WD), 154.3 (4WD)
Width (in)
77.6
Height (in)
102 (cab)
Operating Weight (lb)
7793 to 8168

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category II
Hitch Position
-
Hitch Capacity (lb)
11023 lbs
Operator Station Type
Cab
Starter Type
12 volt
Brake Type
-
Hydraulic System Type
Open center
