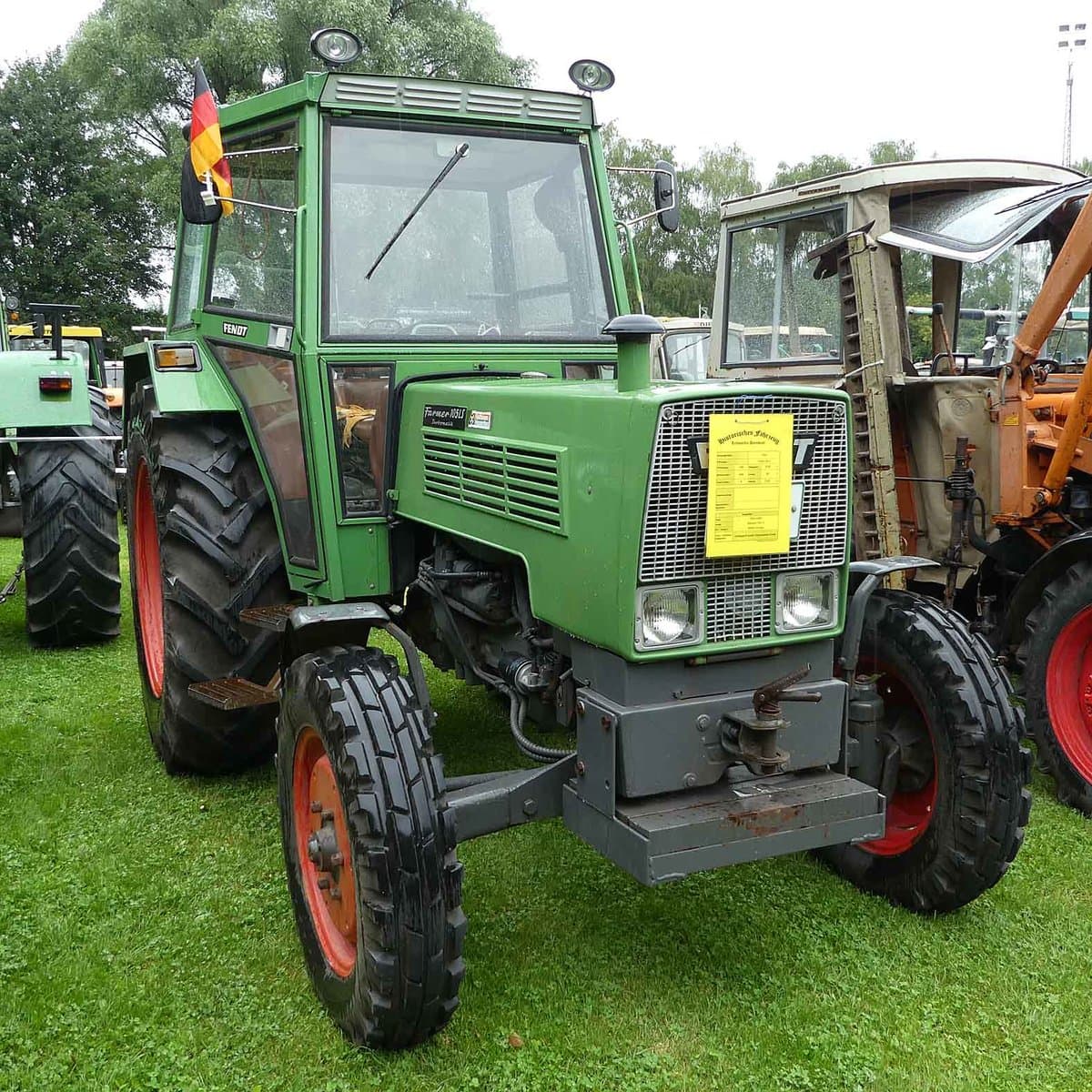

Fendt Farmer 304LS

Last Updated: June 2024

Overview

The Fendt Farmer 304LS utility tractor was part of the Farmer 300 series, produced by Fendt from 1985 to 1998. It features a 3.1 L, 190.15 ci MWM D226 3B diesel engine that produces 58 hp at 2350 rpm and 151.2 lb-ft of torque at 1500 rpm. The 304LS is designed for various tasks with hydraulic power steering, hydraulic drum brakes, and a comfortable cab with heat and optional air-conditioning. Its powertrain includes a 15-speed synchromesh transmission and it can either be 2WD or 4WD, depending on the configuration. The tractor has a 21.1 US gal. fuel tank, an open-center hydraulic system, and a rear independent PTO with speeds of 540/1000 rpm. It's a versatile machine suitable for a variety of agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 58

Transmission: Synchromesh

Drive Type: 2WD/4WD

Operating Weight: 10362

Fuel Type: Diesel

Image Gallery

Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor Fendt Farmer 304LS Tractor

Fendt Farmer 304LS vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Hitch Capacity
Above Average
Greater than 74% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D226 3B
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
190.15
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2350
Power Output (hp)
58

Transmission

Type
Synchromesh
Forward Gears
15
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
149.2
Width (in)
77.2
Height (in)
101.2
Operating Weight (lb)
10362

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD/4WD
Steering Type
Hydraulic power
Coolant Capacity (qts)
12.68
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1998
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
4719
Operator Station Type
Cab with optional air-conditioning
Starter Type
Electric
Brake Type
Hydraulic drum
Hydraulic System Type
Open center
