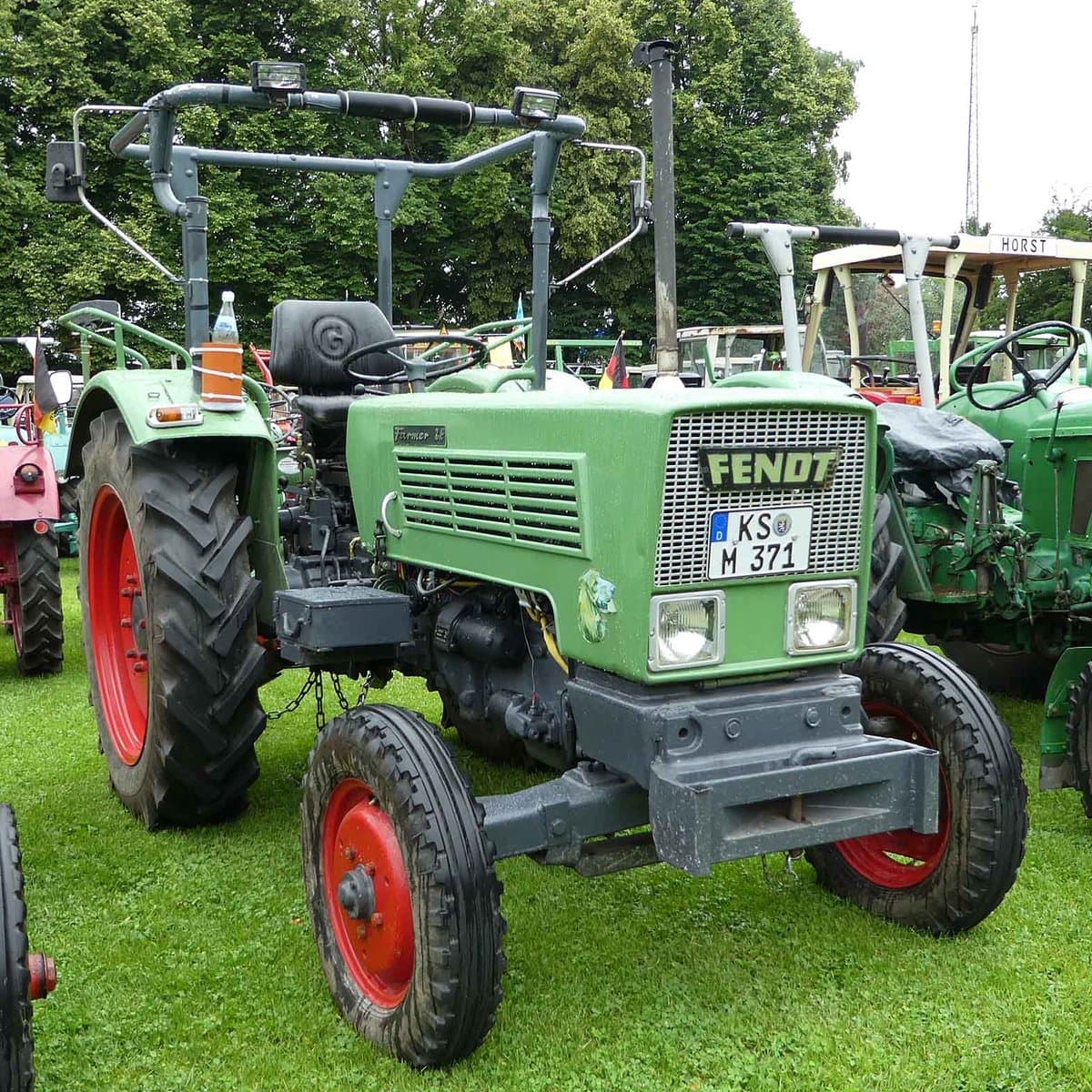

Fendt Farmer 2E

Last Updated: June 2024

Overview

The Fendt Farmer 2E is a classic example of a robust and reliable utility tractor, primarily designed for small-scale farming and utility applications. Equipped with a MWM D208-3 diesel engine, it sports a three-cylinder layout with a displacement of 136.3 cubic inches, which provides a power output of 40 horsepower at a rated 2100 RPM. This model is outfitted with a manual transmission offering 8 forward and 4 reverse gears, reinforcing its adaptability in various farming tasks. The manual steering and 2-wheel drive chassis facilitate maneuvering in diverse field conditions. The tractor's wheelbase of 77.56 inches and a weight of 4321 pounds ensure stability during operation. The Farmer 2E rides on standard “Ag” agricultural tires, with front tire dimensions of 6.00-16 and rear tire dimensions of 9.5-36, suitable for a range of agricultural activities. The tractor's dimensions and no-nonsense design underline its functionality in a variety of tasks, from tilling to transportation.
Show more...

Key Specifications

Power Output: 40

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4321

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D208-3
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
136.3
Bore (in)
3.74
Stroke (in)
4.133
Rated RPM
2100
Power Output (hp)
40

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
128.35
Width (in)
-
Height (in)
88.58
Operating Weight (lb)
4321

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
6
Rear Tire Diameter (in)
36
Rear Tire Width (in)
9.5
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
