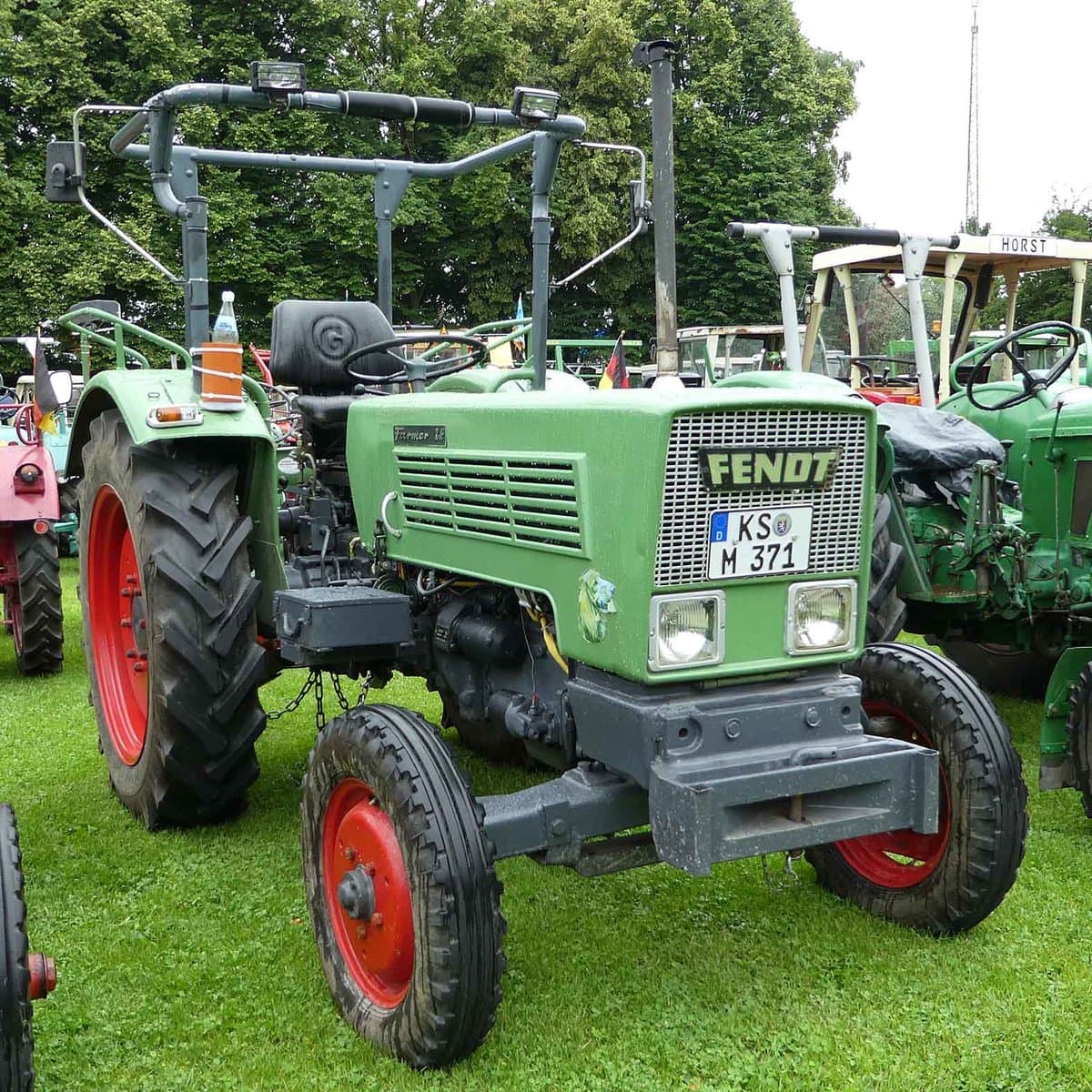

Fendt Farmer 2DE

Last Updated: June 2024

Overview

The Fendt Farmer 2DE is a utility tractor that harkens back to the mechanical age with its manual steering and manual transmission system. With a hardworking 2WD chassis, it delivers modest power from its 3-cylinder, liquid-cooled, diesel MWM D208-3 engine, which boasts a displacement of 136.3 cubic inches and outputs 40 horsepower at 2100 RPM. This tractor's mechanical powertrain is highlighted by an 8-speed forward and 4-speed reverse transmission, provided by ZF A-210. Its physical footprint is substantial for a tractor designed for utility work, having a length of 128.4 inches and a standing height of 84.7 inches, with an operating weight of 4013 lbs, which suggests a solid, stable machine capable of a variety of tasks. Originally outfitted with agricultural tires sized 5.50-16 for the front and 9.5-32 for the rear, the Farmer 2DE is characteristically robust and suited for a variety of farming tasks requiring durability and simplicity.
Show more...

Key Specifications

Category: Utility

Power Output: 40

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4013

Fuel Type: Diesel

Fendt Farmer 2DE vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Operating Weight
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D208-3
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
136.3
Bore (in)
3.74
Stroke (in)
4.133
Rated RPM
2100
Power Output (hp)
40

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
128.4
Width (in)
-
Height (in)
84.7
Operating Weight (lb)
4013

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
