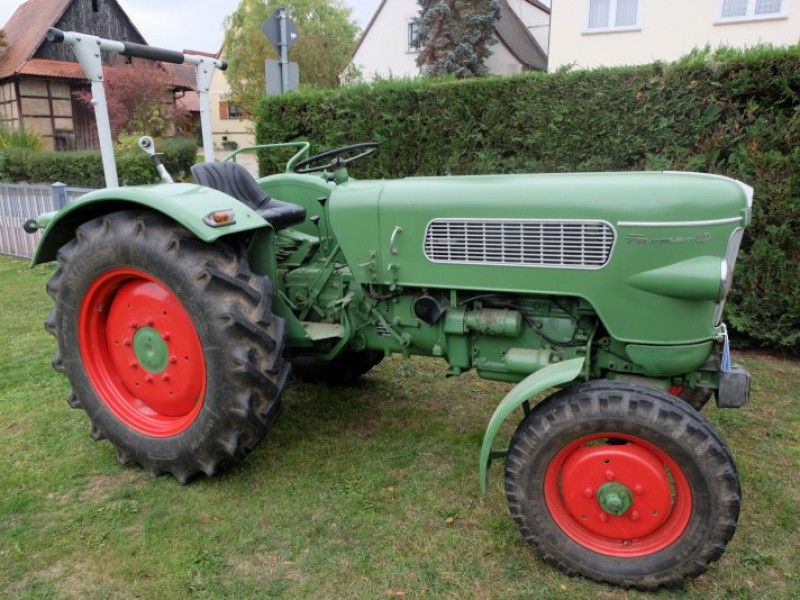

Fendt Farmer 2D

Last Updated: September 2024

Overview

The Fendt Farmer 2D is a compact utility tractor designed for small farms and light work. It has a 2-wheel drive system and a manual steering setup, making it easy to handle in tight spaces. The tractor comes with a manual transmission that offers 8 forward gears and 4 reverse gears, giving the operator good control over speed and power.

Under the hood, the Farmer 2D has a 3-cylinder diesel engine made by MWM. The engine is liquid-cooled and naturally aspirated, with a displacement of 122.7 cubic inches. It produces 30 horsepower at 2100 RPM, which is average for its size. The tractor weighs 4013 pounds and measures 128.4 inches long and 84.7 inches tall. It has an open operator station and runs on agricultural tires. The electric starter makes it easy to get the tractor running, even on cold mornings.
Show more...

Key Specifications

Category: Utility

Power Output: 30 hp (22.4 kW)

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4013 lb (1820 kg)

Fuel Type: Diesel

Fendt Farmer 2D vs. Similar Tractors

Power Output

The Power Output for the Fendt Farmer 2D is Below Average. It is greater than 24% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 3.1K+ tractors in our database)

Operating Weight

The Operating Weight for the Fendt Farmer 2D is Average. It is greater than 40% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 2.9K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Fendt Farmer 2D is Average. It is greater than 33% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Fendt Farmer 2D is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
MWM
Model
KD 10.5
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement
123 ci (2.0 L)
Bore
3.54 in (90.0 mm)
Stroke
4.13 in (105.0 mm)
Rated RPM
2100
Power Output
30 hp (22.4 kW)

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
4

Drivetrain

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
