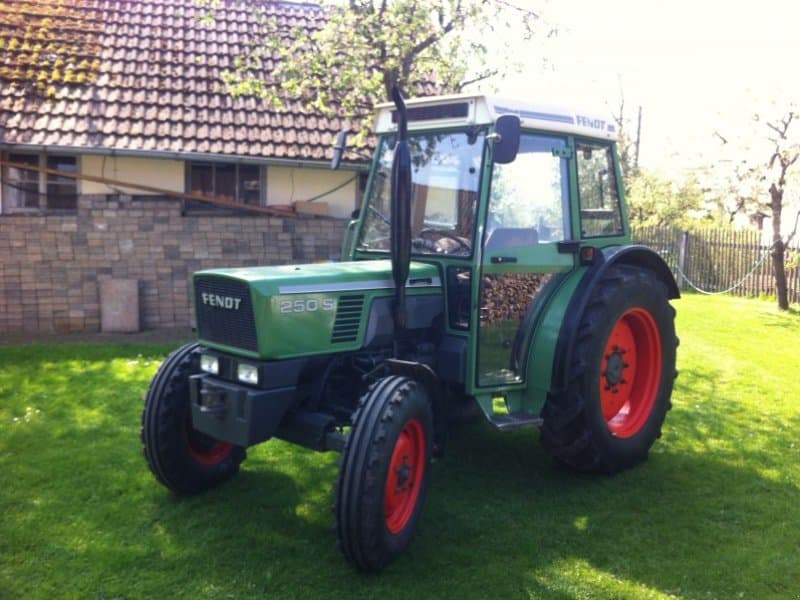

Fendt Farmer 250S

Last Updated: June 2024

Overview

The Fendt Farmer 250S is a 2WD row-crop tractor known for its robust capabilities and dependable performance. It is powered by a 49.3 horsepower KHD F3L912 diesel engine with direct injection, boasting a displacement of 172.5 cubic inches and a torque rating of 129.8 lb-ft at 1600 rpm. This engine's air-cooled system and three-cylinder configuration reflect its efficiency and simplicity. The tractor is equipped with a 21-speed shuttle transmission, providing a range of gearing options for various tasks. Designed with a wheelbase of 80.7 inches and a weight range of 5512 to 6063 pounds, the Farmer 250S demonstrates stability and adequate ground clearance, ensuring smooth operation in diverse field conditions. Additionally, standard agricultural tires offer reliable traction and durability. The power steering feature, combined with an electric starter, enhances the user experience by facilitating control and easy engine ignition.
Show more...

Key Specifications

Category: Row Crop

Power Output: 49.3

Transmission: Shuttle

Drive Type: 2WD

Operating Weight: 5512 to 6063 depending on configuration

Fuel Type: Diesel

Fendt Farmer 250S vs. Similar Tractors

Power Output
Poor
Greater than 5% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
KHD
Model
F3L912
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
3
Displacement (ci)
172.5
Bore (in)
3.937
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
49.3

Transmission

Type
Shuttle
Forward Gears
21
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
139.2
Width (in)
74
Height (in)
90.6
Operating Weight (lb)
5512 to 6063 depending on configuration

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
