Fendt Farmer 201S

Last Updated: June 2024

Overview

The Fendt Farmer 201S is a robust utility tractor that was in production from 1975 to 1982. The Farmer 201S comes with a hydrostatic power or mechanical steering system, and is powered by a 2.8 L three-cylinder KHD F3L912 air-cooled diesel engine, delivering 45 hp at 2000 rpm. With its gear type transmission featuring 13 forward and 4 reverse gears, the tractor provided ample range for a variety of tasks. It had an operating weight of 4443 lbs and featured a Category 3 hitch system with a lift capacity of 3396 lbs, although the exact hitch type is unspecified. Tire configurations were traditional for the era, with 7.50-16 size in the front and 12.4-32 size in the rear, suited for agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Gear type

Drive Type: 2WD

Operating Weight: 4443

Fuel Type: Diesel

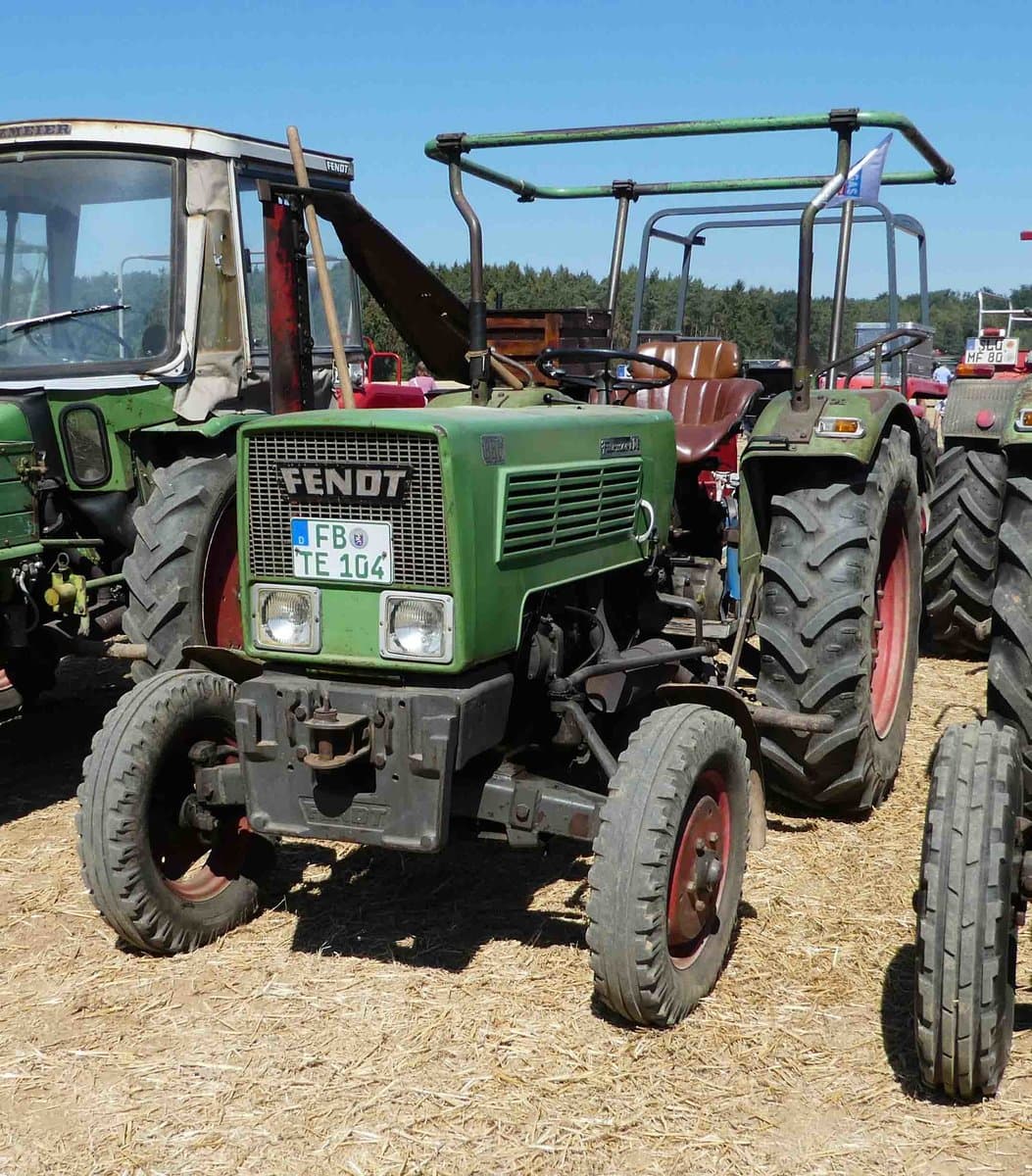

Image Gallery

Fendt Farmer 201S Tractor Fendt Farmer 201S Tractor Fendt Farmer 201S Tractor Fendt Farmer 201S Tractor Fendt Farmer 201S Tractor Fendt Farmer 201S Tractor

Fendt Farmer 201S vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Hitch Capacity
Average
Greater than 62% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
KHD
Model
F3L912
Cooling Type
Air-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
172.45
Bore (in)
3.937
Stroke (in)
4.72
Rated RPM
2000
Power Output (hp)
45

Transmission

Type
Gear type
Forward Gears
13
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
136.22
Width (in)
-
Height (in)
92.13
Operating Weight (lb)
4443

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power or mechanical (assumed based on availability)
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1982
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
3396 lbs
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
