Fendt Farmer 108S

Last Updated: June 2024

Overview

The Fendt Farmer 108S is a row-crop tractor known for its robust build and power-packed performance with a 73.8 horsepower diesel engine. The tractor is equipped with a liquid-cooled MWM D226-4 engine and has a displacement of 253.5 cubic inches. It features a power steering system for ease of handling and a synchronized transmission with 13 forward and 4 reverse gears to facilitate efficient fieldwork across a variety of conditions. The standard 2WD chassis ensures the tractor is suitable for row-crop work, and paired with standard agricultural tires, it can perform well in different types of terrain. The Farmer 108S combines a practical design with a length of 153.5 inches and a width of 79.1 inches to ensure maneuverability while being capable of heavy-duty tasks given its weight ranging from 6967 to 7804 pounds depending on the configuration.
Show more...

Key Specifications

Category: Row Crop

Power Output: 73.8

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 6967 (2WD), 7804 (4WD)

Fuel Type: Diesel

Image Gallery

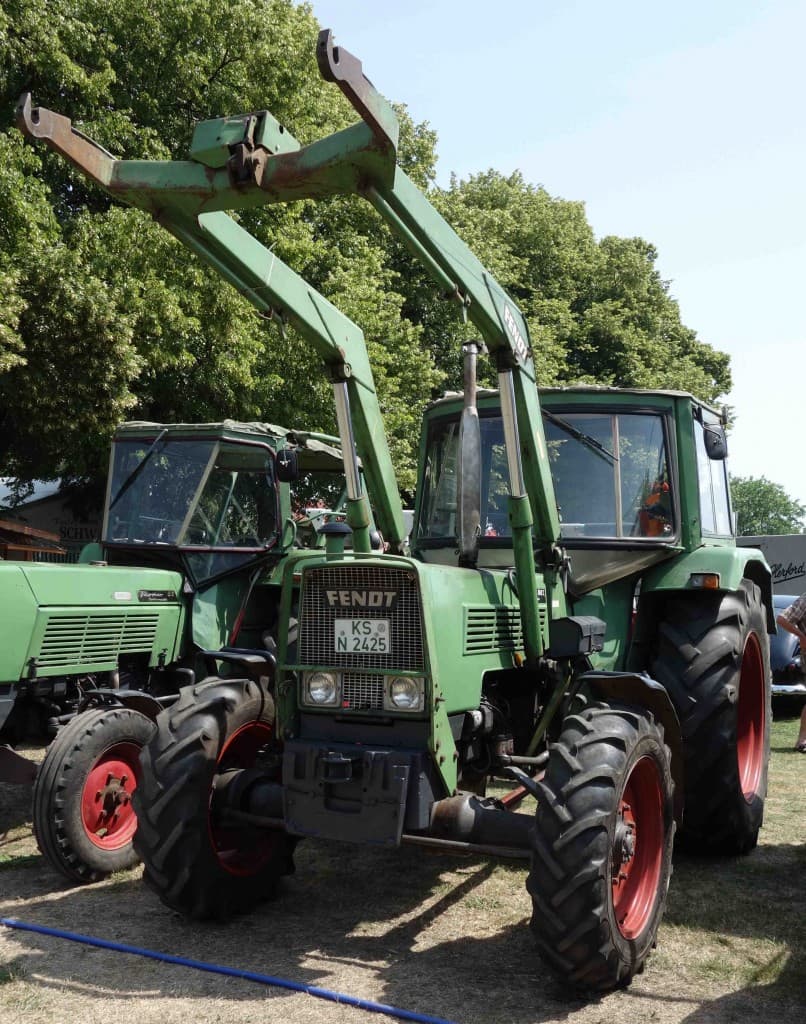

Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor Fendt Farmer 108S Tractor

Fendt Farmer 108S vs. Similar Tractors

Power Output
Poor
Greater than 9% of similar tractors.
Operating Weight
Above Average
Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
253.5
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
73.8

Transmission

Type
Synchronized
Forward Gears
13
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
153.5
Width (in)
79.1
Height (in)
97.6
Operating Weight (lb)
6967 (2WD), 7804 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
