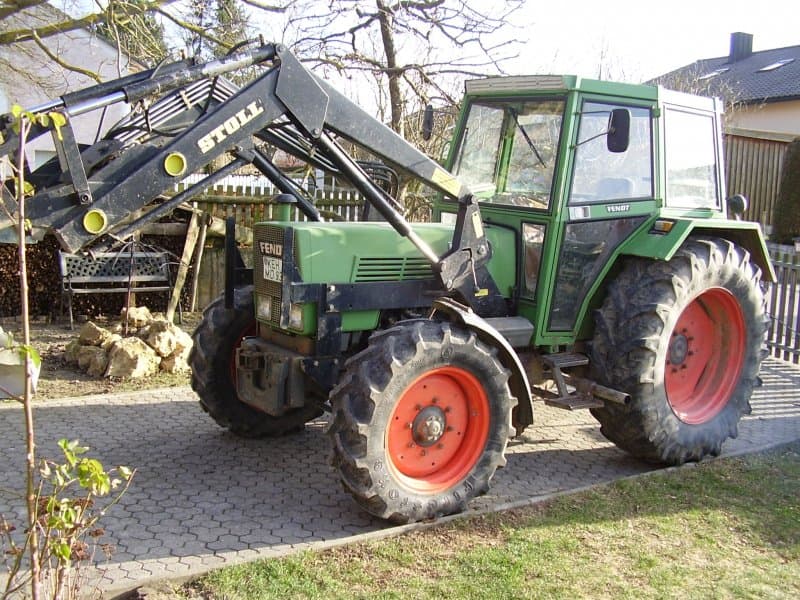

Fendt Farmer 108LS

Last Updated: June 2024

Overview

The Fendt Farmer 108LS is a row-crop tractor known for its robustness and versatility. Equipped with a powerful MWM D226-4 engine, the Farmer 108LS offers a 4-cylinder diesel engine with a displacement of 253.5 cubic inches and power output of 73.8 hp. It operates at a rated RPM of 2300 and features a liquid-cooled system to maintain optimal engine temperatures. The tractor supports both a synchronized and creeper transmission, allowing 13 forward and 4 reverse gears in its standard offering, and it expands to a total of 16 forward and 5 reverse gears with the creeper option. Steering is aided by a power system, enhancing maneuverability in the field. This particular model has a 4x2 2WD chassis configuration, which is complemented by standard agricultural tires. The Fendt Farmer 108LS offers an operating weight ranging from 7275 lbs in its 2WD variant up to 8113 lbs for the 4WD variant, displaying the tractor's ability to handle a variety of tasks with its significant weight capacity of 13228 lbs.
Show more...

Key Specifications

Category: Row Crop

Power Output: 73.8

Transmission: Synchronized/Creeper

Drive Type: 2WD

Operating Weight: 7275 (2WD) to 8113 (4WD)

Fuel Type: Diesel

Fendt Farmer 108LS vs. Similar Tractors

Power Output
Poor
Greater than 9% of similar tractors.
Operating Weight
Excellent
Greater than 97% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
4
Displacement (ci)
253.5
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
73.8

Transmission

Type
Synchronized/Creeper
Forward Gears
16
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
153.5
Width (in)
79.1
Height (in)
97.6
Operating Weight (lb)
7275 (2WD) to 8113 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
Unknown (assumed to be around 7.5 inches given "7.50-18" tire specification)
Rear Tire Diameter (in)
Unknown (assumed to be around 38 inches given "13.6/12-38" tire specification)
Rear Tire Width (in)
Unknown (assumed to be around 13.6 inches given "13.6/12-38" tire specification)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
