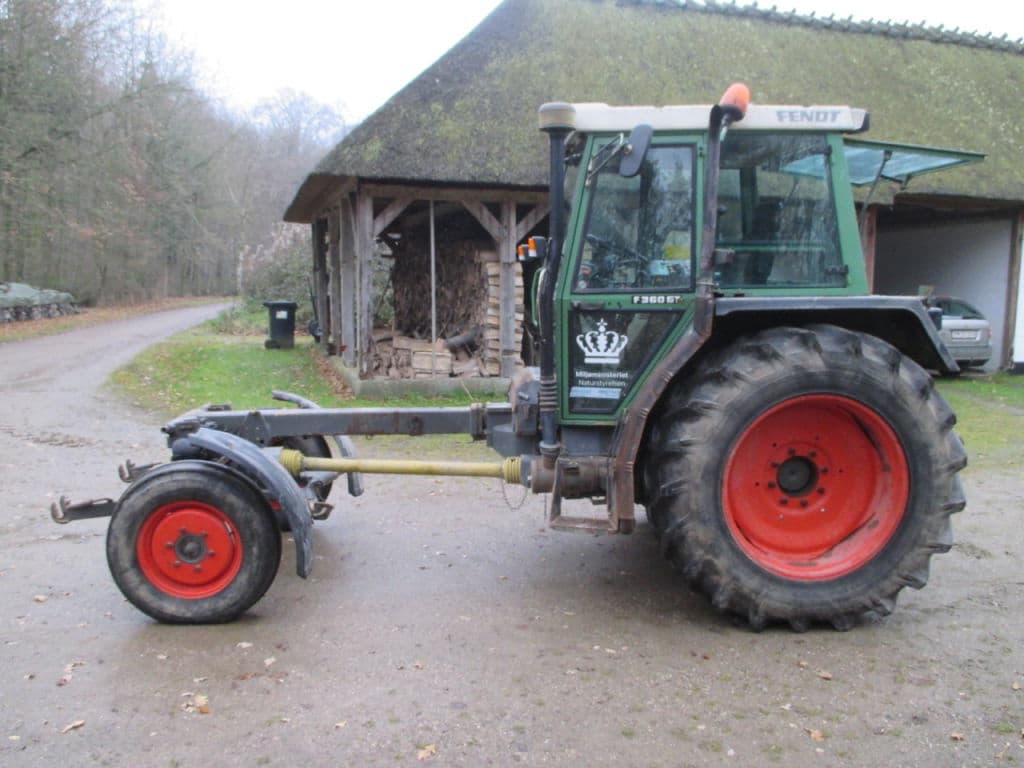

Fendt F380GH

Last Updated: June 2024

Overview

The Fendt F380GH is a tractor that is configured with a 4x2 (2WD) chassis, suggesting its use in various farming tasks that don't require four-wheel drive. It seems more suited for general farm work rather than heavy-duty applications that 4WD tractors typically undertake. With a 21-speed manual transmission, it offers a significant range of gear options that can accommodate different working conditions and tasks. Its KHD 4-cylinder diesel engine has a displacement of 249.33 ci, capable of delivering a power output of 80 hp at 2400 RPM, which is respectable for its category. The tractor's physical dimensions include a length of 187 inches and a height of 111 inches, with an operating weight starting at 8268 pounds, indicating that it's a relatively substantial machine, likely providing good stability and drawbar pull capability. This information points to a tractor that could serve well for tasks such as plowing, harrowing, and other activities that require dependable power and a decent range of speed selection.
Show more...

Key Specifications

Power Output: 80

Transmission: Manual

Drive Type: 2WD

Operating Weight: 8268

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
KHD
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
249.33
Bore (in)
4.0157
Stroke (in)
4.92
Rated RPM
2400
Power Output (hp)
80

Transmission

Type
Manual
Forward Gears
21
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
187
Width (in)
-
Height (in)
111
Operating Weight (lb)
8268

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
