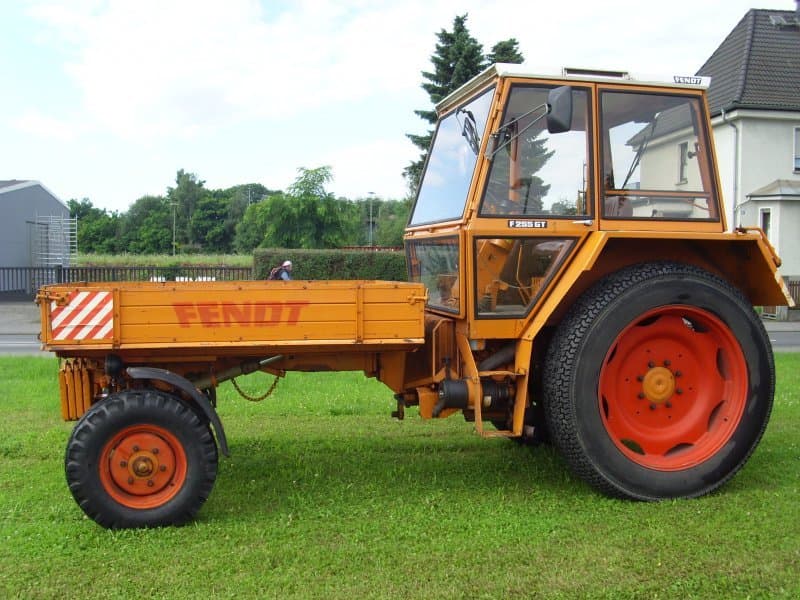

Fendt F255GT

Last Updated: June 2024

Overview

The Fendt F255GT is a tool carrier tractor, known for its versatile applications in agriculture. With a 2WD (4x2) chassis and power steering, this tractor provides ease of maneuverability and functional utility. It is powered by a KHD 3.8L 4-cylinder diesel engine, with a displacement of 229.92 cubic inches, producing 70 horsepower at a rated RPM of 2300. Direct injection fuel system and a 12-volt electric starter are among the key features of the engine. The transmission system is quite robust, featuring 14 forward gears with synchromesh and a creeper function that offers 20 forward and 6 reverse speeds. Structural dimensions of this tractor include a length of 182.6 inches, a width of 72.8 inches, and a height of 100.9 inches. The operating weight is marked at 7220 pounds. It rides on standard agricultural tires and benefits from a substantial ground clearance of 18.9 inches. Additional aspects such as weight distribution, wheelbase, and open center hydraulics contribute to its effectiveness in various agricultural tasks.
Show more...

Key Specifications

Category: Tool Carrier

Power Output: 70

Transmission: Synchromesh, Creeper

Drive Type: 2WD

Operating Weight: 7220

Fuel Type: Diesel

Fendt F255GT vs. Similar Tractors

Power Output
Average
Greater than 50% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
KHD (Klöckner-Humboldt-Deutz)
Model
3.8L 4-cyl diesel
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
229.92
Bore (in)
3.937
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
70

Transmission

Type
Synchromesh, Creeper
Forward Gears
20
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
182.6
Width (in)
72.8
Height (in)
100.9
Operating Weight (lb)
7220

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
