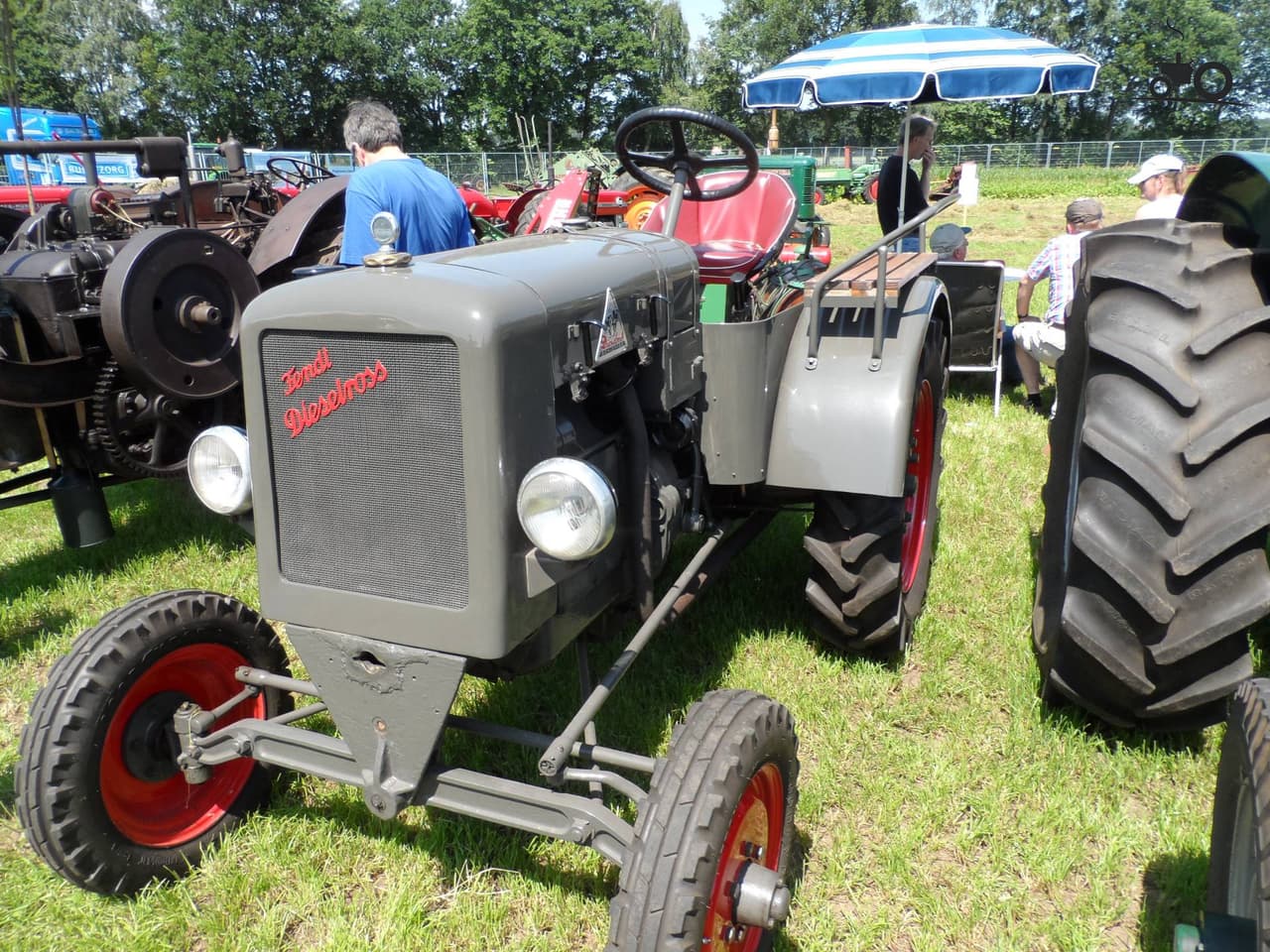

Fendt Dieselross F22

Last Updated: June 2024

Overview

The Fendt Dieselross F22 is a utility tractor characterized by its robust simplicity and functionality. With a 4x2 2WD chassis, the tractor is designed for general farming tasks and can maneuver with ease in various terrains. The transmission system of the Fendt Dieselross F22 is a simple gear type with 4 forward and 1 reverse gears, sufficient for a range of farm operations. Powered by a 22 horsepower Deutz F2M414 engine, the F22 offers reliable performance for its class, featuring a liquid-cooled, two-cylinder diesel setup. Displacement of the engine is 134.2 cubic inches with a bore and stroke of 3.94 and 5.51 inches respectively. Tire configurations include 5.25-16 front tires and 9.00-24 rear tires, geared towards agricultural use. While comprehensive details remain sparse, owners of the Dieselross F22 appreciate its steadfastness and straightforward maintenance, catering particularly to small and mid-size farm operations.
Show more...

Key Specifications

Category: Utility

Power Output: 22

Transmission: Gear

Drive Type: 2WD

Fuel Type: Diesel

Fendt Dieselross F22 vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
F2M414
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
134.2
Bore (in)
3.94
Stroke (in)
5.51
Rated RPM
-
Power Output (hp)
22

Transmission

Type
Gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
5.25
Rear Tire Diameter (in)
24
Rear Tire Width (in)
9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
