Fendt 943 Vario MT

Last Updated: June 2024

Overview

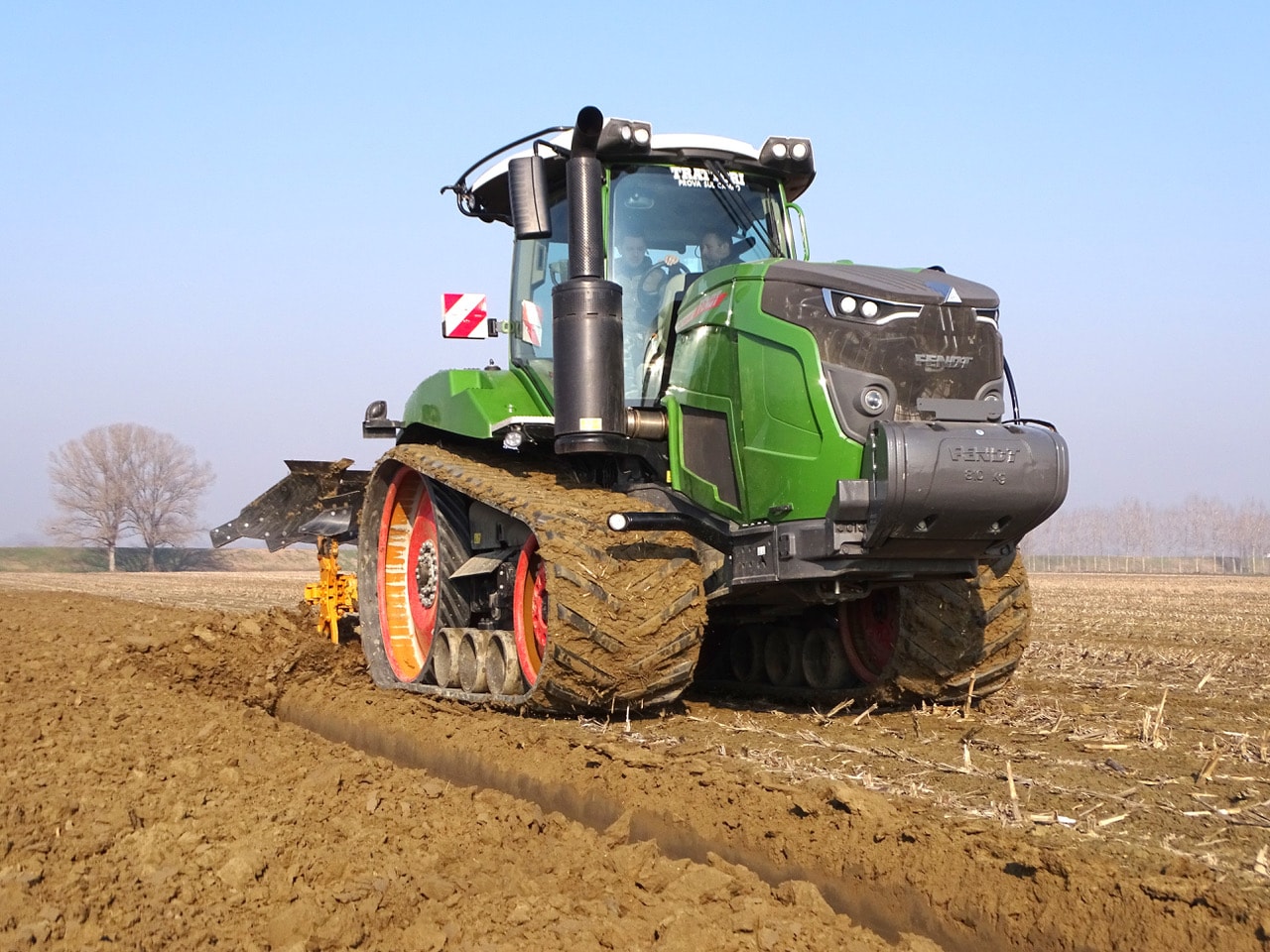

The Fendt 943 Vario MT is a powerful track tractor designed for heavy-duty farm work. Its heart is a robust AGCO Power 7-cylinder, 598 cubic inch, liquid-cooled, turbocharged diesel engine producing up to 425.1 horsepower at a rated RPM of 1450, delivering significant torque of 1416 lb-ft at the same RPMs. Compliance with Tier IV emissions standards ensures it meets necessary environmental regulations. The Vario ML400T transmission is a continuously-variable transmission (CVT) providing infinite forward and reverse gears, enabling seamless speed adjustments for optimal efficiency. The track tractor rests on a wheelbase of 101 inches, accommodating a range of widths and gauge settings for versatile field demands. With a maximum drawbar pull of 8000 lbs and lifting capacities of up to 41000 lbs, the Fendt 943 Vario MT is built to handle substantial loads and tough conditions. The operator station is a full cab, offering comfort and protection for extended work periods. Additional chassis details or specifics about the track system are not provided. With tiered emissions capabilities and advanced hydraulic systems, the Fendt 943 Vario MT blend's power with precision, suited for modern, sophisticated agricultural operations.
Show more...

Key Specifications

Category: Crawler

Power Output: 425.1

Transmission: Continuously-variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 33443 to 33667

Fuel Type: Diesel

Fendt 943 Vario MT vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Operating Weight
Excellent
Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
7
Displacement (ci)
598
Bore (in)
4.37
Stroke (in)
5.71
Rated RPM
1450
Power Output (hp)
425.1

Transmission

Type
Continuously-variable transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
241.1
Width (in)
98.5
Height (in)
137.6 (cab), 133.9 (exhaust)
Operating Weight (lb)
33443 to 33667

Power Take-Off (PTO)

PTO Type
1000/1000E (1.75)
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
IVN/III (interpreted as Category IVN and III)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed center
