Fendt 942 Vario

Last Updated: June 2024

Overview

The Fendt 942 Vario is a high-performance row-crop tractor that boasts a powerful MAN D1556 LE 521 turbocharged intercooled diesel engine. With a rating of 415 horsepower at 1700 RPM, and torque peaking at 1453 lb-ft, it is designed to handle a wide range of demanding agricultural tasks. Featuring a sophisticated continuously variable transmission (CVT) known as the Vario TA300, this tractor provides infinite gear ratios for precise speed control. The 4-wheel drive (4WD) system contributes to optimal traction on diverse terrains, while the power steering ensures easy maneuverability. Fendt has equipped the 942 Vario with category 3 hitch and a considerable lift capacity of 44092 lbs, making it suitable for heavy-duty implements. The tractor's operating weight stands at 25,970 lbs, and the wheelbase of 124 inches indicates a stable platform for various operations.

Key Specifications

Category: Row Crop

Power Output: 415

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 25970

Fuel Type: Diesel

Image Gallery

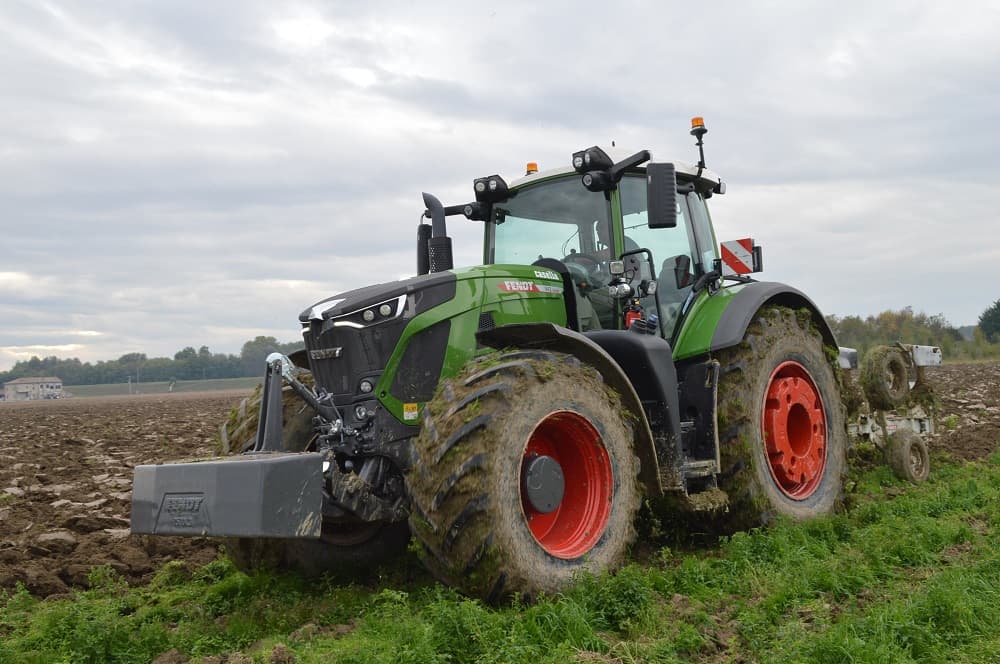

Fendt 942 Vario Tractor

Fendt 942 Vario vs. Similar Tractors

Power Output

Excellent

Greater than 93% of similar tractors.

Hitch Capacity

Above Average

Greater than 87% of similar tractors.

Operating Weight

Above Average

Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer: MAN
Model: D1556 LE 521
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 6
Displacement (ci): 551.5
Bore (in): 4.53
Stroke (in): 5.71
Rated RPM: 1700
Power Output (hp): 415

Transmission

Type: Continuously Variable Transmission (CVT)
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 219.5
Width (in): 108.3
Height (in): 133.3
Operating Weight (lb): 25970

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: III/IVN
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): 44092 lbs
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center
