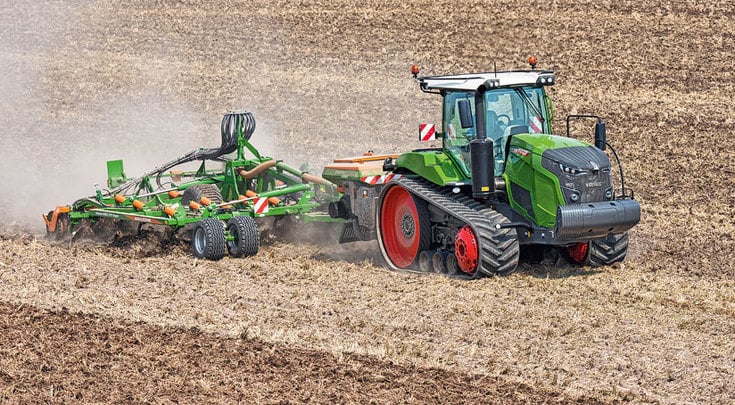

Fendt 938 Vario MT

Last Updated: June 2024

Overview

The Fendt 938 Vario MT is equipped with an AGCO Power 7-cylinder, turbocharged, liquid-cooled diesel engine with a displacement of 598 ci, producing a rated power of 374 hp at 1450 RPM and a peak torque of 1252 lb-ft at the same RPMs. It features a continuously-variable transmission, Vario ML400T, with infinite forward and reverse gears for a range of speeds and excellent control. The tractor has an operating weight of 33443 to 33667 pounds, with dimensions that stretch to 241.1 inches in length and 98.5 inches in width. Its cab height reaches 137.6 inches with an exhaust stack height of 133.9 inches. Notably, this tractor boasts a hitch lift capacity of 41,000 lbs and uses a closed-center hydraulic system. The comprehensive spec profile of the Fendt 938 Vario MT showcases its capabilities for heavy-duty operations and farm management.
Show more...

Key Specifications

Power Output: 374

Transmission: continuously-variable transmission

Operating Weight: 33443 to 33667

Fuel Type: diesel

Lift Capacity: 41000 lbs

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
7
Displacement (ci)
598
Bore (in)
4.37
Stroke (in)
5.71
Rated RPM
1450
Power Output (hp)
374

Transmission

Type
continuously-variable transmission
Forward Gears
infinite
Reverse Gears
infinite
Total Gears
-

Dimensions

Length (in)
241.1
Width (in)
98.5
Height (in)
137.6 (cab), 133.9 (exhaust)
Operating Weight (lb)
33443 to 33667

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
IVN/III
Hitch Position
Rear
Hitch Capacity (lb)
41000 lbs
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
closed center
