Fendt 936

Last Updated: July 2024

Overview

The Fendt 936 is a powerful agricultural tractor equipped with a 6-cylinder, turbocharged and intercooled MAN Diesel engine. It features a large 551 cubic inch displacement and produces a rated power of 314.6 hp at 1700 RPM. The stepless Vario CVT transmission provides seamless operation. With an operating weight of 28,375 lbs, it can handle heavy loads. Key performance metrics include a maximum torque rise of 21.5%, hydraulic pump flow up to 104.1 GPM, and a top speed of 37 mph. The PTO is rated for 314.6 hp. The tractor has ample ground clearance and fuel capacity for extended operation.

Key Specifications

Power Output: Rated Power: 314.6, Net Power: 317.0

Transmission: CVT (stepless Vario with a combination of mechanical and hydrostatic sections)

Operating Weight: 28375.0

Image Gallery

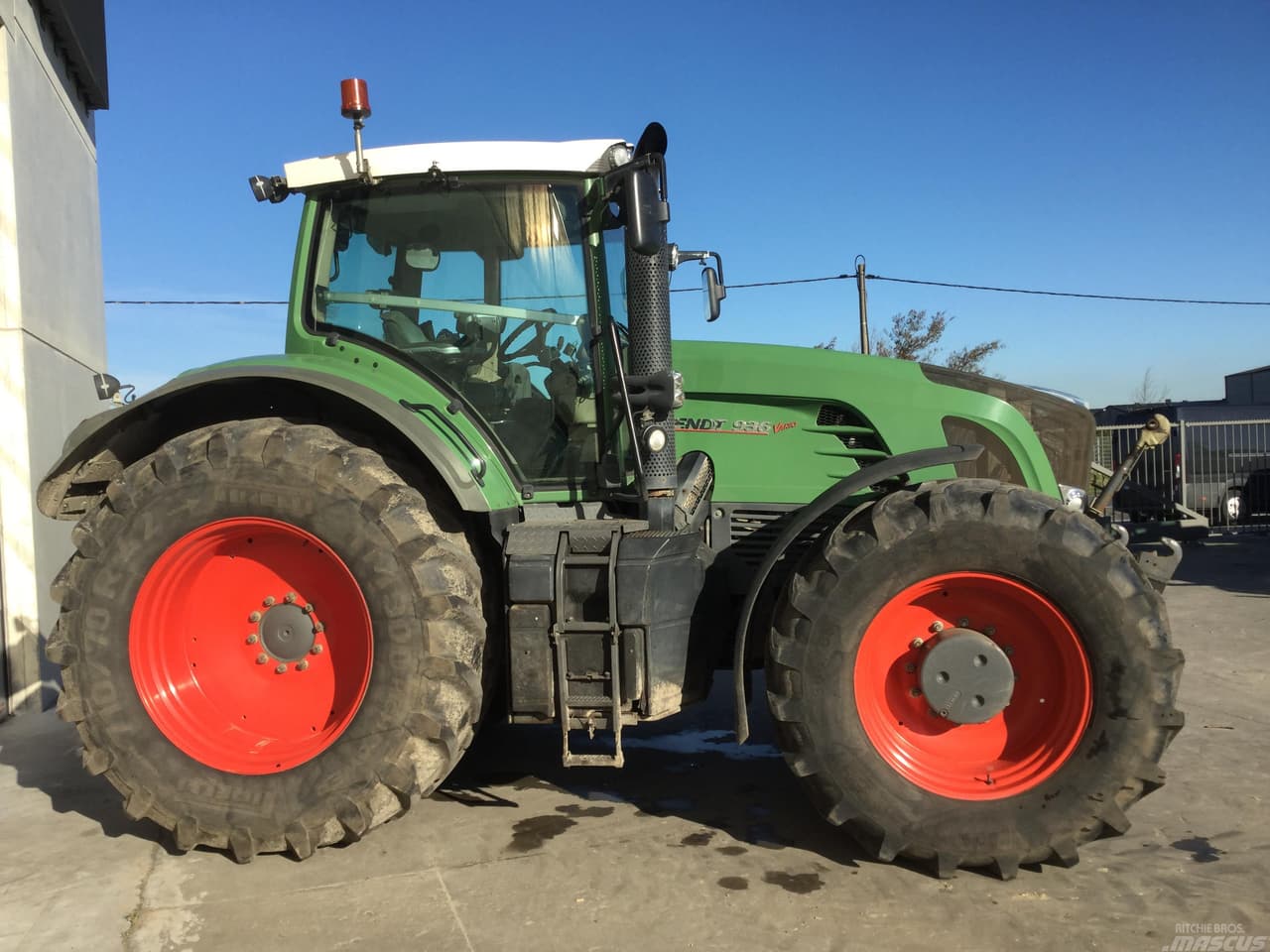

Fendt 936 Tractor

Technical Specifications

Engine

Manufacturer: -
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: Turbocharged and intercooled
Cylinders: 6
Displacement (ci): 551.0
Bore (in): 4.528
Stroke (in): 5.709
Rated RPM: 1700
Power Output (hp): Rated Power: 314.6, Net Power: 317.0

Transmission

Type: CVT (stepless Vario with a combination of mechanical and hydrostatic sections)
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): -
Width (in): Outside Frame: 109.2 (Chassis width inferred)
Height (in): 130.8
Operating Weight (lb): 28375.0

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 4.7 KW Electric Starter
Brake Type: -
Hydraulic System Type: -

Test Results

Nebraska Tractor Test Laboratory - Test Date: September to December 2019

Maximum Power and Fuel Consumption

Rated Engine Speed (PTO speed—1060 rpm): 314.6 HP (234.6 kW) at 1700 rpm
Fuel Consumption at Rated Speed: 15.73 Gal/hr (59.54 l/h) with a fuel efficiency of 0.350 lb/hp.hr (0.213 kg/kW.h)
DEF Consumption at Rated Speed: 1.57 Gal/hr (5.95 l/h)

Drawbar Performance

Power at Rated Engine Speed (Speed setting 9): 275.2 HP (205.2 kW) with a drawbar pull of 18600 lbs (82.74 kN), a speed of 5.55 mph (8.93 km/h), and 2.3% slip
Fuel Consumption at Rated Speed: 0.406 lb/hp.hr (0.247 kg/kW.h) with a fuel efficiency of 17.36 Hp.hr/gal (3.42 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1182 lb.-ft. (1602 Nm) at 1100 rpm
Torque Rise: 21.5%
Power Increase at 1500 Engine RPM: 0.5%

Hydraulic Performance

Maximum Force Exerted through Whole Range: 18635 lbs (82.9 kN) at 24" (610 mm) behind hitch points, 19380 lbs (86.2 kN) at ball ends
Pump Delivery Rate at Minimum Pressure: 104.1 GPM (394.0 l/min) at minimum pressure
Hydraulic Power: 131.9 HP (98.3 kW) at delivery pressure of 2325 psi (160 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 20.35 Hp.hr/gal (4.01 kW.h/l)
Fuel Consumption: 15.57 Gal/hr (58.95 l/h) at 1604 rpm

NTTL.(2020). OECD tractor test 3196 for Fendt 936 Gen 6 Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
