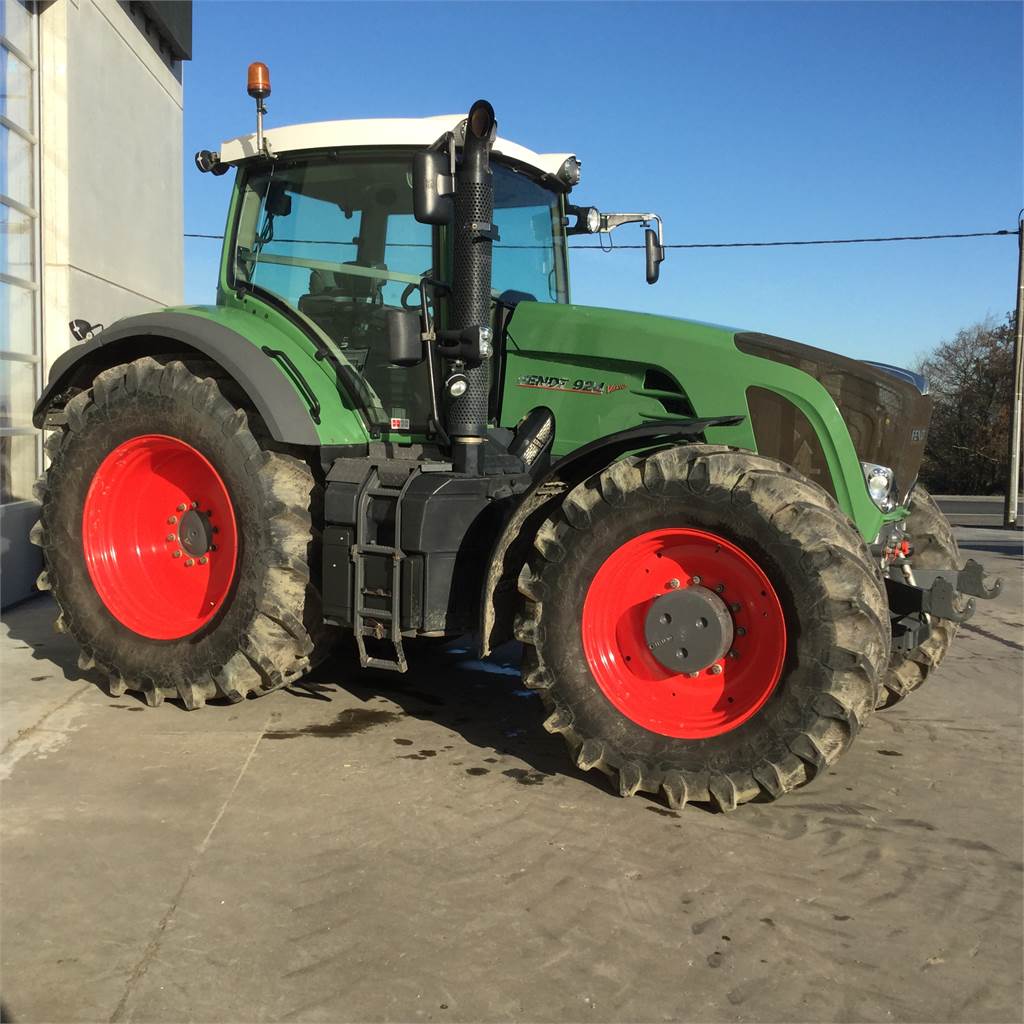

Fendt 924 Vario

Last Updated: June 2024

Overview

The Fendt 924 Vario is a robust row-crop tractor engineered to deliver high performance and efficiency for a range of agricultural tasks. From its MAN D0836 engine, which is a turbocharged intercooled diesel with six cylinders offering a power output of 240 hp (rated) to 253 hp (maximum), to its innovative continuously-variable transmission (CVT), the 924 Vario is designed for productivity and versatility. The liquid cooling system and the impressive torque peaking at 771 lb-ft ensure the tractor operates optimally under various conditions. The tractor's chassis is a 4x4 MFWD 4WD setup, providing excellent traction and maneuverability on different terrains, making it suitable for diverse farming needs. It has a large operating weight of 19,401 lbs, indicating its capacity to handle heavy-duty operations. With a Category 3 hitch and an impressive rear hitch lift capacity of 30,865 lbs, the 924 Vario can tow and operate large implements comfortably.
Show more...

Key Specifications

Category: Row Crop

Power Output: 240 (Rated), 253 (Maximum)

Transmission: Continuously variable transmission (CVT)

Drive Type: MFWD

Operating Weight: 19401

Fuel Type: Diesel

Fendt 924 Vario vs. Similar Tractors

Power Output
Above Average
Greater than 81% of similar tractors.
Hitch Capacity
Above Average
Greater than 86% of similar tractors.
Operating Weight
Average
Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer
MAN
Model
D0836
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
419.2
Bore (in)
4.25
Stroke (in)
4.92
Rated RPM
2250
Power Output (hp)
240 (Rated), 253 (Maximum)

Transmission

Type
Continuously variable transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
Infinite

Dimensions

Length (in)
194.5
Width (in)
101.6
Height (in)
122.4
Operating Weight (lb)
19401

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
30865 (rear capacity)
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load Sensing
