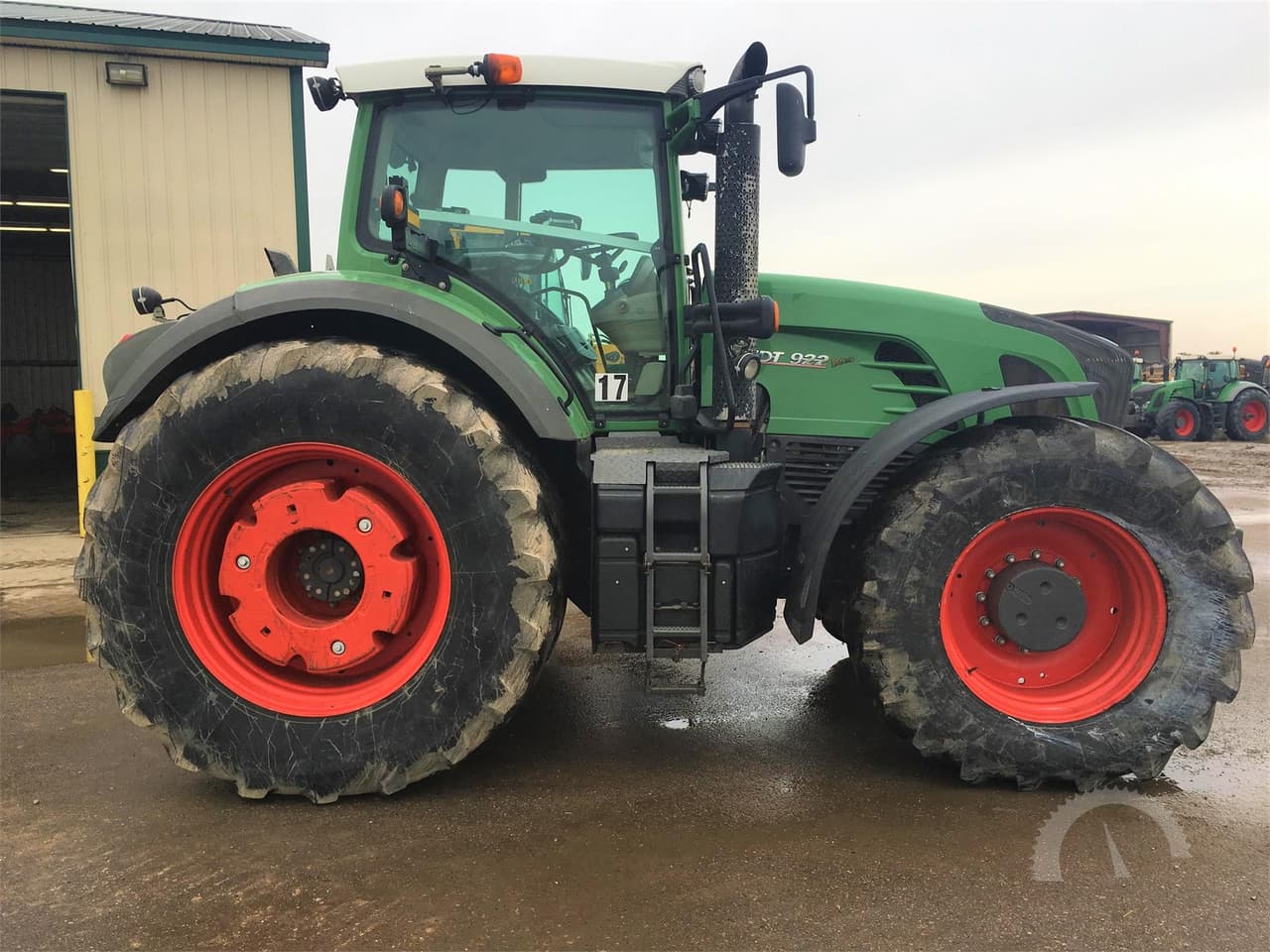

Fendt 922 Vario

Last Updated: June 2024

Overview

The Fendt 922 Vario is a row-crop tractor designed to meet the demanding requirements of modern farming. It features a 4x4 MFWD 4WD chassis for improved traction and stability across various terrains. This model incorporates a powerful Deutz 2013 L06 4V engine, with a liquid-cooled and intercooled turbocharged diesel system. The engine sports a 6-cylinder, 24-valve configuration, displacing 435.8 cubic inches and capable of delivering power ranging from 190 to 227 horsepower, depending on the rating standard referenced. Paired with the engine is a Fendt Vario continuous variable transmission (CVT), enhancing the tractor's efficiency with infinite gear ratios for both forward and reverse movements. The 922 Vario maintains an operating weight of 22220 lbs and has a hefty maximum hitch lift capacity of 33,000 lbs, indicative of its heavy-duty application capabilities. With dimensions stretching to 222.6 inches in length and 108.3 inches in width, it's built to handle extensive agricultural tasks without compromising maneuverability.
Show more...

Key Specifications

Category: Row Crop

Power Output: Rated Power (ECE R24): 190 | Rated Power (EC 97/98): 215 | Maximum Power (ECE R24): 220 | Maximum Power (EC 97/68): 227

Transmission: Continously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 22220

Fuel Type: Diesel

Fendt 922 Vario vs. Similar Tractors

Power Output
Excellent
Greater than 100% of similar tractors.
Hitch Capacity
Average
Greater than 31% of similar tractors.
Operating Weight
Above Average
Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
2013 L06 4V
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
435.8
Bore (in)
4.25
Stroke (in)
5.12
Rated RPM
2200
Power Output (hp)
Rated Power (ECE R24): 190 | Rated Power (EC 97/98): 215 | Maximum Power (ECE R24): 220 | Maximum Power (EC 97/68): 227

Transmission

Type
Continously variable transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
222.6
Width (in)
108.3
Height (in)
130.8
Operating Weight (lb)
22220

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type IV (assumed based on Rear Type data)
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
Maximum 33,000 lbs (assumed based on Max capacity data)
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Load sensing
