Fendt 826 Vario

Last Updated: June 2024

Overview

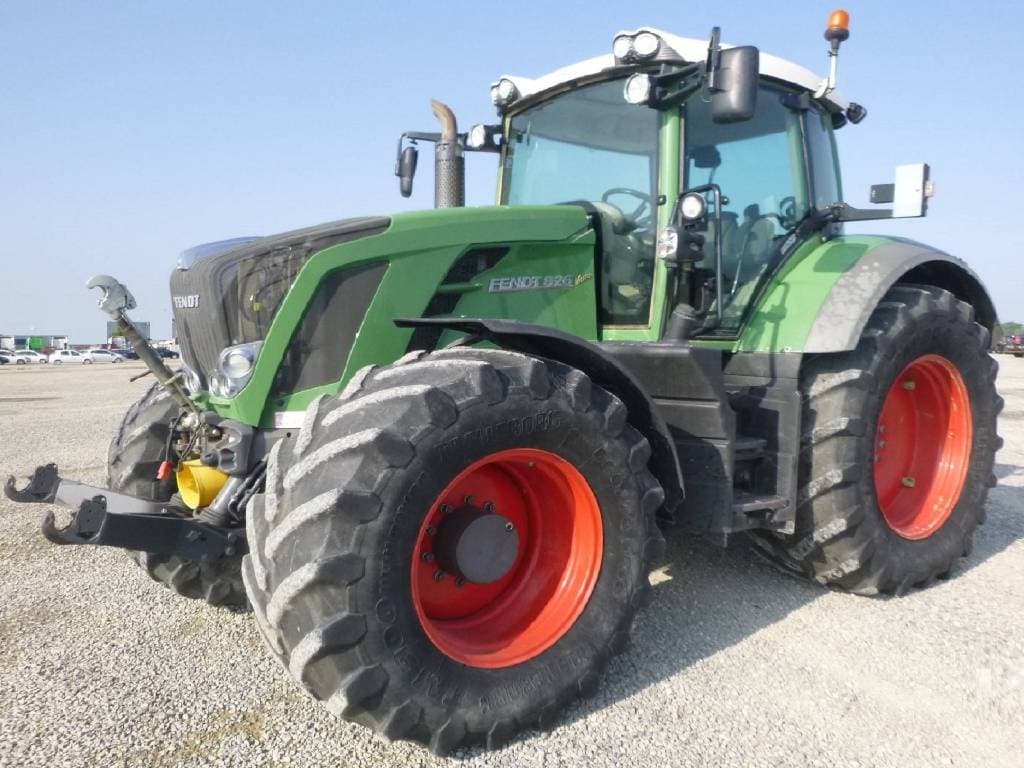

The Fendt 826 Vario is a high-performance agricultural tractor known for its advanced transmission and engine capabilities. The tractor is powered by a 6.1 L, turbocharged intercooled Deutz diesel engine with a displacement of 369.6 cubic inches, which provides a substantial power output. Depending on the power metric, it ranges from 240 hp (ECE R24) to up to 265 hp (EC 97/68). The rated RPM for the engine is 2100, with peak torque reaching 826.1 lb-ft at 1450 RPM. This tractor utilizes Fendt's Vario continuously variable transmission (IVT), allowing for infinite gear ratios within two ranges for both forward and reverse motion, providing unparalleled control and efficiency in various agricultural tasks. The tractor sits on a chassis with 4x4 MFWD 4WD and standard agricultural tires measuring 540/65R34 in the front and 650/85R38 in the rear. The tractor dimensions suggest a robust and stable presence in the field, with a length of 207.6 inches, a width of 100.4 inches, and a height of 128.7 inches. It boasts a substantial operating weight of 20,830 lbs, enhancing traction and performance.
Show more...

Key Specifications

Power Output: Highest is 265 hp according to EC 97/68

Transmission: IVT

Drive Type: 4WD

Operating Weight: 20,830

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
369.6
Bore (in)
3.976
Stroke (in)
4.961
Rated RPM
2100
Power Output (hp)
Highest is 265 hp according to EC 97/68

Transmission

Type
IVT
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
207.6
Width (in)
100.4
Height (in)
128.7
Operating Weight (lb)
20,830

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
34
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (assumed from "Engine - Starter power" specification)
Brake Type
-
Hydraulic System Type
-
