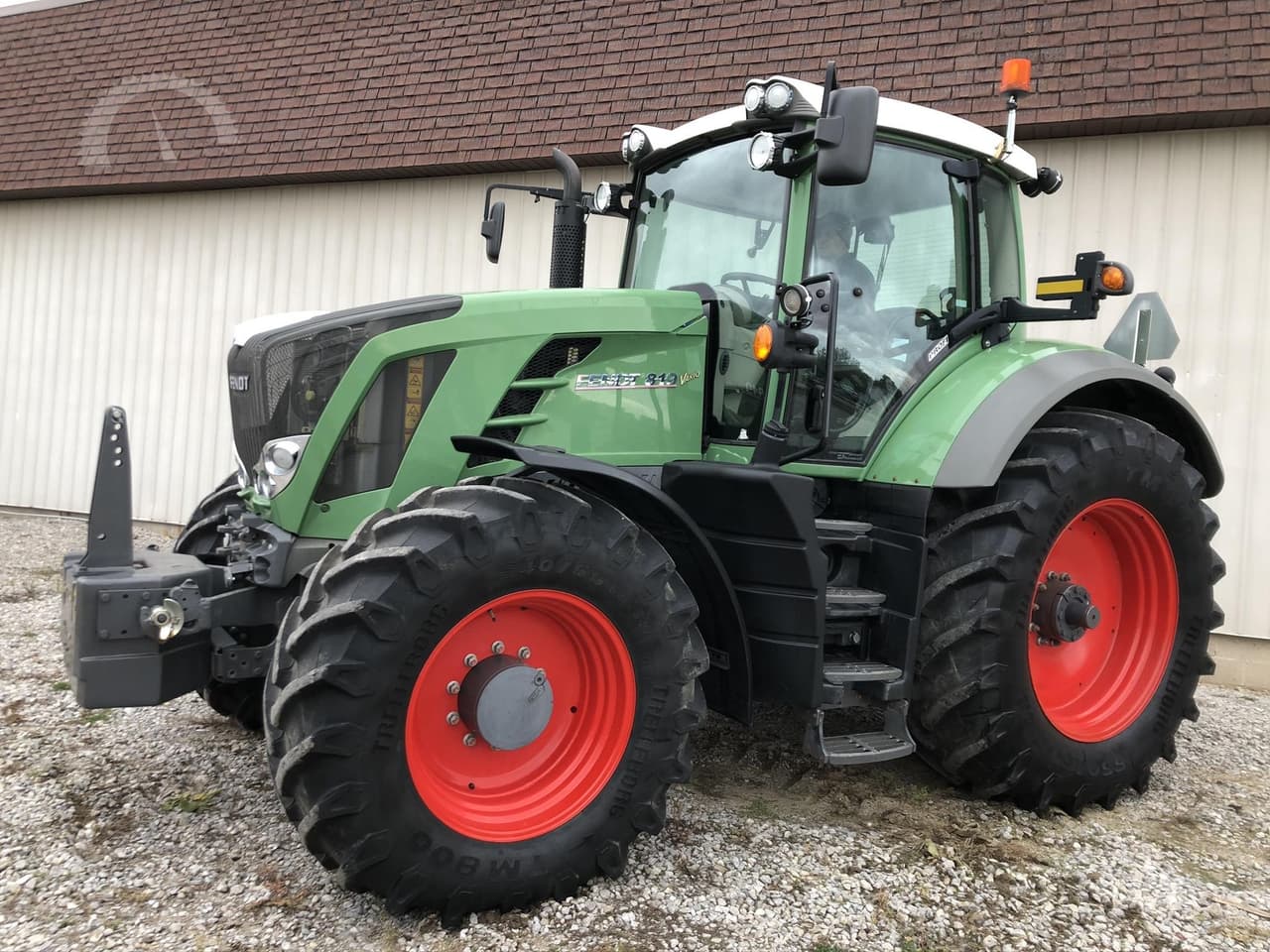

Fendt 819 Vario

Last Updated: June 2024

Overview

The Fendt 819 Vario is a powerful and versatile tractor, designed to meet the heavy-duty requirements of modern agriculture. It features a 6-cylinder, 24-valve, turbocharged intercooled Deutz diesel engine, with a displacement of 369.6 ci, offering up to 196 horsepower depending on the rating system applied. This engine provides immense torque of 636.5 lb-ft at a low RPM of 1450, optimized for fuel efficiency and performance. The tractor is equipped with a continuously variable transmission (IVT) that allows for infinite forward and reverse gears. This advanced transmission system, alongside the 4x4 MFWD 4WD chassis, ensures the 819 Vario is capable of handling a wide range of tasks with ease and precision. It has an operating weight of 20,500 lbs and is specified with standard agricultural radial tires with the option for different sizes, such as 540/65R34 front tires and 650/85R38 rear tires, enhancing its adaptability to various working conditions. With dimensions measuring 207.6 inches in length, 100.4 inches in width, and 128.7 inches in height, the 819 Vario maintains a noticeable presence in the field, while a ground clearance of 20.2 inches allows for good maneuverability over uneven terrain. The standard tire setup is a radial type, indicating an emphasis on comfort and durability in the field.
Show more...

Key Specifications

Power Output: 196 (EC 97/98); 180 (ECE R24); Assumed used is 196 hp

Transmission: Continuously Variable Transmission (IVT)

Drive Type: 4WD

Operating Weight: 20,500

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
369.6
Bore (in)
3.976
Stroke (in)
4.961
Rated RPM
2100
Power Output (hp)
196 (EC 97/98); 180 (ECE R24); Assumed used is 196 hp

Transmission

Type
Continuously Variable Transmission (IVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
Infinite (2-range) forward and reverse

Dimensions

Length (in)
207.6
Width (in)
100.4
Height (in)
128.7
Operating Weight (lb)
20,500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Radial; Optional sizes available
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (assumption based on starter power spec)
Brake Type
-
Hydraulic System Type
-
