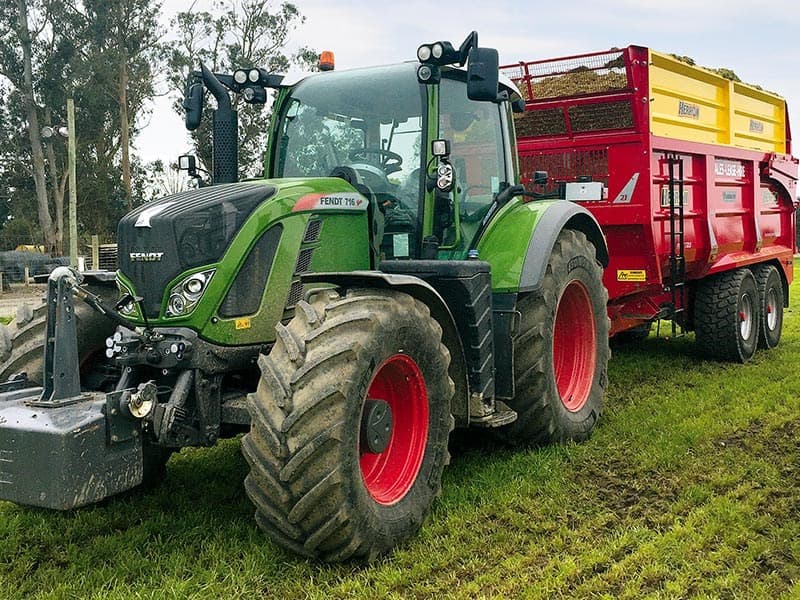

Fendt 716 Vario

Last Updated: June 2024

Overview

The Fendt 716 Vario is a powerful tractor that is suited for a range of agricultural tasks, thanks to its advanced Deutz TCD 2012 L06 4V engine with an emissions level of Tier IIIa. The engine offers a diesel, 6-cylinder, 24-valve configuration that is both turbocharged and intercooled. It provides a liquid-cooling system to maintain optimal operation temperatures. There are multiple power outputs provided for this model depending on the rating standard, with the power output ranging from 150 hp (ECE R24) to 167 hp (EC 97/98). The Fendt Vario transmission offers infinite forward and reverse gears across two ranges, indicating a highly adaptable continuously variable transmission (IVT) system. The tractor's operational weight is 14,560 lbs, and it has significant dimensions, stretching 183.8 inches in length, 101.2 inches in width, and 118.1 inches in height. It also comes with a load-sensing hydraulic system and features an emissions control system utilizing Exhaust Gas Recirculation (EGR).
Show more...

Key Specifications

Power Output: 167 (EC 97/98 standard) or 150 (ECE R24 standard)

Transmission: Continuously Variable Transmission (IVT)

Operating Weight: 14,560

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Deutz
Model
TCD 2012 L06 4V
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
369.6
Bore (in)
3.976
Stroke (in)
4.961
Rated RPM
2100
Power Output (hp)
167 (EC 97/98 standard) or 150 (ECE R24 standard)

Transmission

Type
Continuously Variable Transmission (IVT)
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
Infinite (2-range)

Dimensions

Length (in)
183.8
Width (in)
101.2
Height (in)
118.1
Operating Weight (lb)
14,560

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Category III/II)
Hitch Category
Unknown (Assumed Category 3 based on "III/II")
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load Sensing
